Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 201-225 >> 203

View 201-225: 203

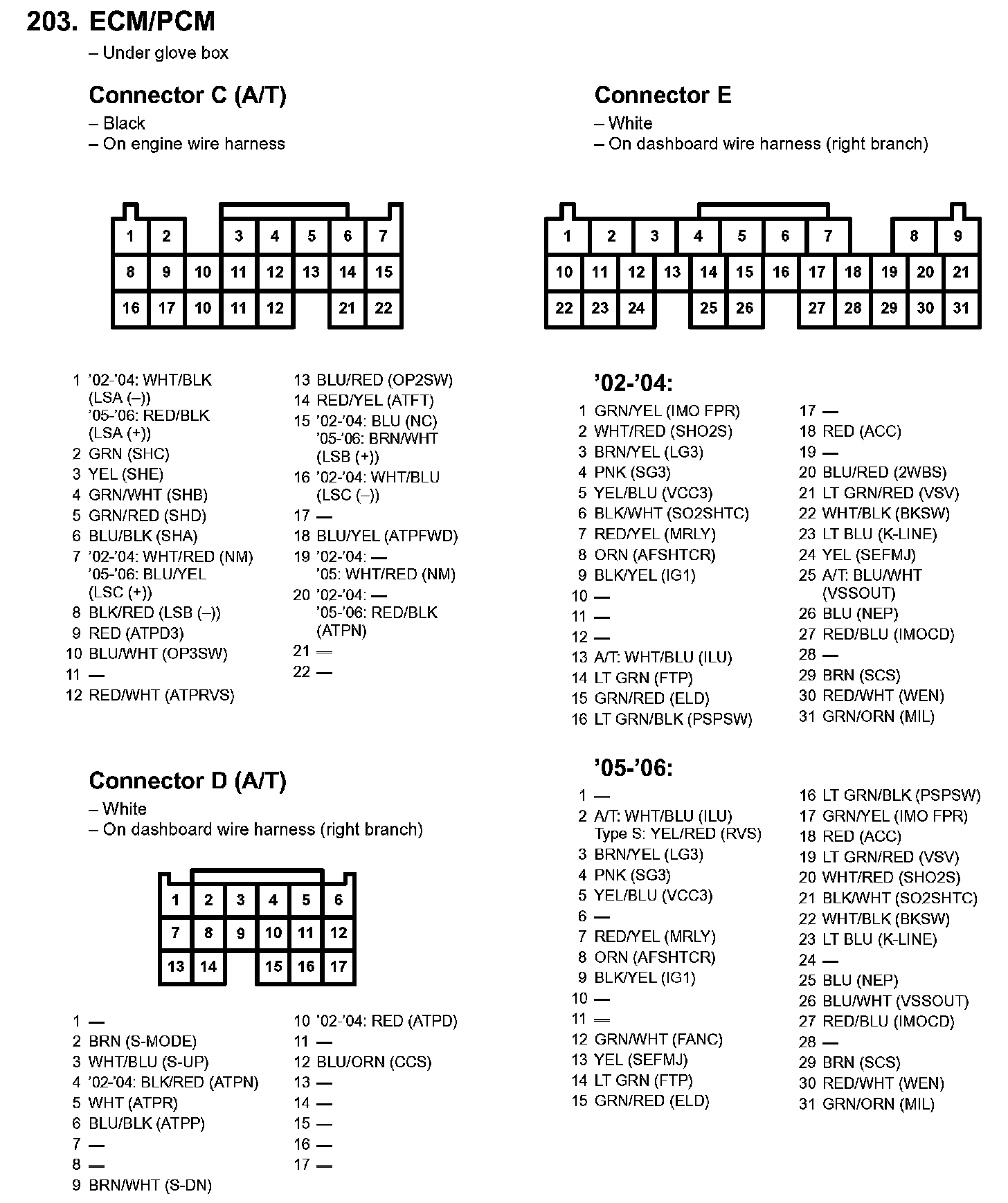

203. ECM/PCM:

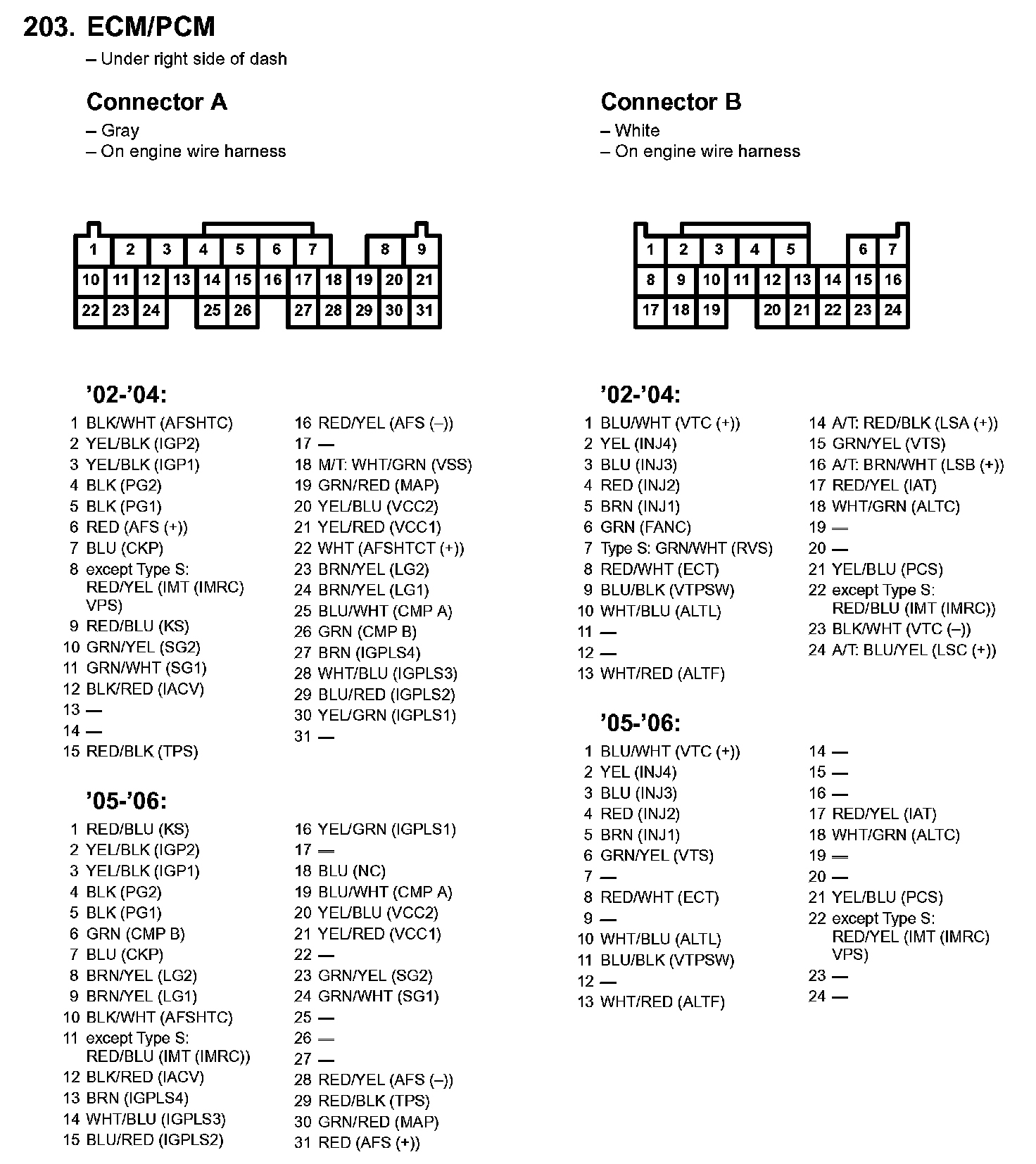

203. ECM/PCM:
