Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 176-200 >> 193

View 176-200: 193

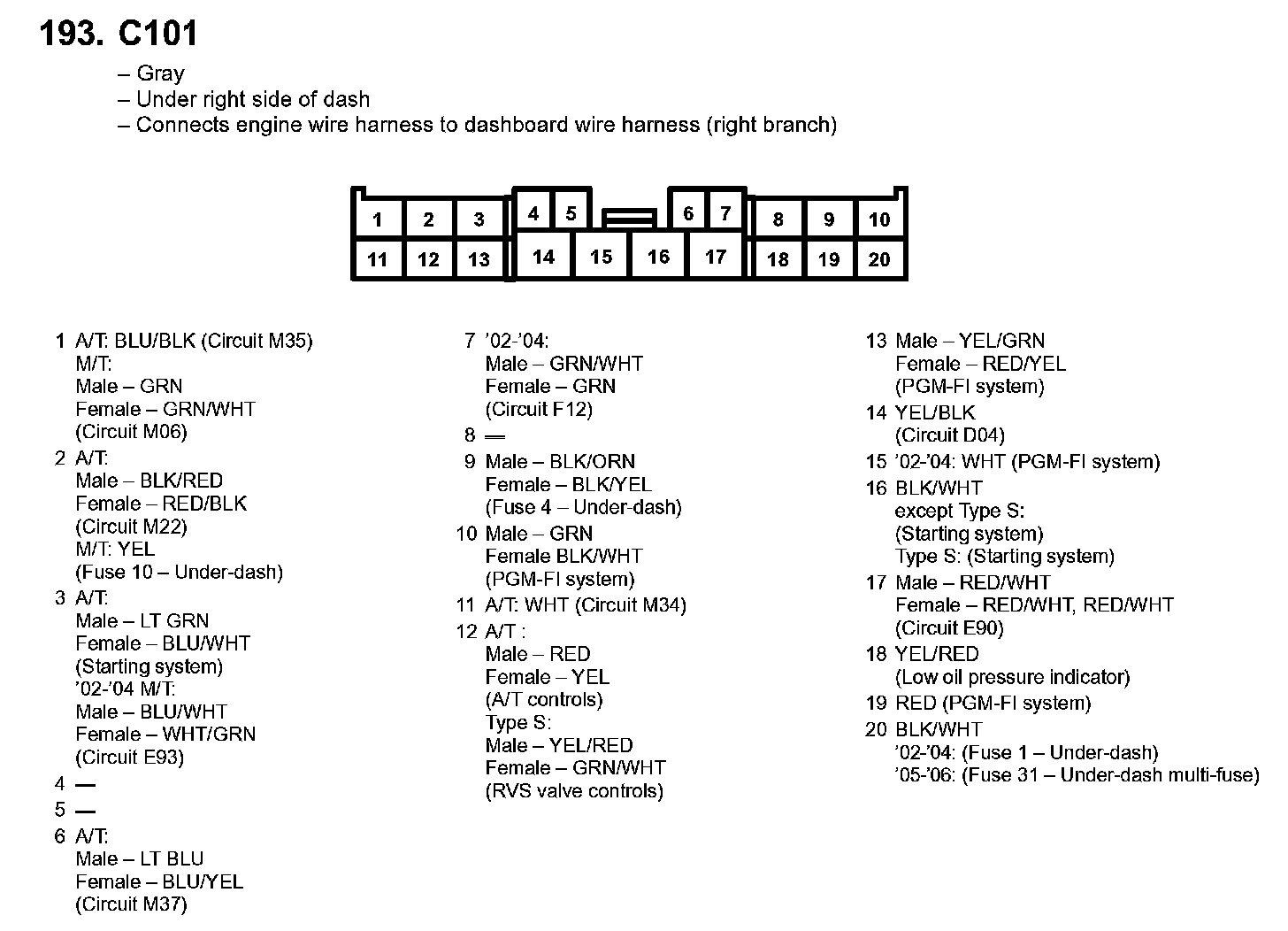

193. C101:
