Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 126-150 >> 148

View 126-150: 148

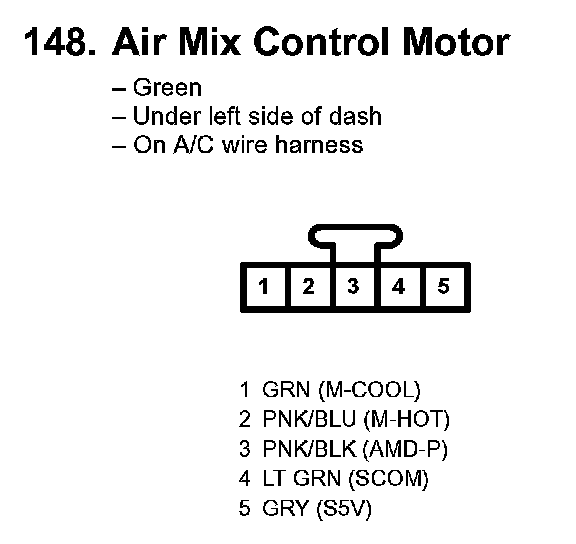

148. Air Mix Control Motor:

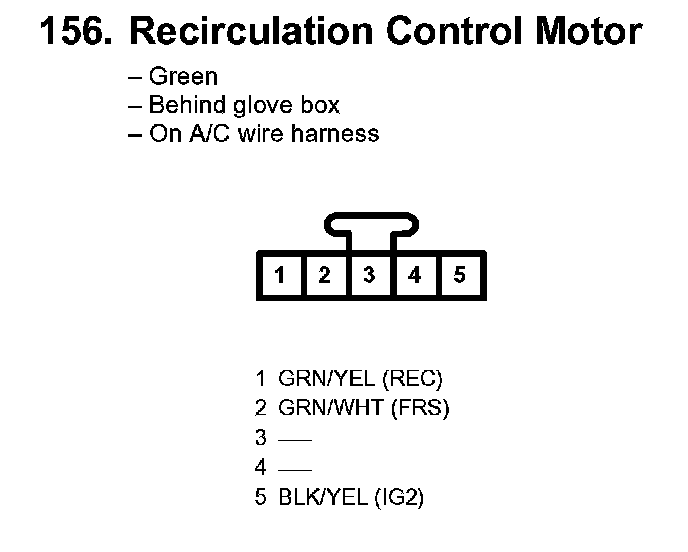

156. Recirculation Control Motor:

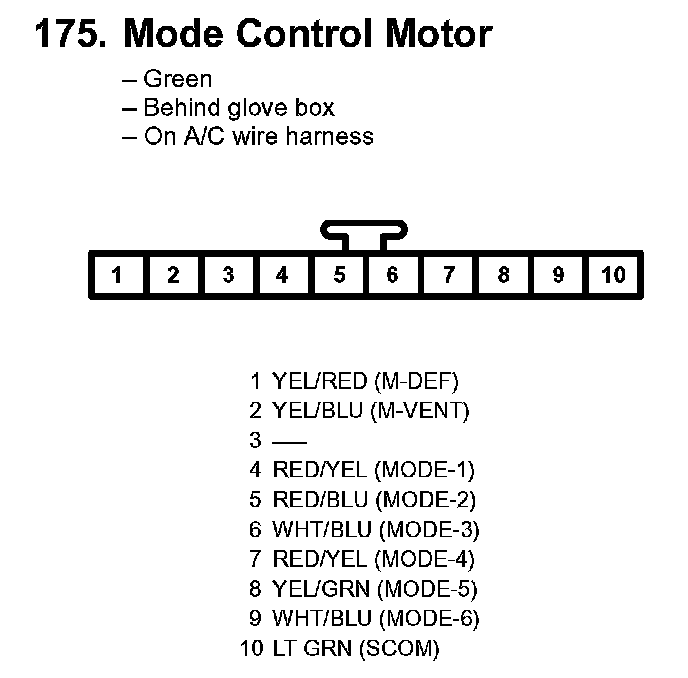

175. Mode Control Motor:
