Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 126-150 >> 140

View 126-150: 140

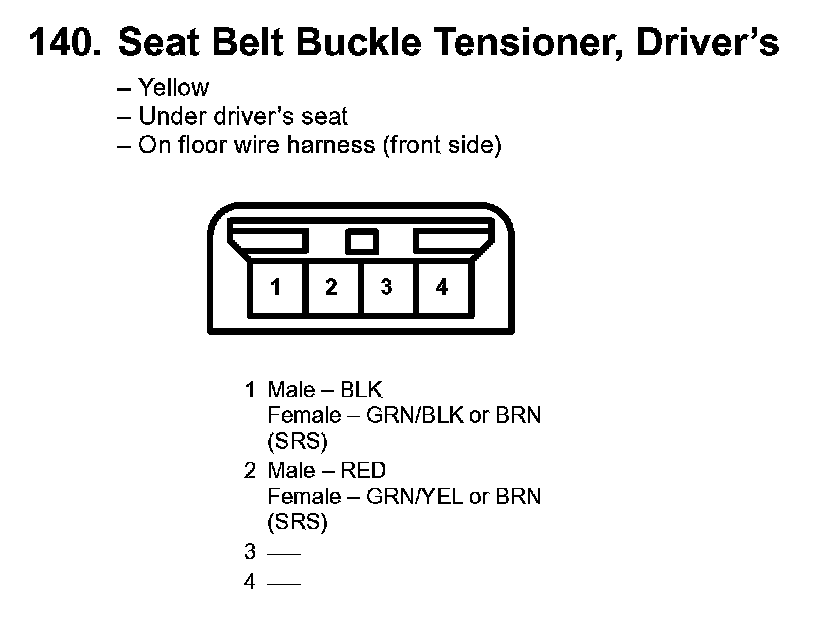

140. Seat Belt Buckle Tensioner, Driver's:
