View 1-25: 22

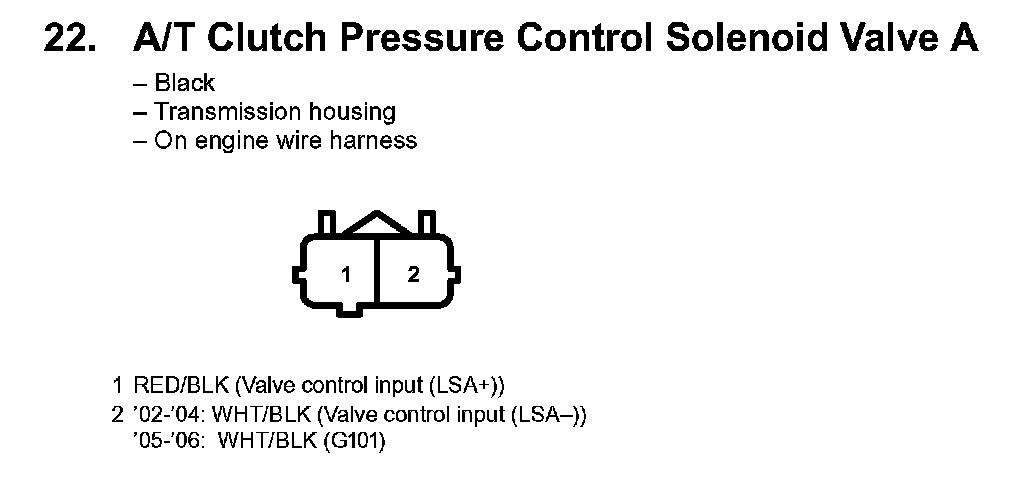

22. A/T Clutch Pressure Control Solenoid Valve A:



23. A/T Clutch Pressure Control Solenoid Valve B:

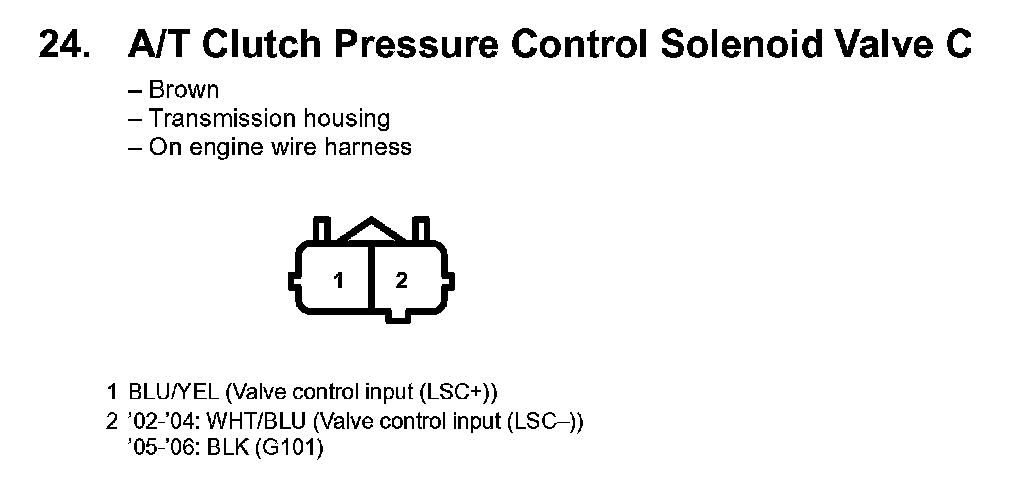

24. A/T Clutch Pressure Control Solenoid Valve C:
