Alarm Module, (Vehicle Antitheft)

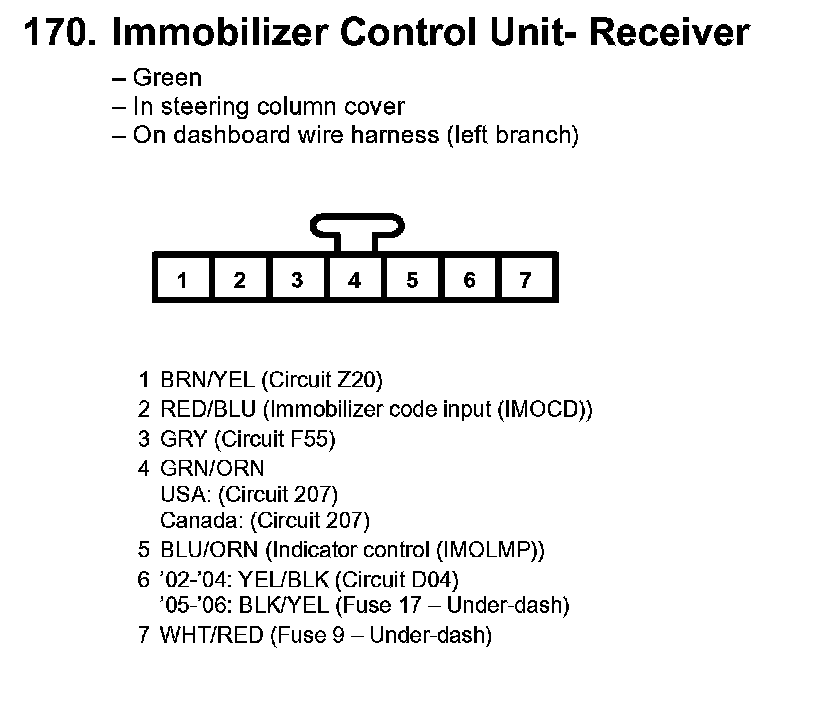

170. Immobilizer Control Unit-Receiver:

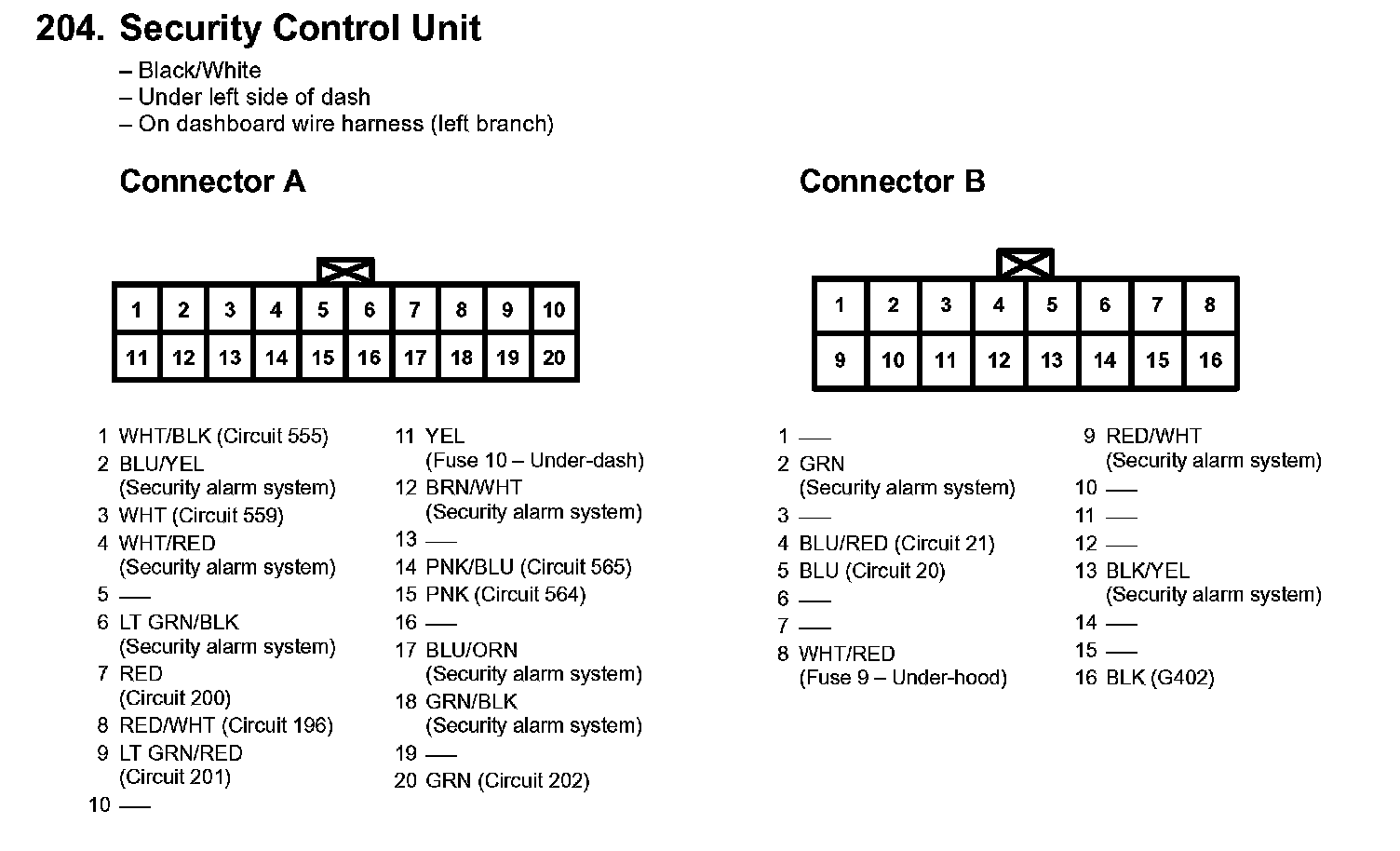

204. Security Control Unit:
