Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Components >> Relay and Control Unit Locations >> Dash Board

Dash Board

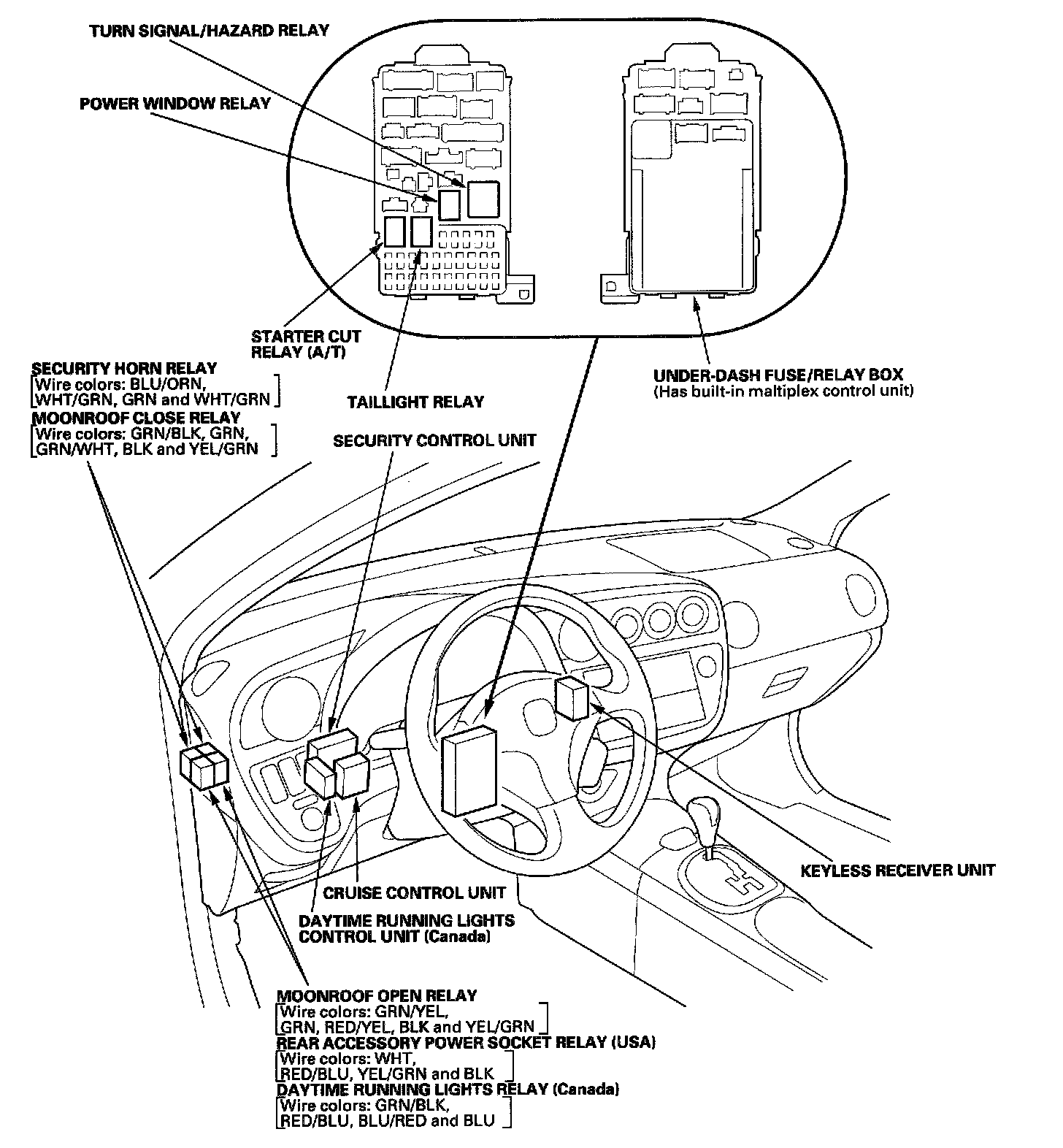

Relay And Control Unit Locations - Dashboard Part 1:

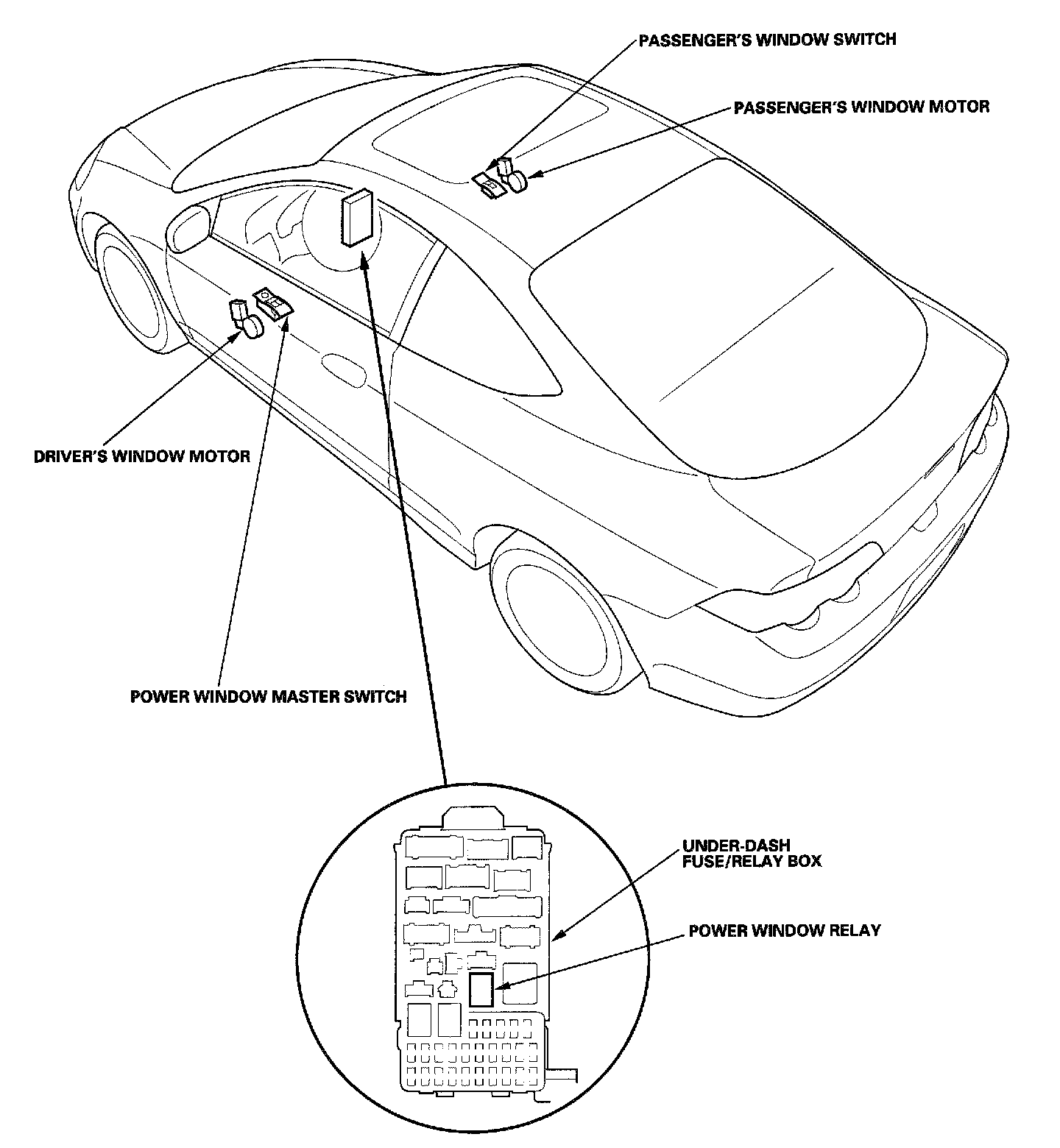

Power Windows Component Location Index:
