Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Cruise Control Unit

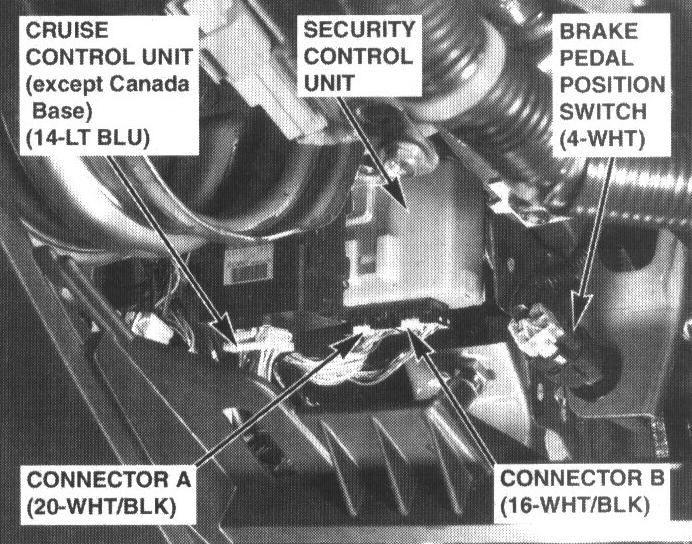

Cruise Control Unit

46. Under Left Side Of Dash:

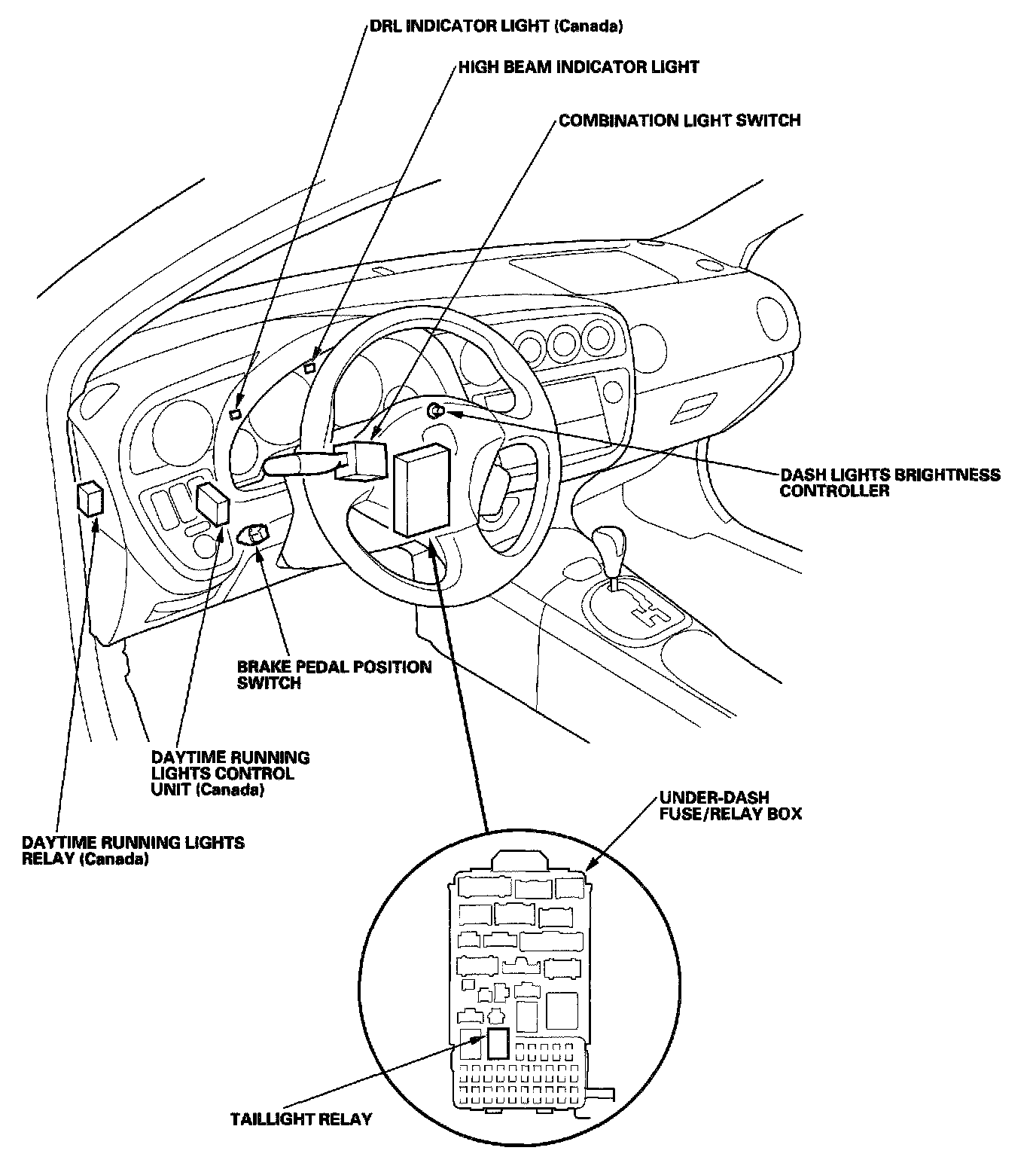

Exterior Lights Component Location Index Part 3:
