Sunroof / Moonroof Switch: Testing and Inspection

Switch Test/Replacement

1. Carefully pry out the driver's switch panel.

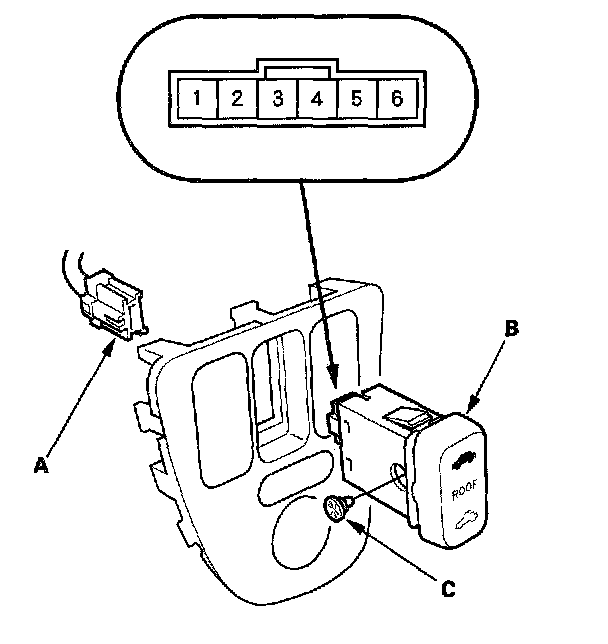

2. Disconnect the 6P connector (A) from the moonroof switch (B), then remove the switch.




3. Check for continuity between the terminals in each switch position according to the table.
4. If necessary, check the illumination bulbs (C).
