Sunroof / Moonroof Motor: Testing and Inspection

Motor Test

1. Remove the headliner.

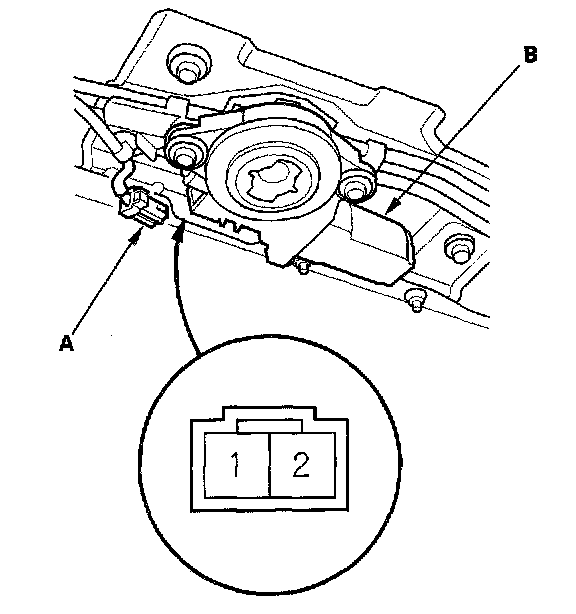

2. Disconnect the 2P connector (A) from the moon roof motor (B).

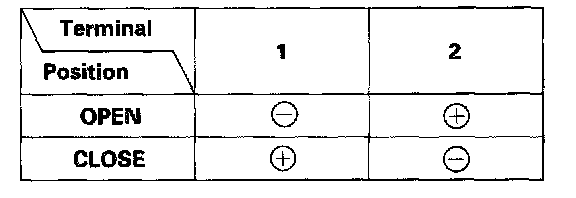

3. Check the motor by connecting power and ground according to the table.
4. If the motor does not run, replace it.

NOTE: See closing force check for motor clutch test.
