Sunroof / Moonroof Motor: Service and Repair

Motor Replacement

1. Remove the headliner

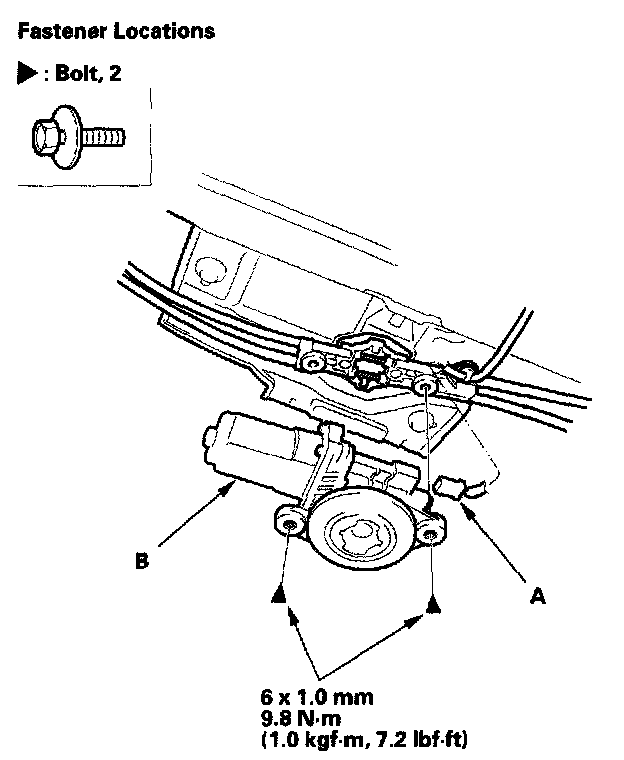

2. Put on gloves to protect your hands. Disconnect the connector (A), and remove the bolts, then remove the motor (B).
3. Install the motor in the reverse order of removal, and note these items:
- Make sure the connector is plugged in properly.
- Check the motor operation.
