Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Body and Frame >> Relays and Modules - Body and Frame >> Sunroof / Moonroof Relay >> Locations

Sunroof / Moonroof Relay: Locations

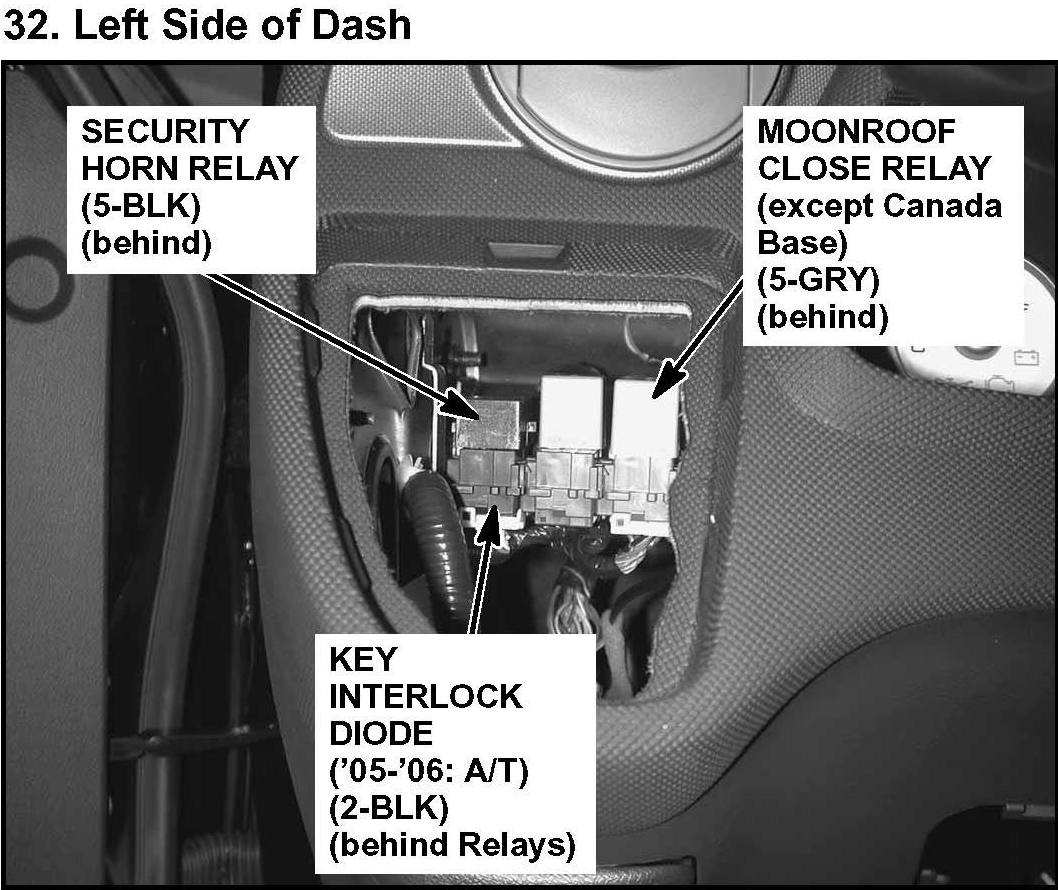

32. Left Side Of Dash:

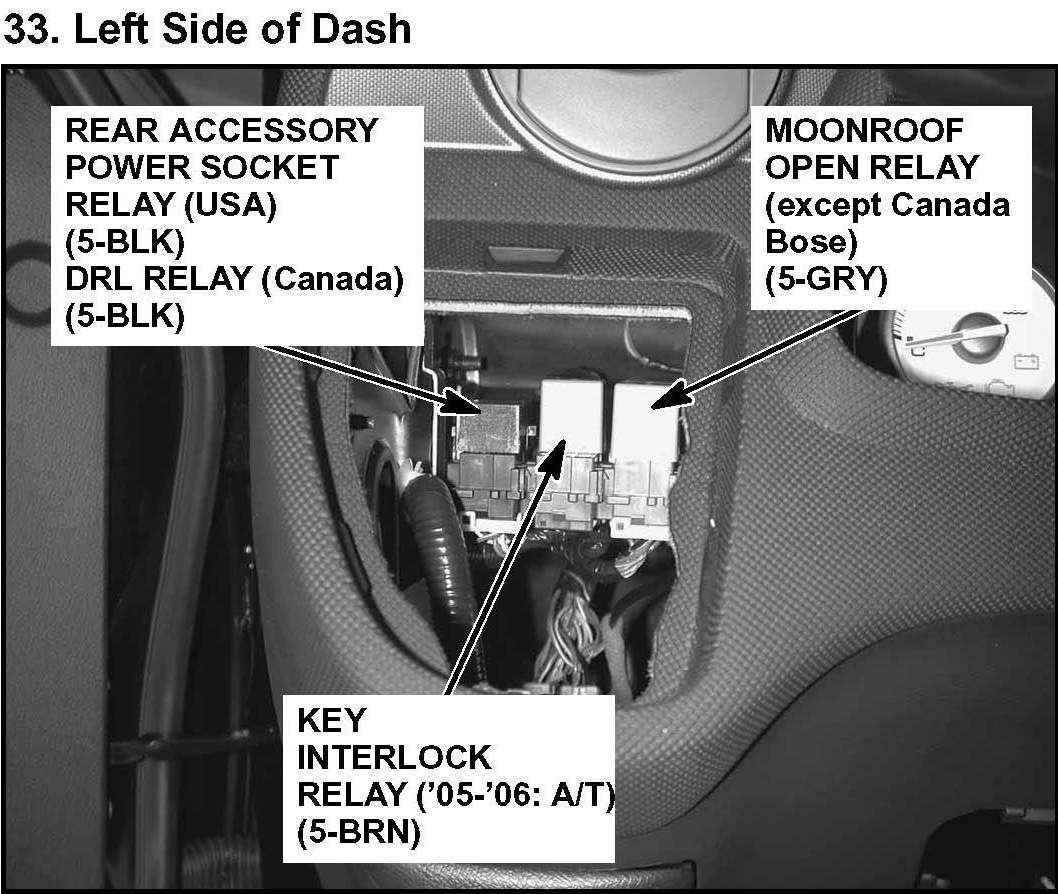

33. Left Side Of Dash:
