Trim Removal/Installation - Cargo Area

Trim Removal/Installation - Cargo Area

Special Tools Required
KTC trim tool set SOJATP2014

NOTE:
- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to bend or scratch the trim and panels.

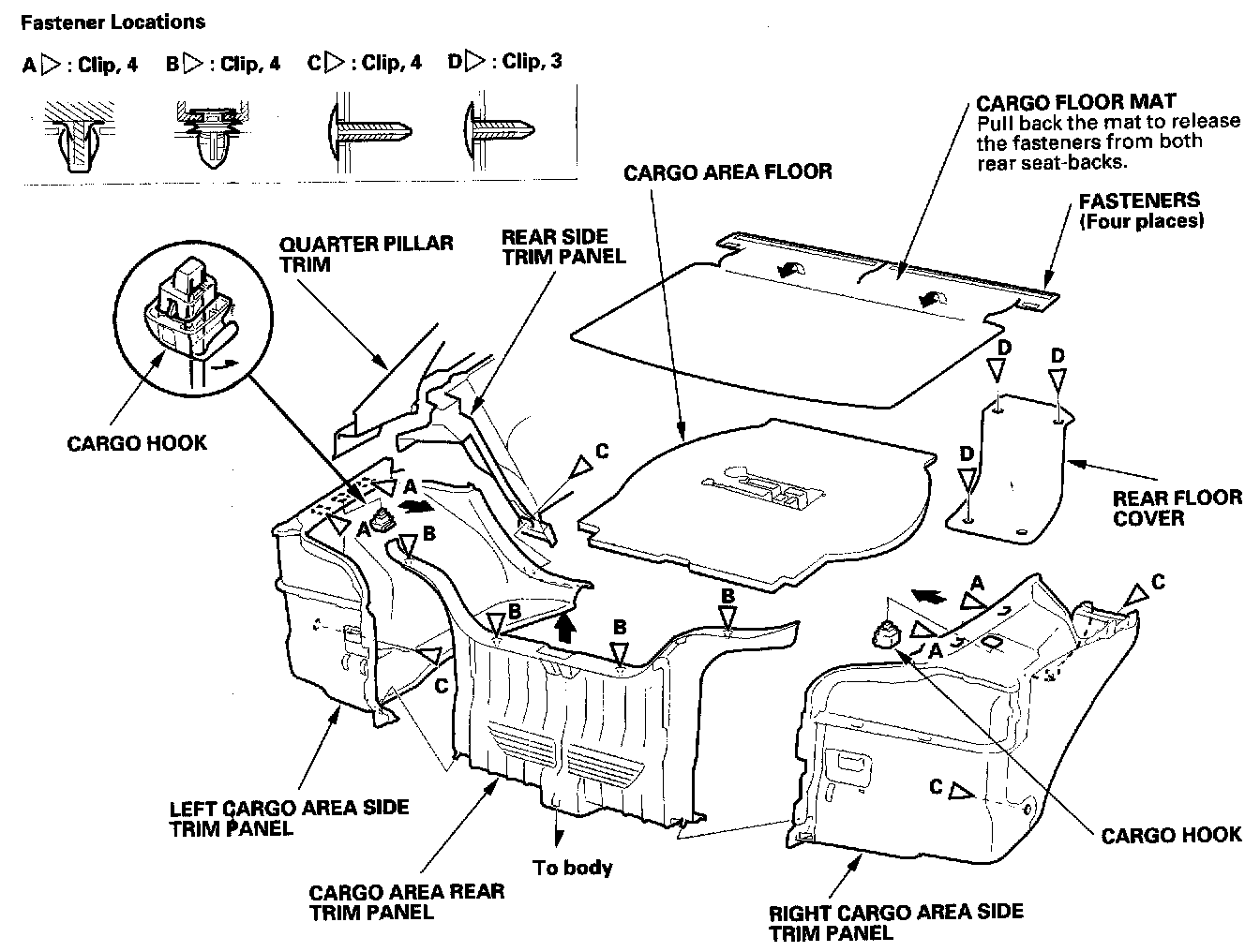

1. Remove the trim as shown: To remove the trunk side trim panel, remove the rear side trim panel as necessary and quarter pillar trim as necessary.




2. Install the trim in the reverse order of removal, and note these items:
- Replace any damaged or stress-whitenings clips.
- Push the clips into place securely.
