Interior Moulding / Trim: Locations

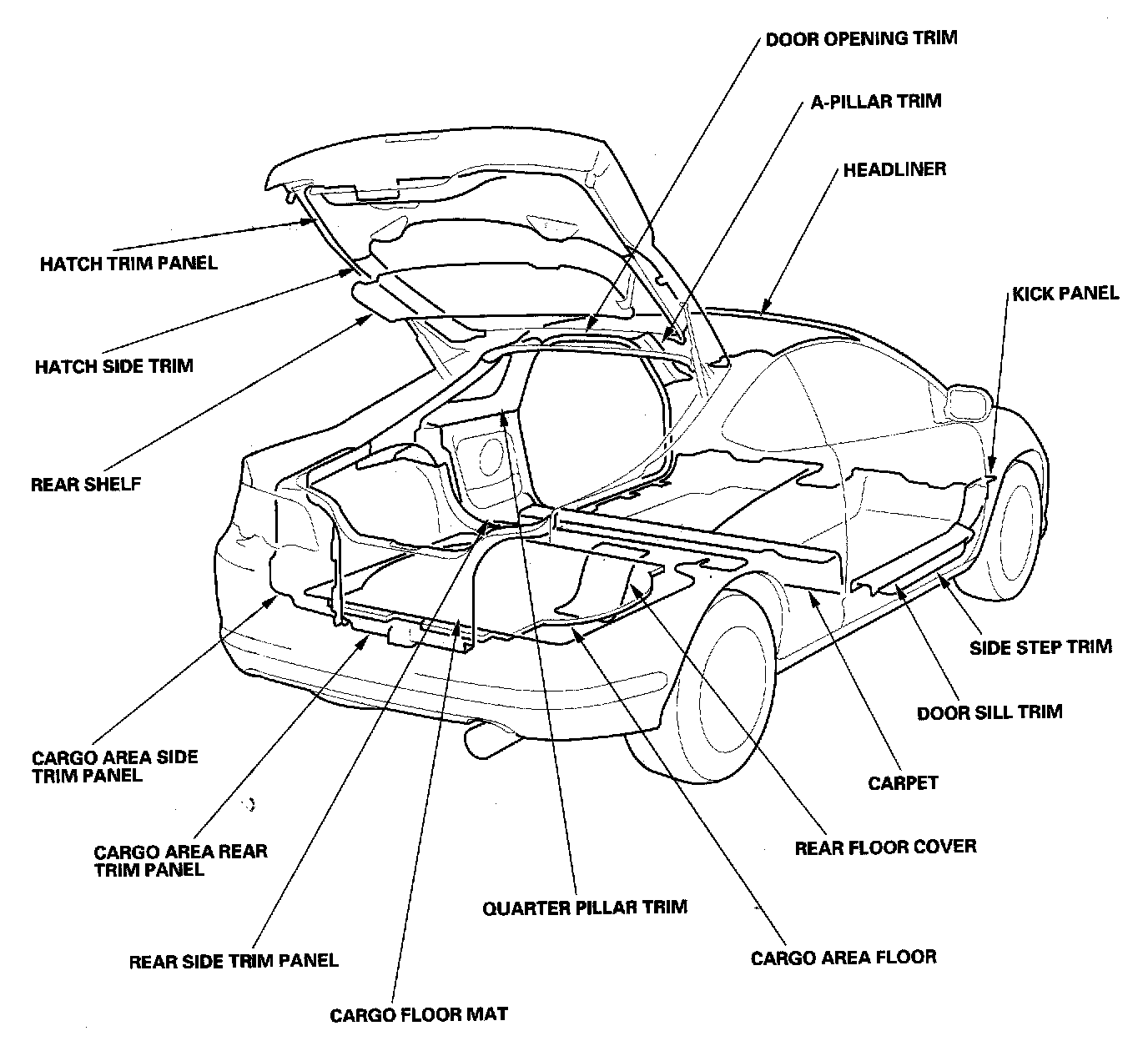

Interior Trim Component Location Index:

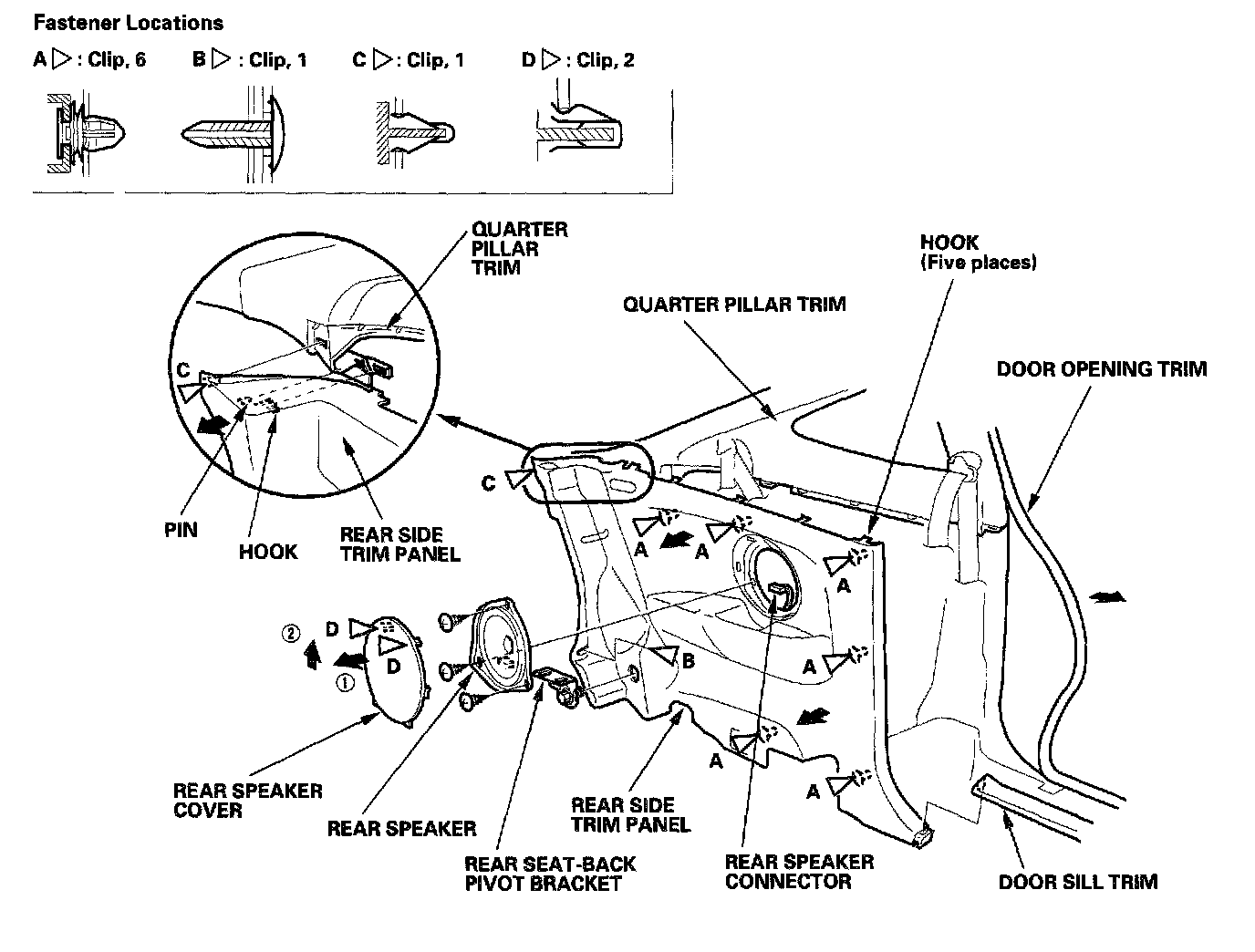

Rear Side Area:

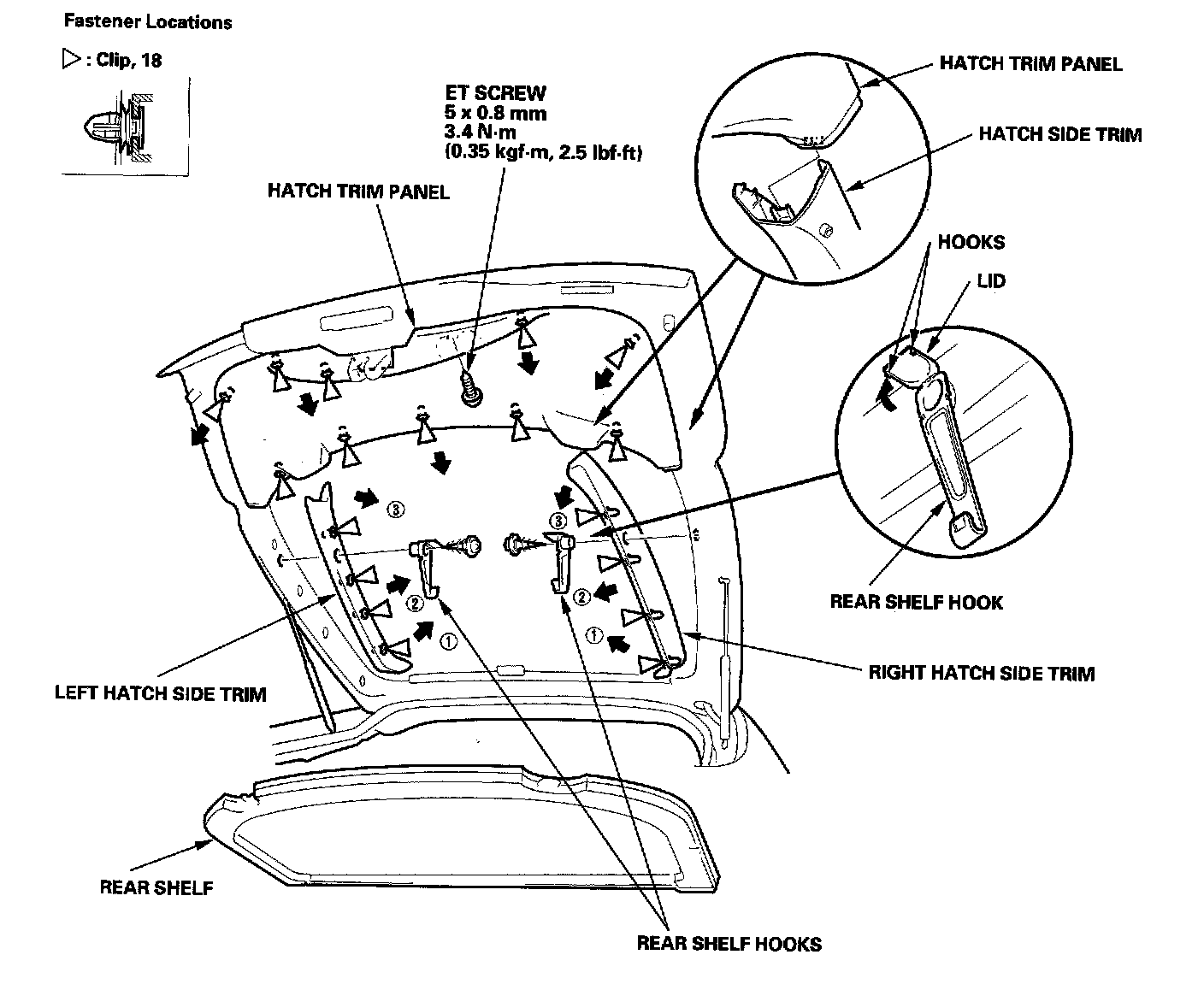

Hatch Area:

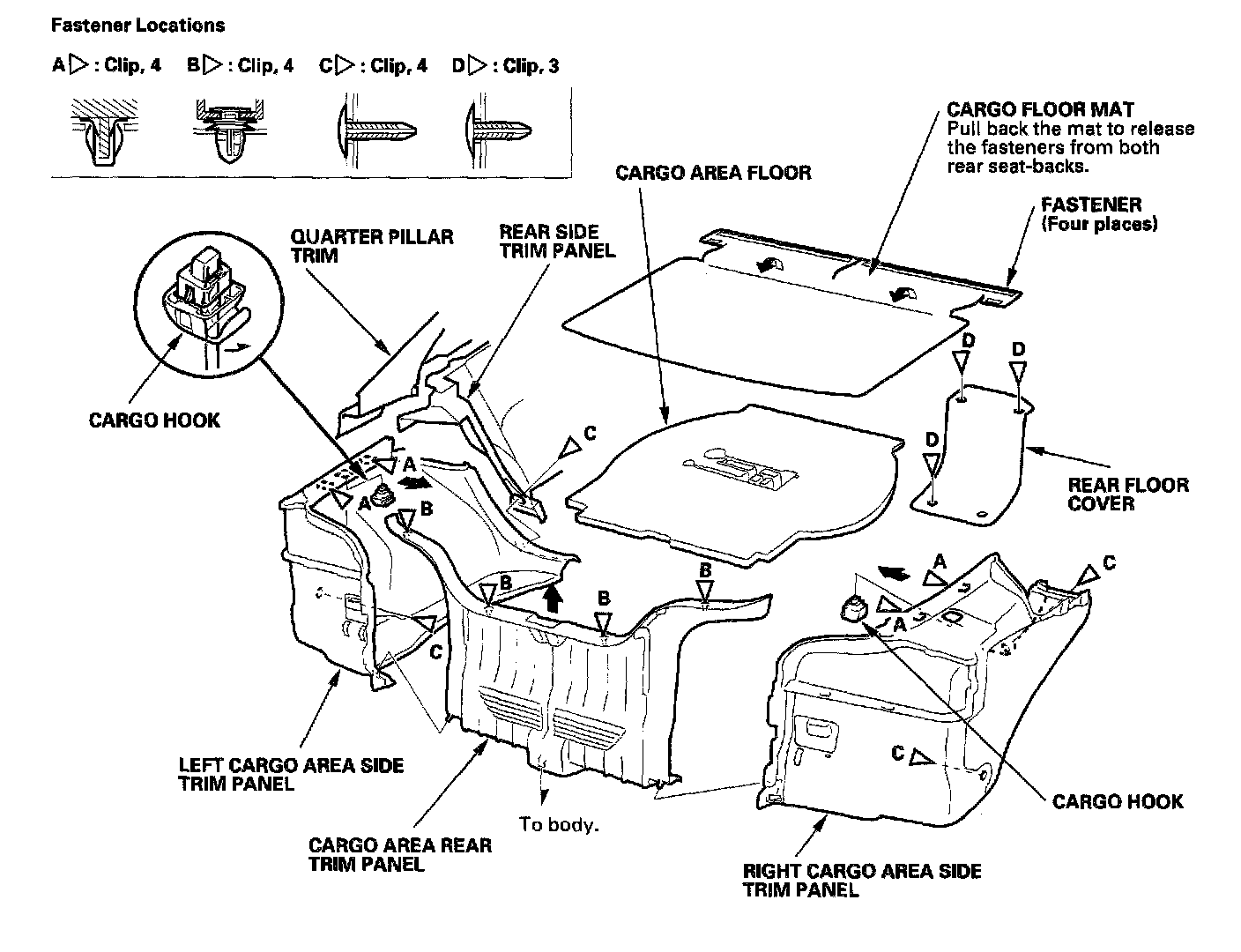

Cargo Area:

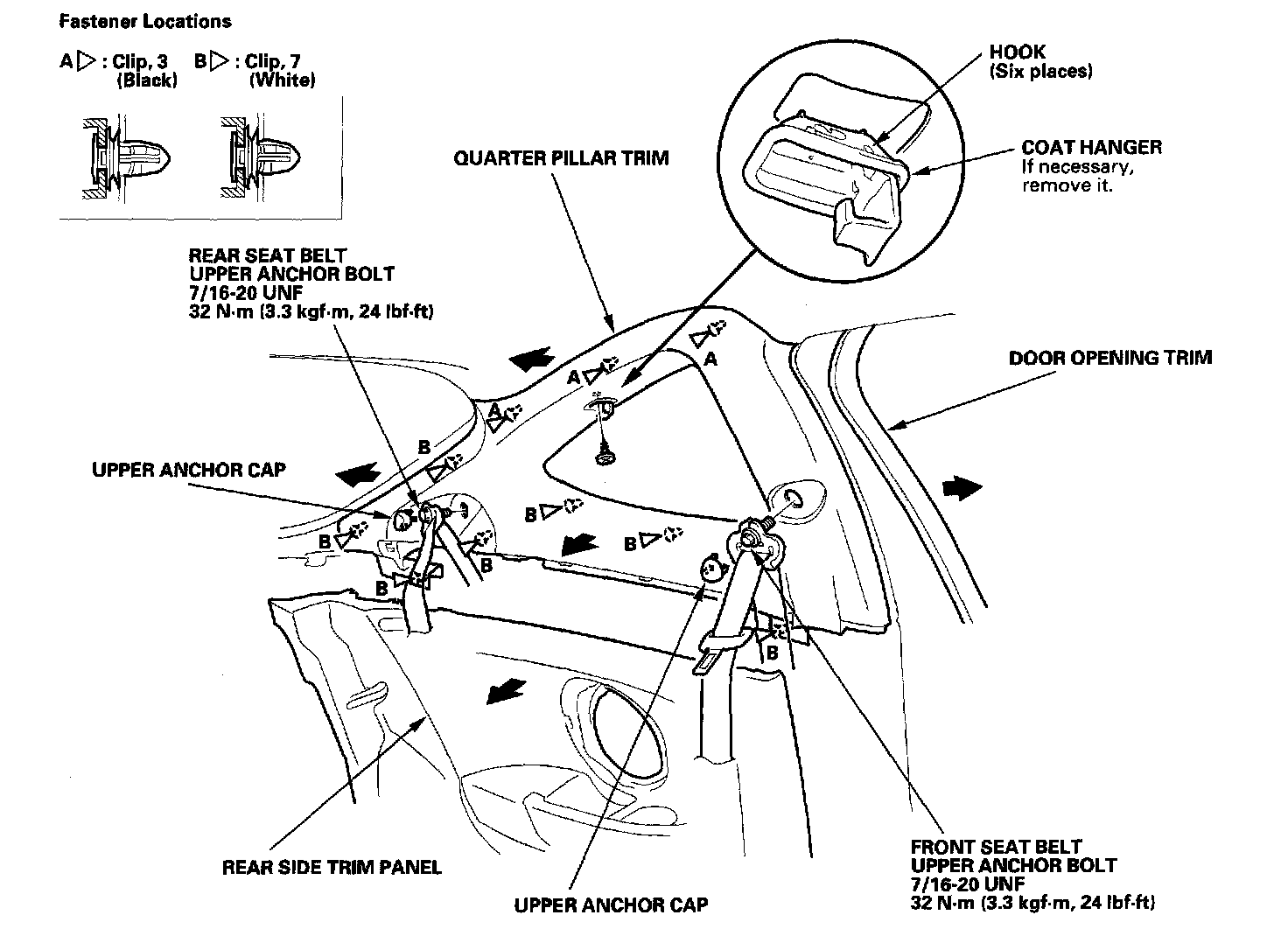

Quarter Pillar Trim:
