Passenger's Dashboard Lower Cover

Passenger's Dashboard Lower Cover Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.

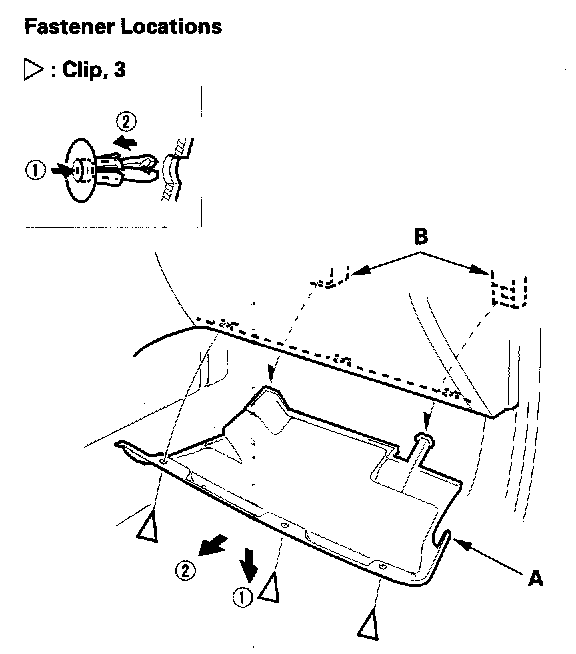

1. Remove the passenger's dashboard lower cover (A).
1. Remove the clips.
2. Pull down the edge nearest the glove box.
3. Pull the cover away to release it from the holders (B).

2. Install the cover in the reverse order of removal, and note these items:
- Replace any damaged or stress-whitened clips.
- Push the clips into place securely.
