Driver's Dashboard Under Cover

Driver's Dashboard Under Cover Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.

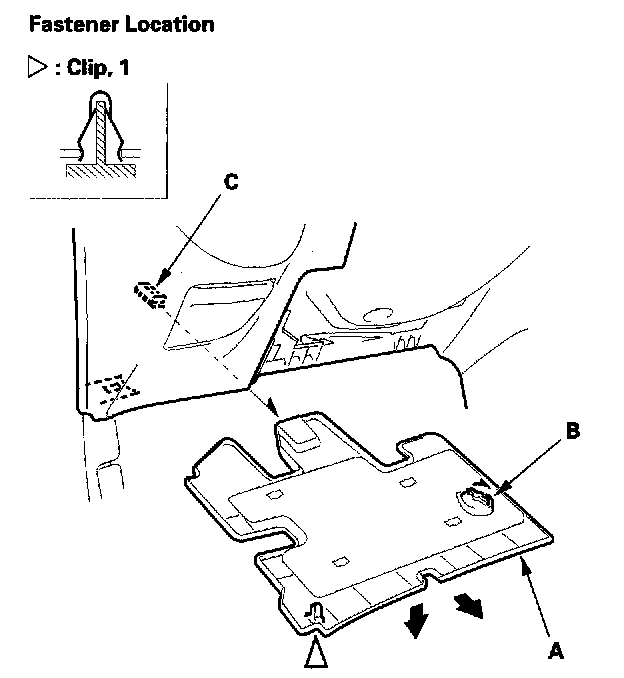

1. Remove the driver's dashboard under cover (A).
1. Turn the lock knob (B) 90 °.
2. Gently pull down the rear edge to release the clip.
3. Pull the cover away to release it from the clip (C).

2. Install the cover in the reverse order of removal, and note these items:
- Replace the clip if it's damaged or stress-whitened clips.
- Push the clip into place securely.
