Driver's Dashboard Lower Cover

Driver's Dashboard Lower Cover Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.

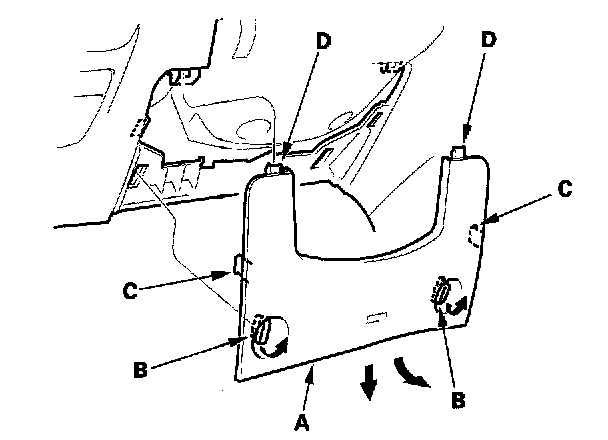

1. Remove the driver's dashboard lower cover (A).
1. Adjust the steering column upward.
2. Turn both lock knobs (B) 90 °.
3. Gently pull out the bottom to release the hooks (C).
4. Pull down the panel to release the hooks (D).

2. Install the cover in (he reverse order of removal, and push the hooks into place securely.
