Dashboard Center Lower Cover

Dashboard Center Lower Cover Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the dashboard and related parts.

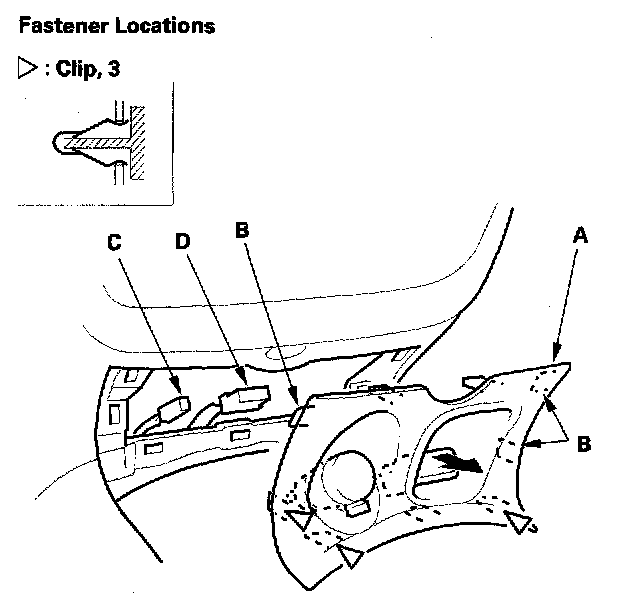

1. Remove the dashboard center lower cover (A).
1. Gently pull out the cover to release the clips and hooks (B).
2. If equipped, disconnect the accessory power socket connector (C) and seat heater switch connector (D).

2. Install the cover in the reverse order of removal, and note these items:
- If equipped, make sure the accessory power socket connector and seat heater switch connector are plugged in properly.
- Replace any damaged or stress-whitened clips.
- Push the clips and hooks into place securely.
