Center Panel

Center Panel Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the dashboard and related parts.

1. Remove the dashboard center lower cover.
2. Make sure you have the anti-theft code for the radio, then write down the frequencies for the preset buttons.

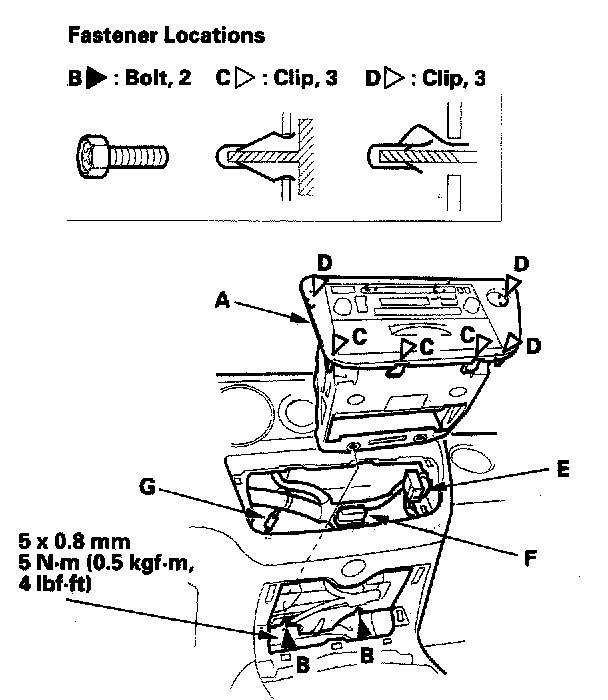

3. Remove the center panel (A).
1. Remove the bolts (B) from the dashboard center lower cover opening.
2. Gently pull out along the bottom to release the lower clips (C, D), then along both sides and top to release the remaining clips (C).
3. Disconnect the hazard warning switch connector (E), audio unit connector (F), and antenna lead (G).

4. Install the panel in the reverse order of removal, and note these items:
- Make sure each connector is plugged in properly and antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
- Replace any damaged or stress-whitened clips.
- Push the clips into place securely.
- Reset the clock.
- 02-04 models: Do the ECM/PCM idle learn procedure.
