Grille: Service and Repair

Front Grille Cover Replacement

02-04 Models

1. Remove the front bumper.

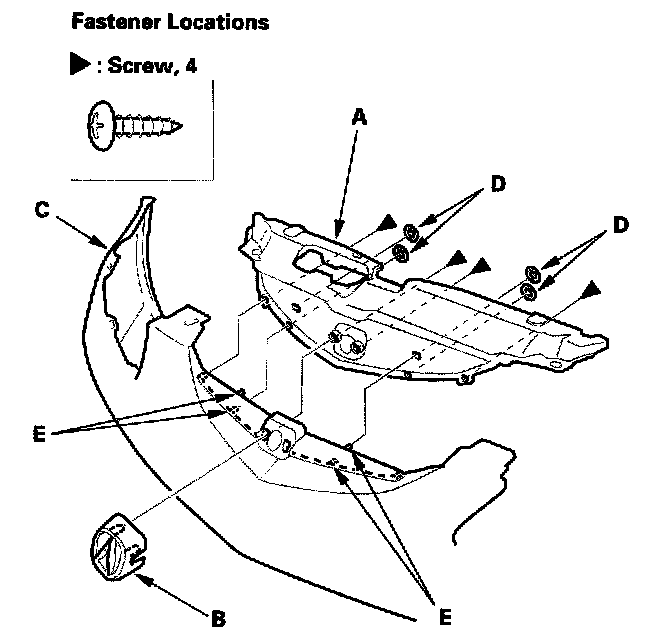

2. Remove the front grille cover (A) and front emblem base (B). Take care not to scratch the front bumper (C).
1. Remove the screws and push nuts (D).
2. Remove the front emblem base from the front bumper.
3. Pull the front grille cover away to release the pins (E) of the front bumper.

3. Install the grille cover and emblem base in the reverse order of removal, and note these items:
- Replace the push nuts with new ones.
- Push the push nuts into place securely.

4. Reinstall the front bumper.
