Trunk / Liftgate Shock / Support: Service and Repair

Hatch Support Strut Replacement

NOTE:
- Have an assistant help you when removing and installing the support strut.
- Take care not to scratch the body and hatch.

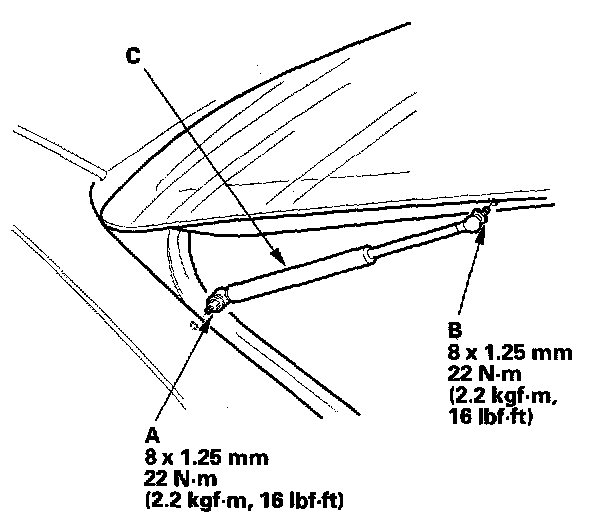

1. Remove the pivot bolt (A) from the body.
2. Remove the pivot bolt (B) from the hatch, then remove the support strut.
3. Install the support strut in the reverse order of removal.
