Hatch Latch

Hatch Latch Replacement

NOTE: Put on gloves to protect your hands.

1. Remove the hatch trim panel.




2. Disconnect the hatch lock actuator connectors (A) and hatch latch switch connector (B), and detach the hatch latch switch connector from the hatch.
3. While holding the hatch latch (C), remove the bolts, then remove the latch from the hatch.

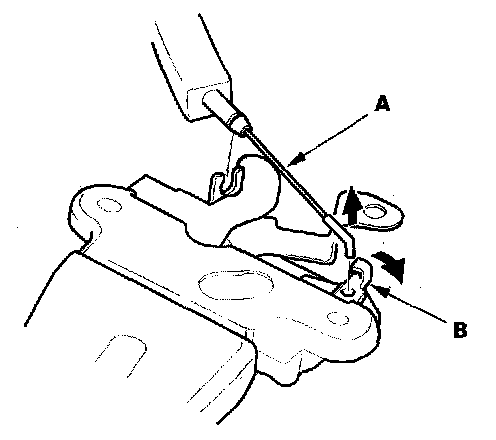

4. Disconnect the hatch opener cable (A) from the latch and the bushing (B).

NOTE: Check the bushing for damage and replace if necessary.

5. Install the latch in the reverse order of removal, and note these items:
- Make sure each connector is plugged in properly, and the cable is connected properly.
- Make sure the cable actuates the latch before you close the hatch.
- Make sure the hatch opens properly and locks securely.
