Fuel Door Release Cable: Service and Repair

Fuel Fill Door Opener Cable Replacement

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before performing repairs or service.

NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the body and related parts.

1. Remove these items from the left side of the vehicle:
- Rear side trim panel
- Cargo area side trim panel

2. Pull the carpet back as necessary.

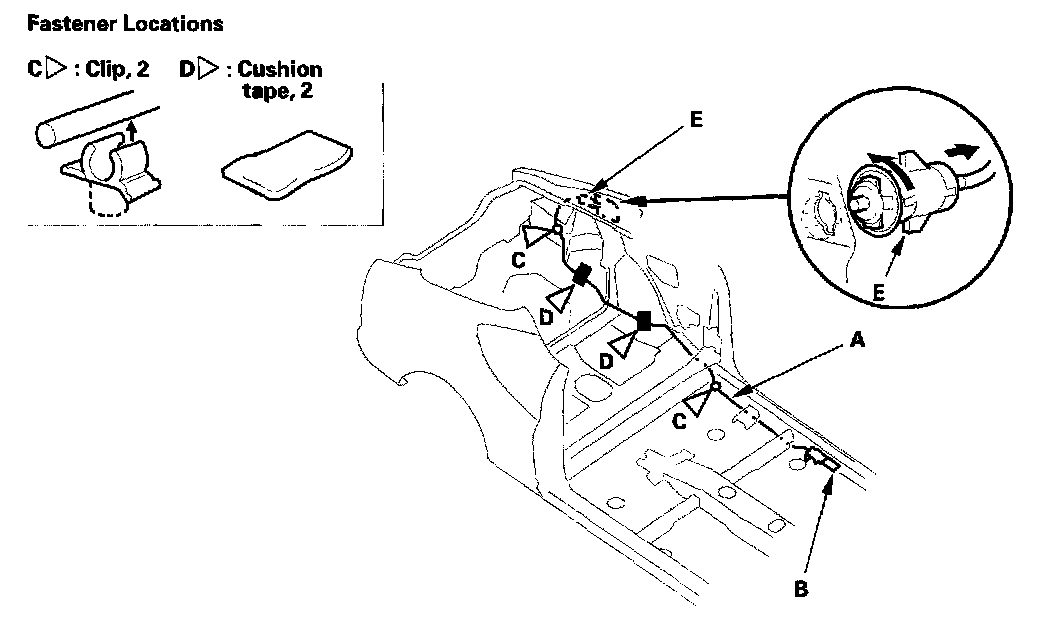

3. Disconnect the fuel fill door opener cable (A) from the opener (B)
4. Remove the opener cable from the clips (C). Remove the cushion tape (D).
5. Remove the fuel fill door latch (E) from the body by turning it 90 °.
6. Remove the opener cable from the vehicle. Take care not to kink the cable.




7. Install the opener cable in the reverse order of removal, and note these items:
- Replace the cushion tape and any damaged or stress-whitened clips.

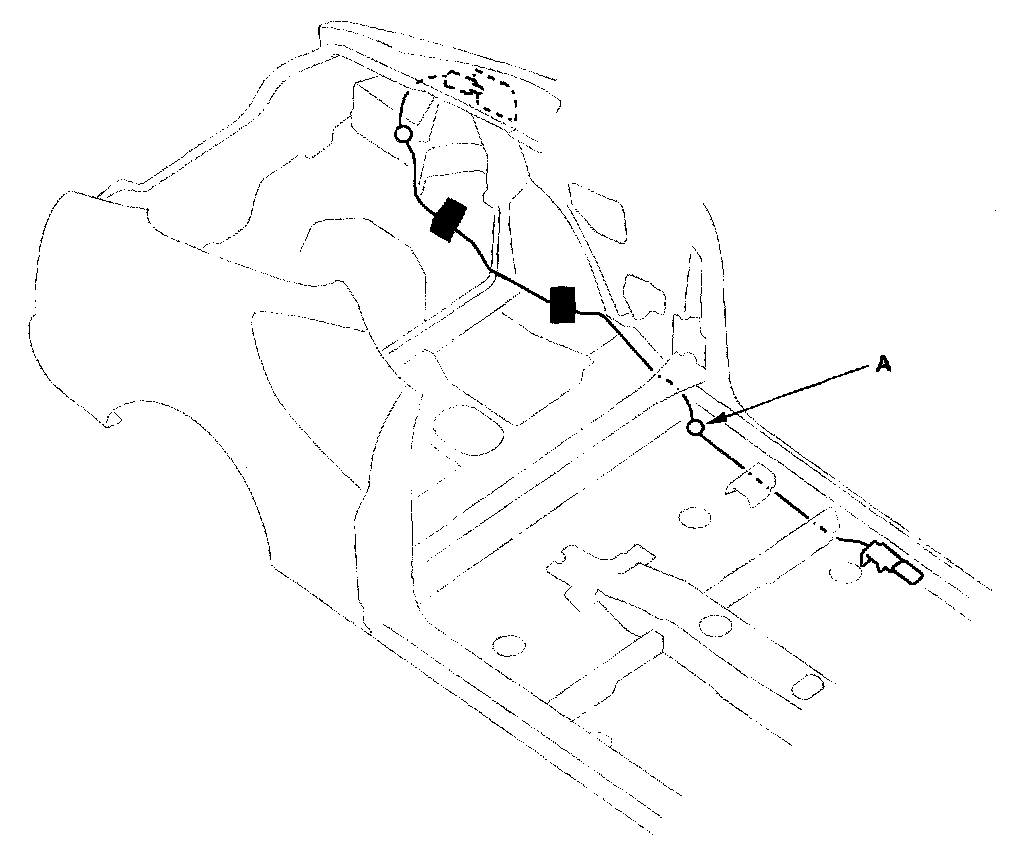

- Align the mark (A) on the opener cable with the clip.
- Make sure the fuel fill door opens properly and locks securely.
