Electrical Diagrams

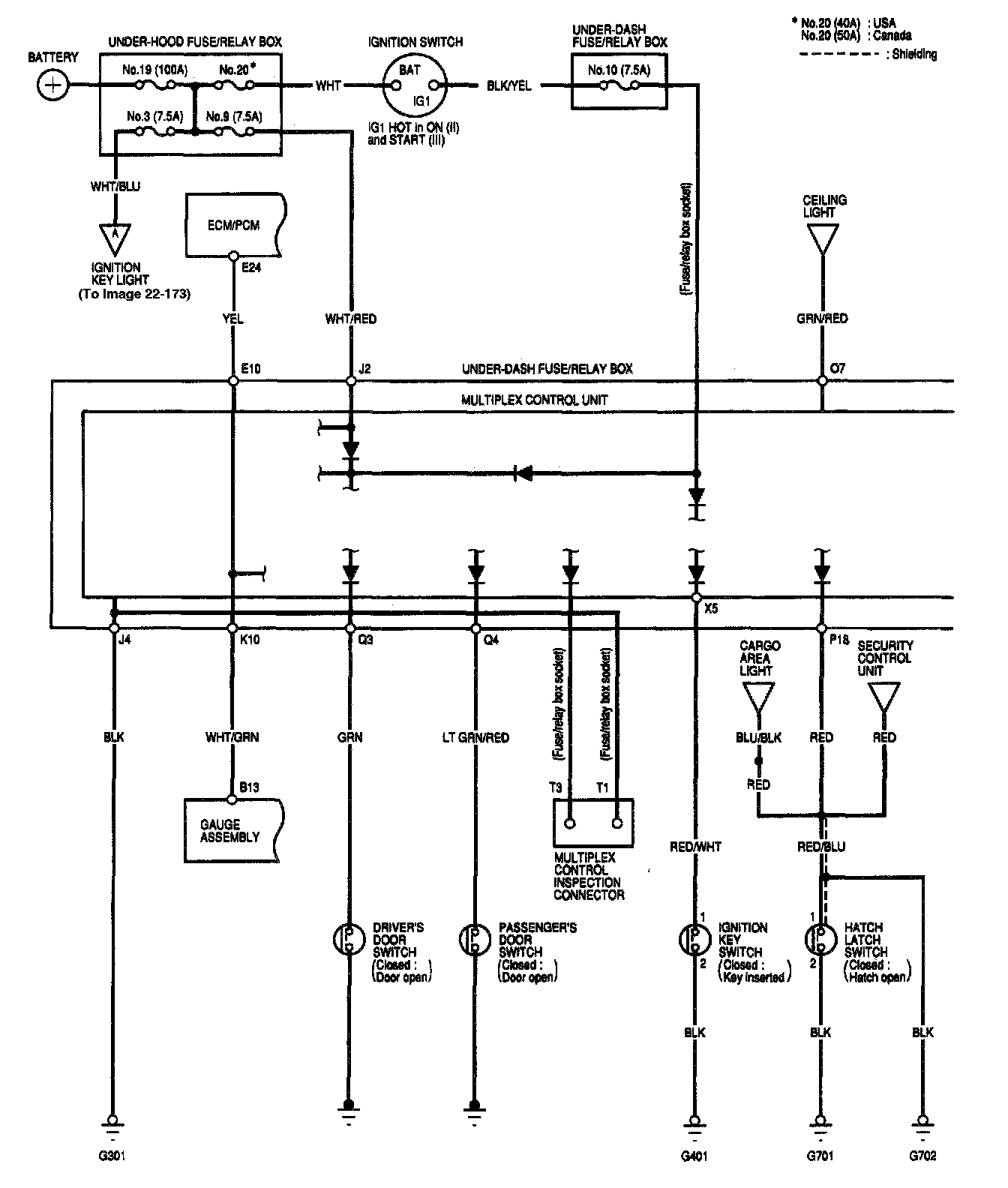

Multiplex Control System - Circuit Diagram Image 22-172:

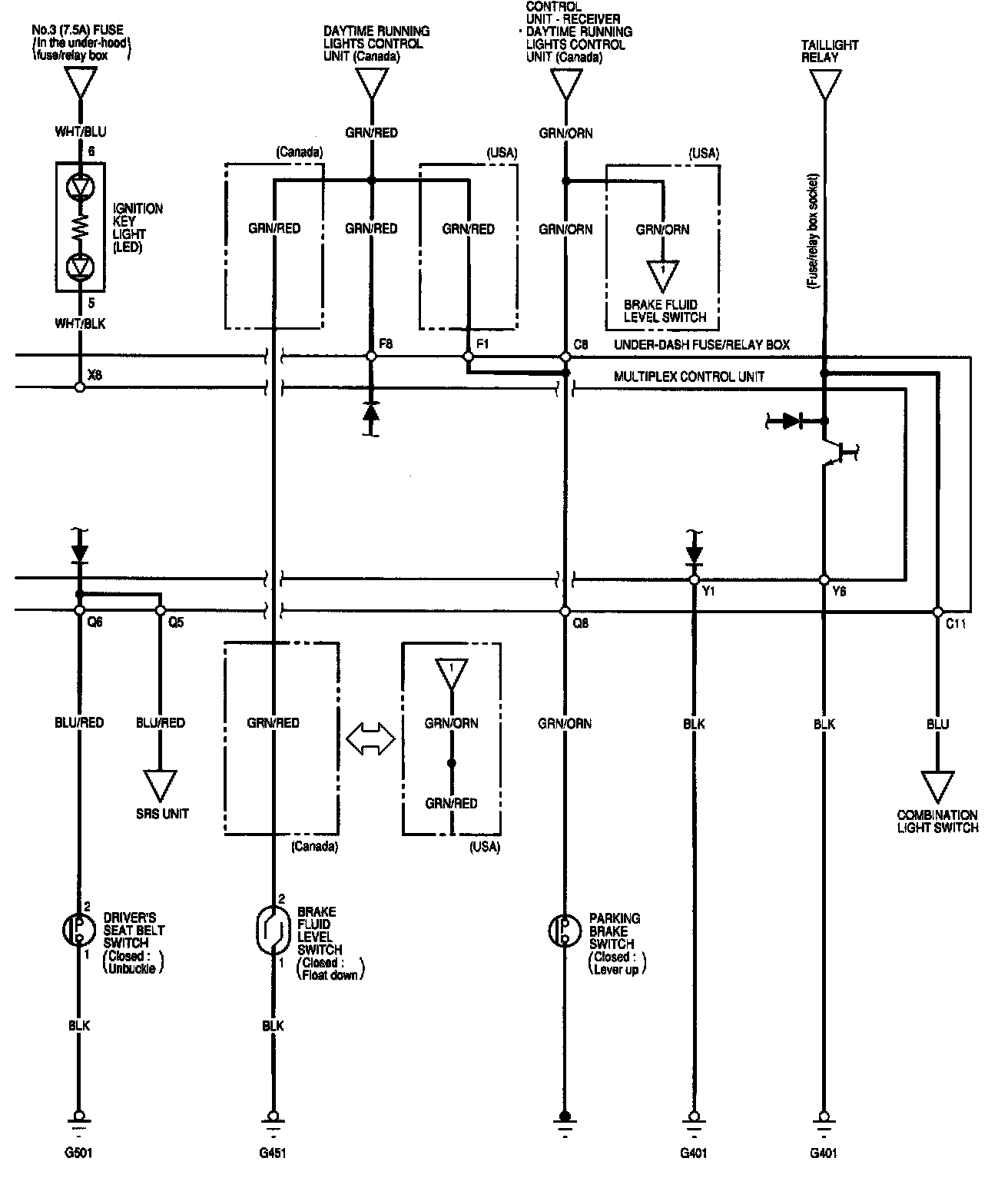

Multiplex Control System - Circuit Diagram Image 22-173:
