Speaker: Service and Repair

Speaker Replacement

Front Speaker-With BOSE Sound System:

1. Remove the door panel.




2. Remove the three mounting screws from the front speaker (A).
3. Disconnect the 2P connector (B), and remove the speaker.

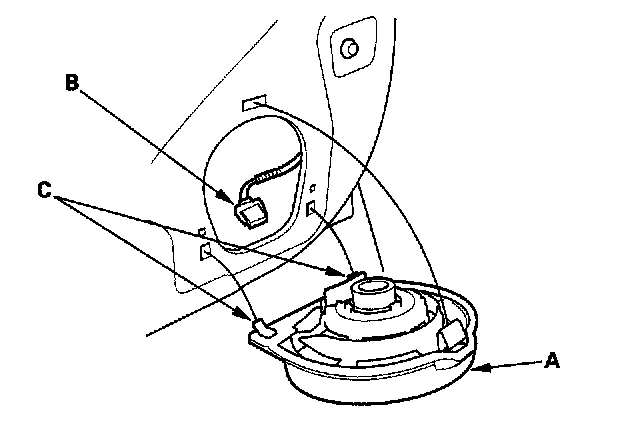

Front Speaker-Without BOSE Sound System:

1. Remove the door panel.

NOTE: If you pull the speaker out too far from the door, you will damage the lower clips(C).




2. Pull the top of the speaker (A) straight out, just enough to release the upper clip. Then lift the speaker straight up to release the lower clips(C).
3. Disconnect the 2P connector (B), and remove the speaker.

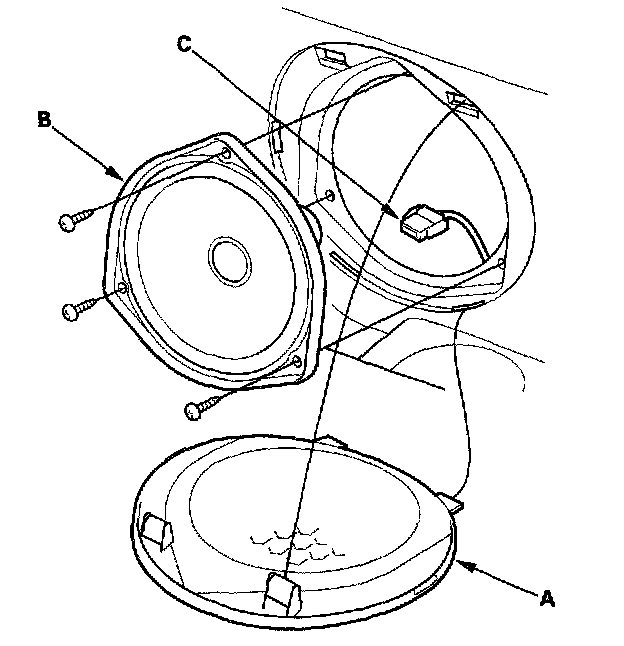

Rear Speaker:

1. Remove the speaker grille (A).




2. Remove the three mounting screws from the rear speaker (B).
3. Disconnect the 2P connector (C), and remove the speaker.

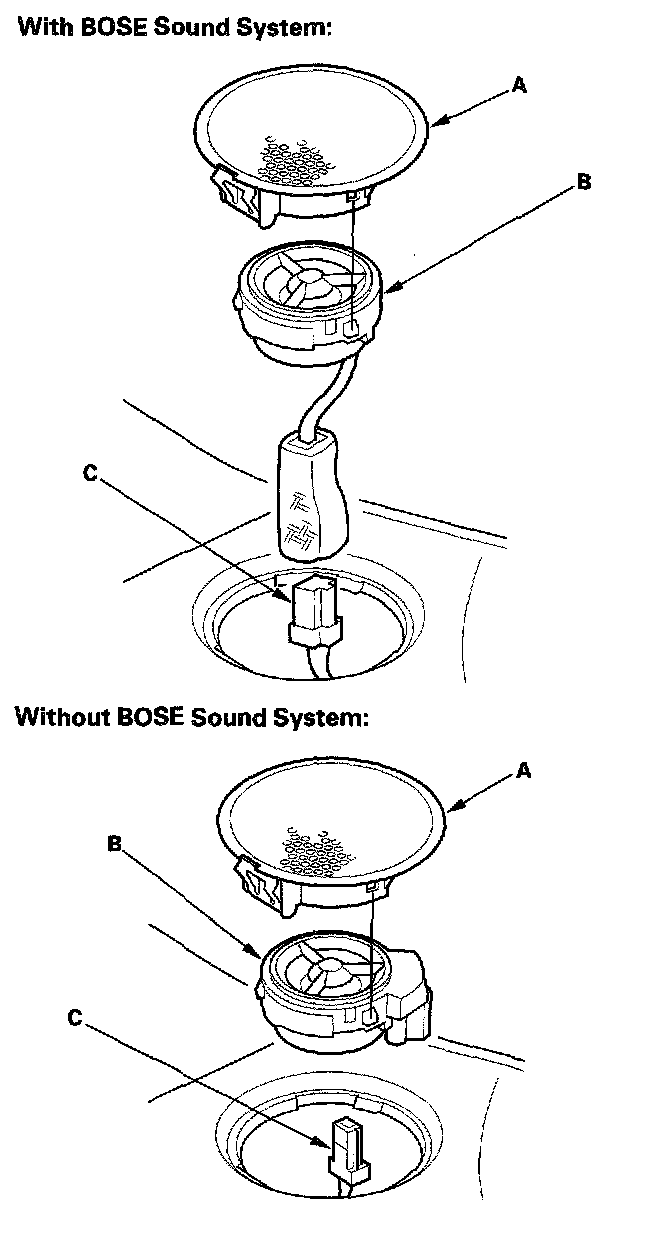

Tweeter:

1. Remove the tweeter speaker grille (A) and tweeter (B) as an assembly.
2. Disconnect the 2P connector (C) from the tweeter.




3. Remove the tweeter speaker grille from the tweeter.
