Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Service and Repair >> Audio Unit Connector

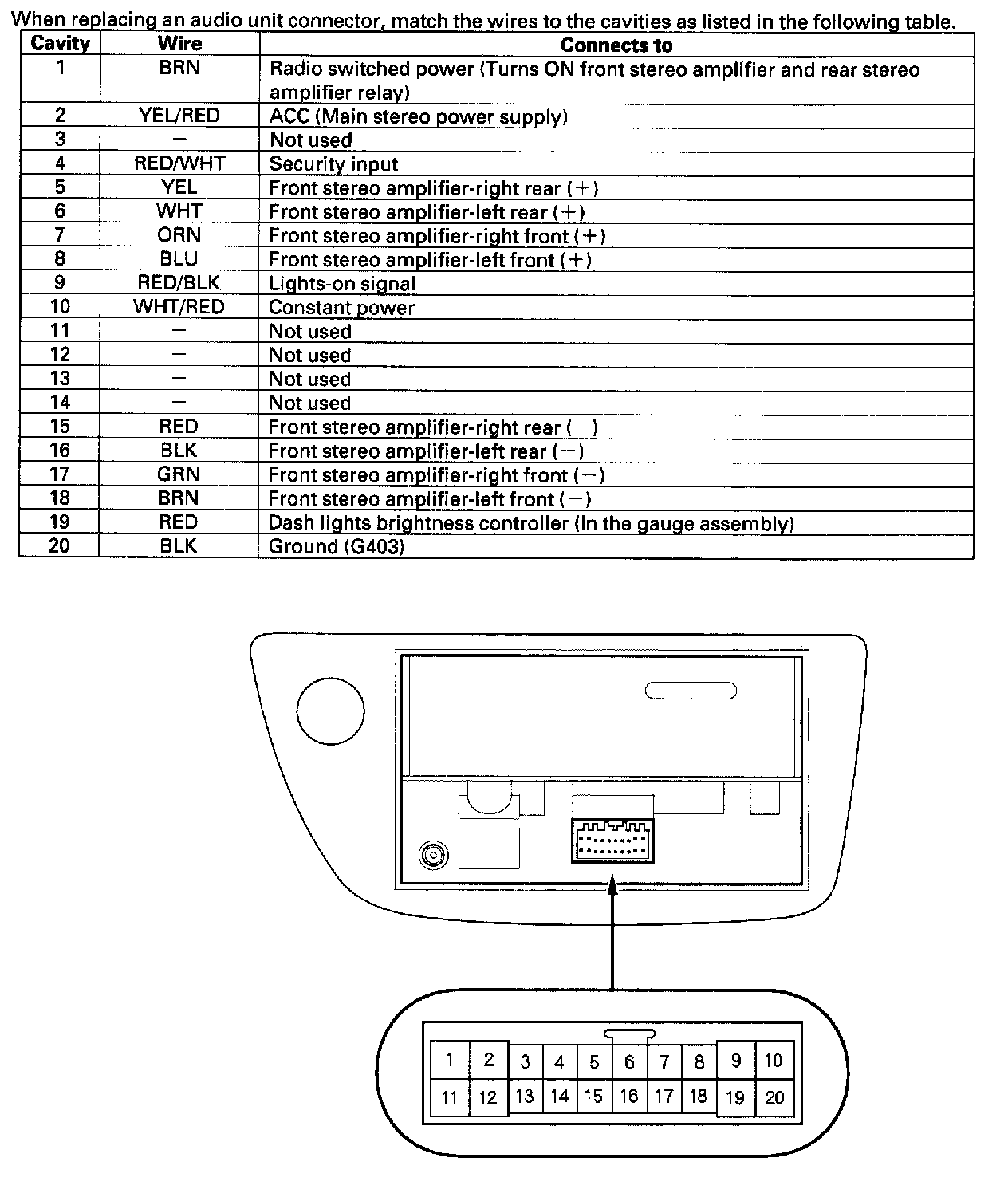

Audio Unit Connector

Audio Unit Connector Replacement - With BOSE Sound System:



Audio Unit Connector Replacement - Without BOSE Sound System:
