Rear Stereo Amplifier and Woofer

Rear Stereo Amplifier and Woofer Replacement

With BOSE Sound System:

1. Open the hatch.
2. Remove the cargo area floor.

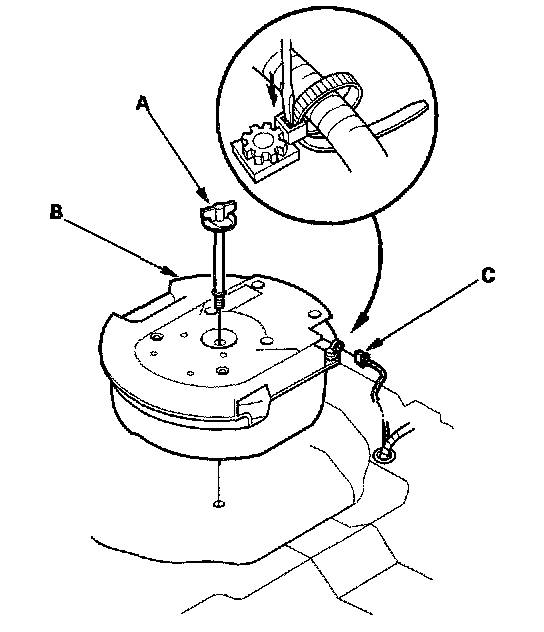

3. Remove the anchor bolt (A) from the rear stereo amplifier and woofer box (B).




4. Disconnect the 6P connector (C) from the rear stereo amplifier.

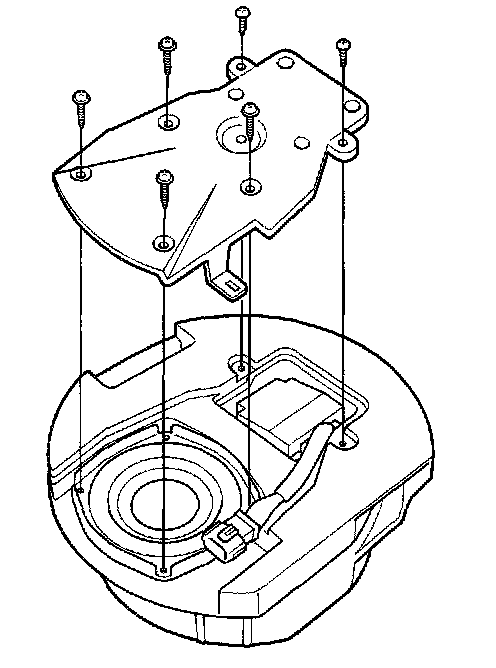

5. Remove the six mounting screws from the cover, then remove the cover.

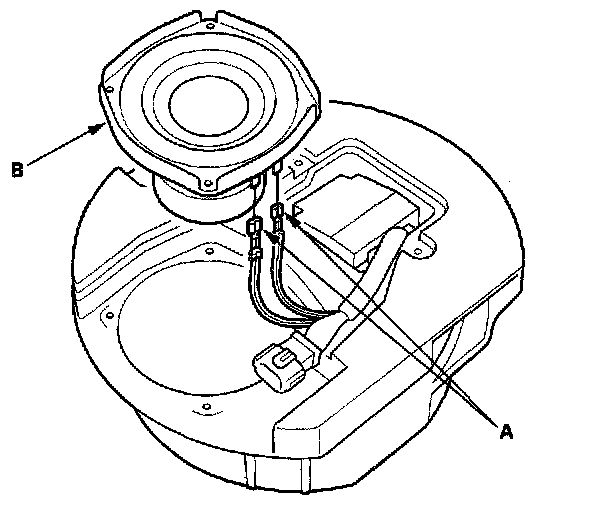

6. Disconnect the connectors (A) from the woofer (B).

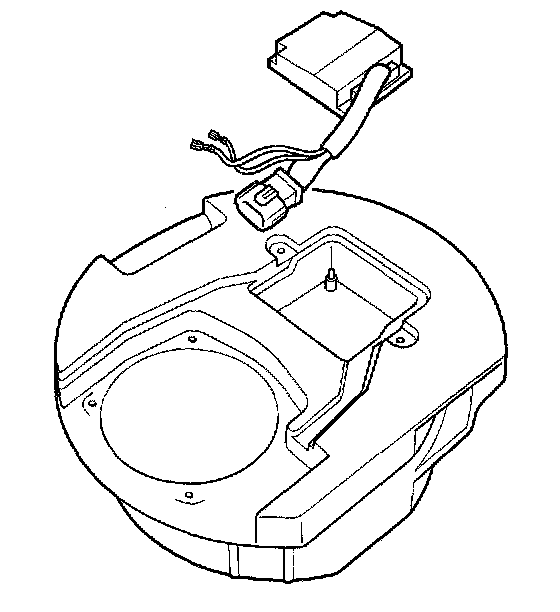

7. Remove the rear amplifier.
8. Install the rear stereo amplifier and woofer in the reverse order of removal.
