Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Amplifier >> Service and Repair >> Rear Stereo Amplifier Connector

Rear Stereo Amplifier Connector

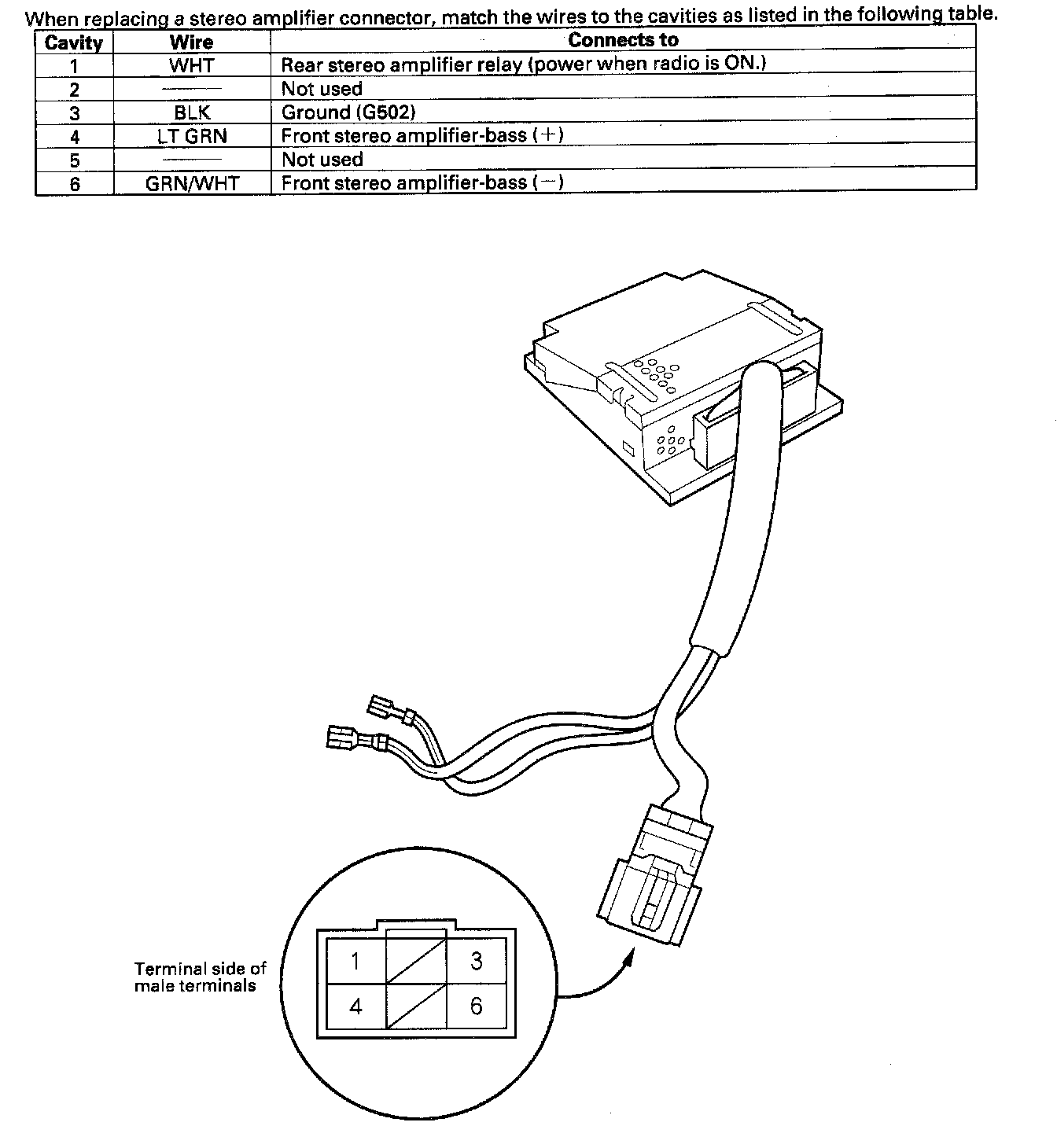

Rear Stereo Amplifier Connector Replacement - With BOSE Sound System:
