Front Stereo Amplifier

Front Stereo Amplifier Replacement

With BOSE Sound System:

1. Remove the front passenger's seat.
2. Remove the two mounting nuts from the amplifier brackets, then remove the front stereo amplifier from the front passenger's seat.

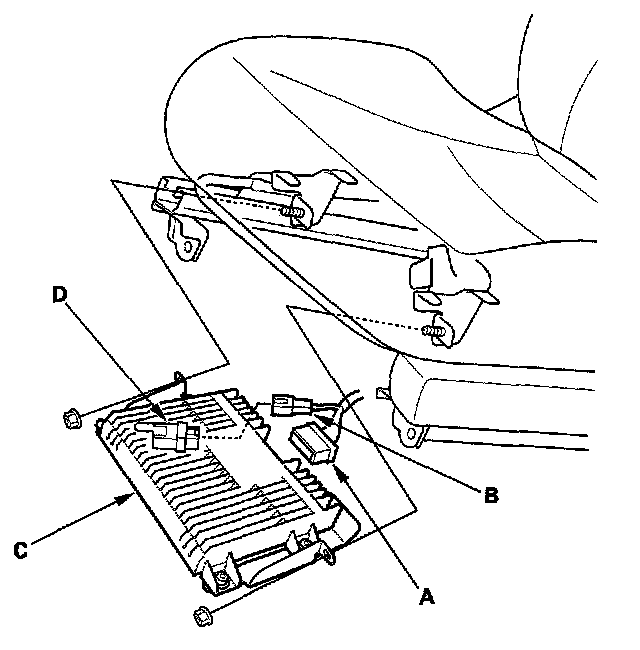

3. Disconnect the front stereo amplifier 26P connector (A) and rear stereo amplifier relay 4P connector (B) from the front stereo amplifier (C) and rear stereo amplifier relay (D).

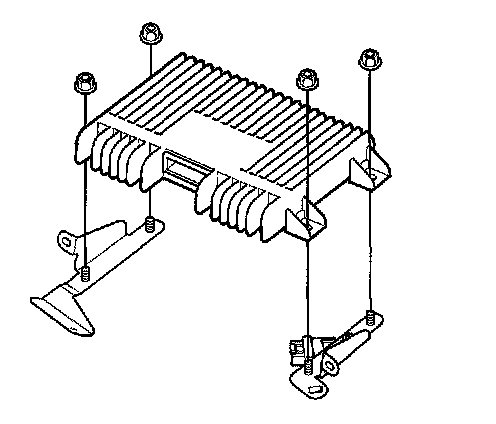

4. Remove the four mounting nuts from the amplifier brackets.
5. Install the front stereo amplifier in the reverse order of removal.
