Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Locations

Antitheft and Alarm Systems: Locations

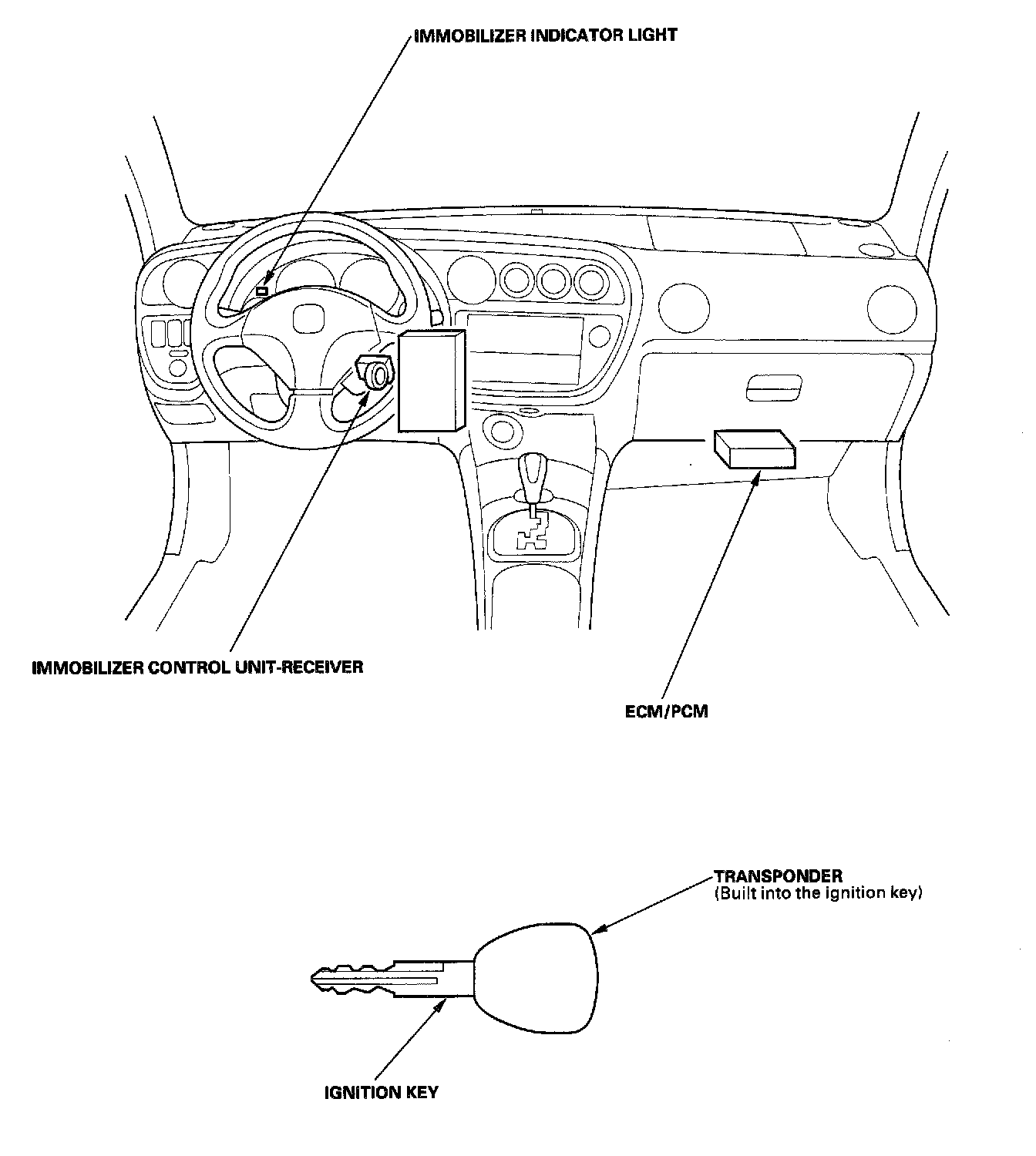

Immobilizer System Component Location Index:

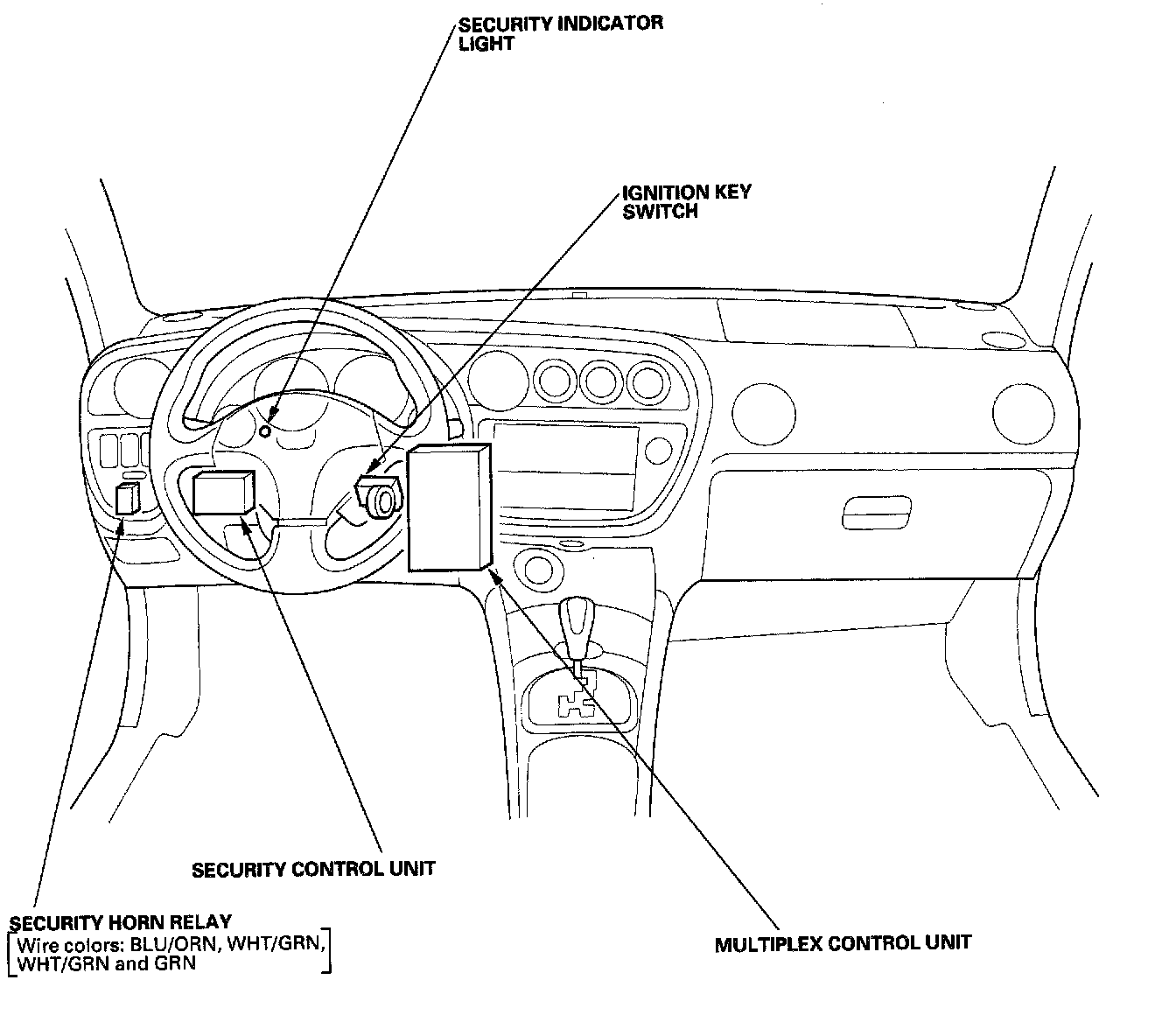

Security Alarm System Component Location Index Part 1:

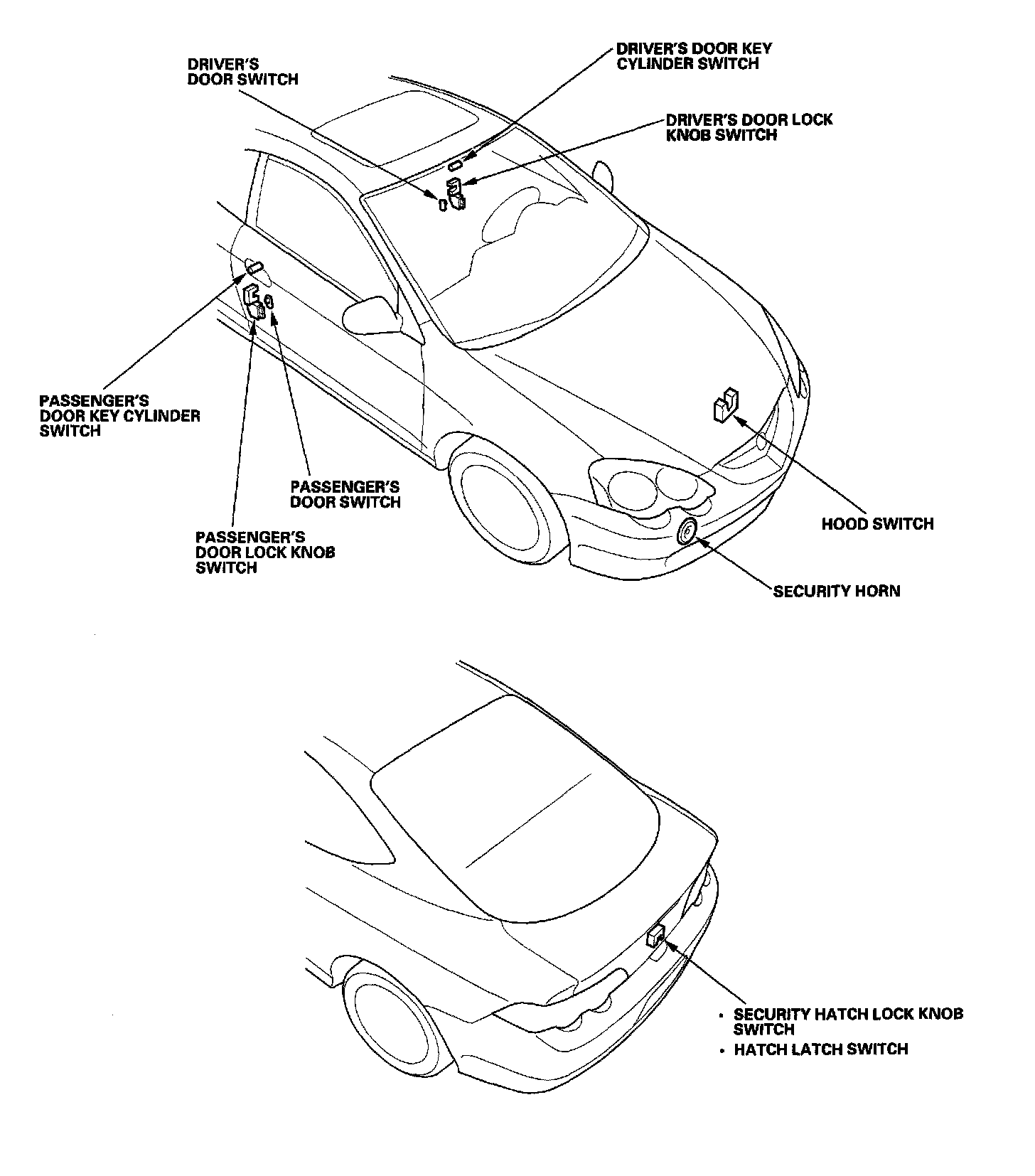

Security Alarm System Component Location Index Part 2:
