Antenna Amplifier: Testing and Inspection
Window Antenna Coil Test1. Open the hatch.
2. Remove the hatch trim panel.

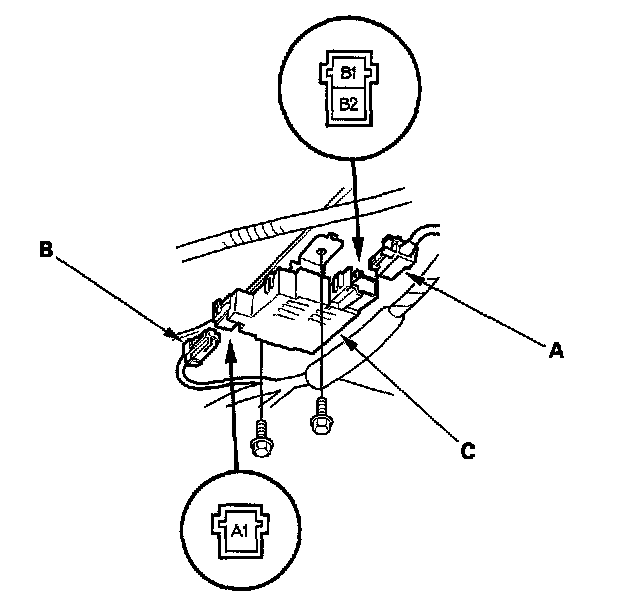

3. Disconnect the 1P connector (A) and 2P connector (B) from the window antenna coil (C).
4. Check for continuity between the terminal B2 and body ground, and between terminal A1 and B1. There should be continuity.
If there is no continuity, go to step 5.
5. Loosen the two bolts, and replace the window antenna coil.
