Differential Assembly

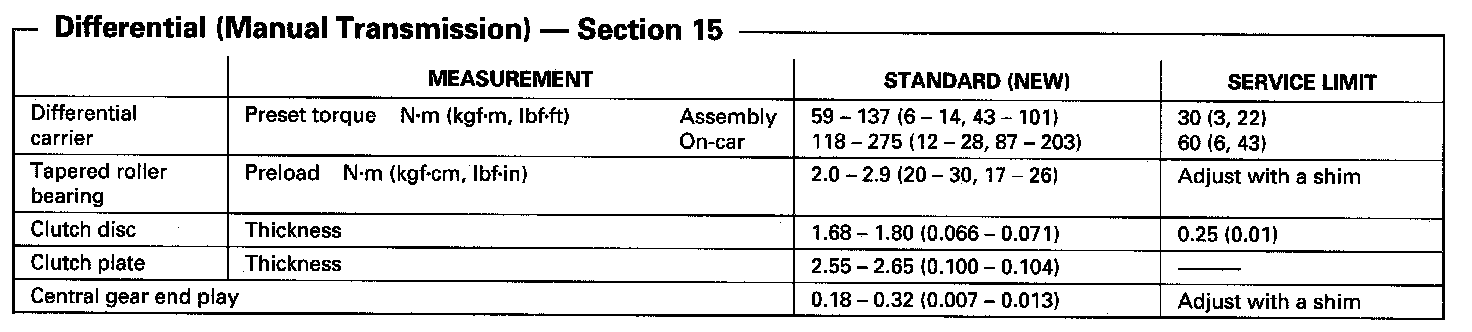

Differential (Manual Transmission) - Section 15:

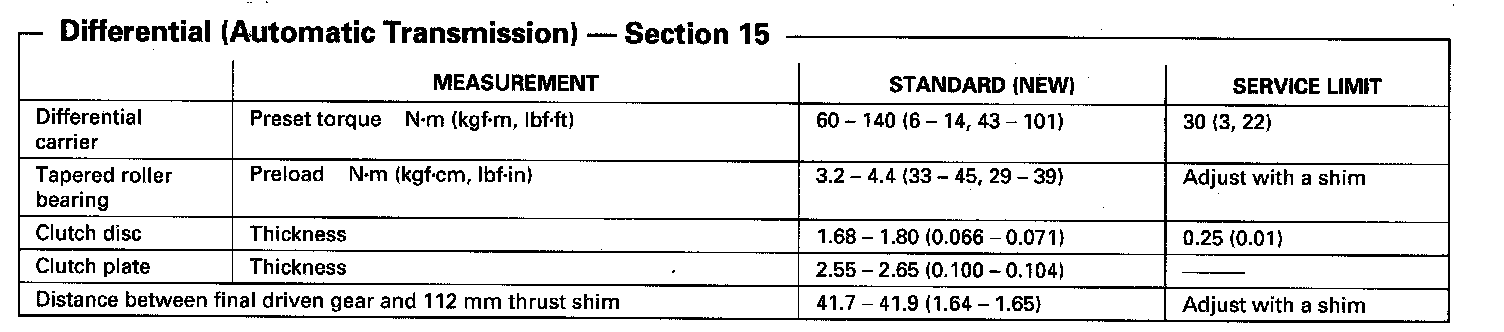

Differential (Automatic Transmission) - Section 15:
