Home >> Acura >> 2002 >> NSX V6-3.0L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Design Specification

Design Specification

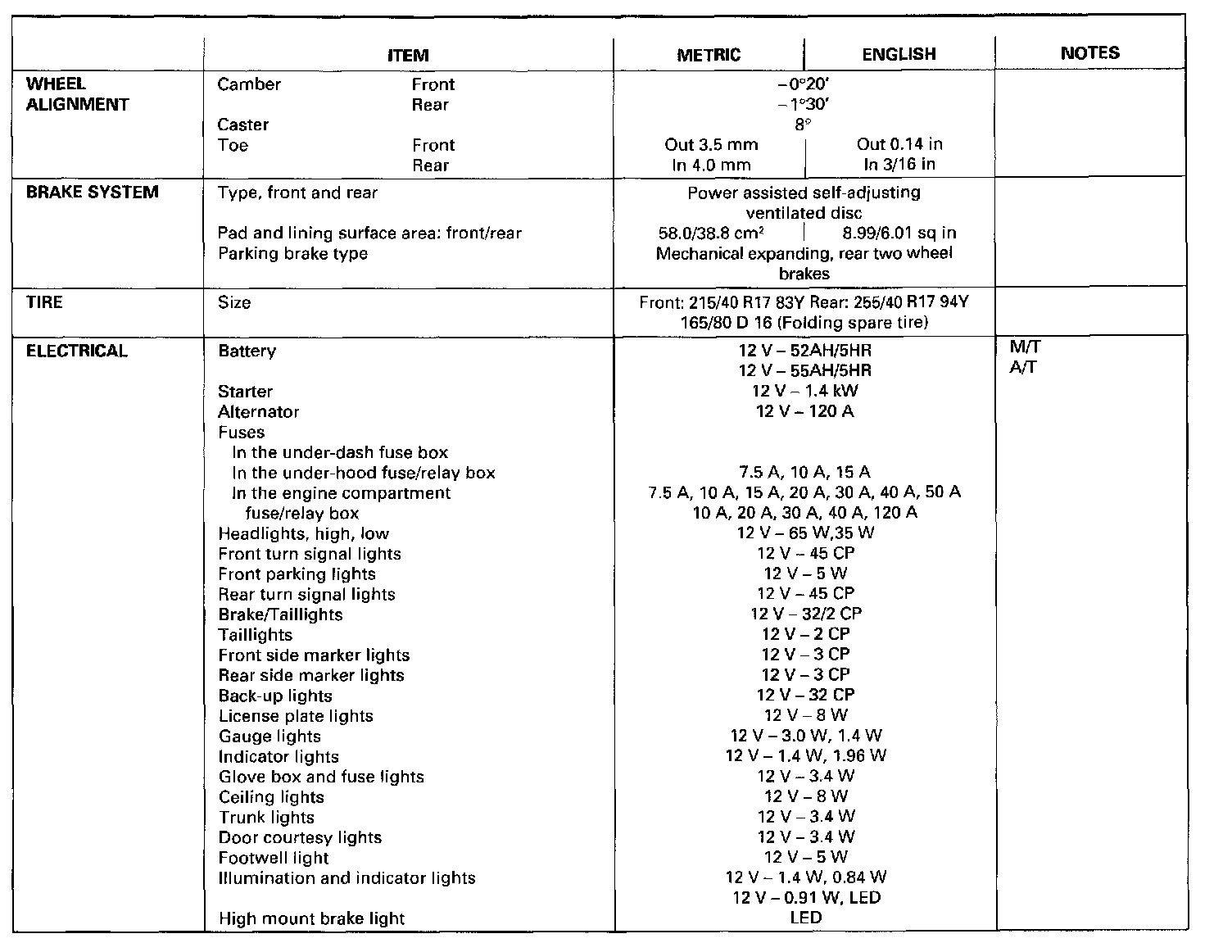

Design Specifications - Part 1:

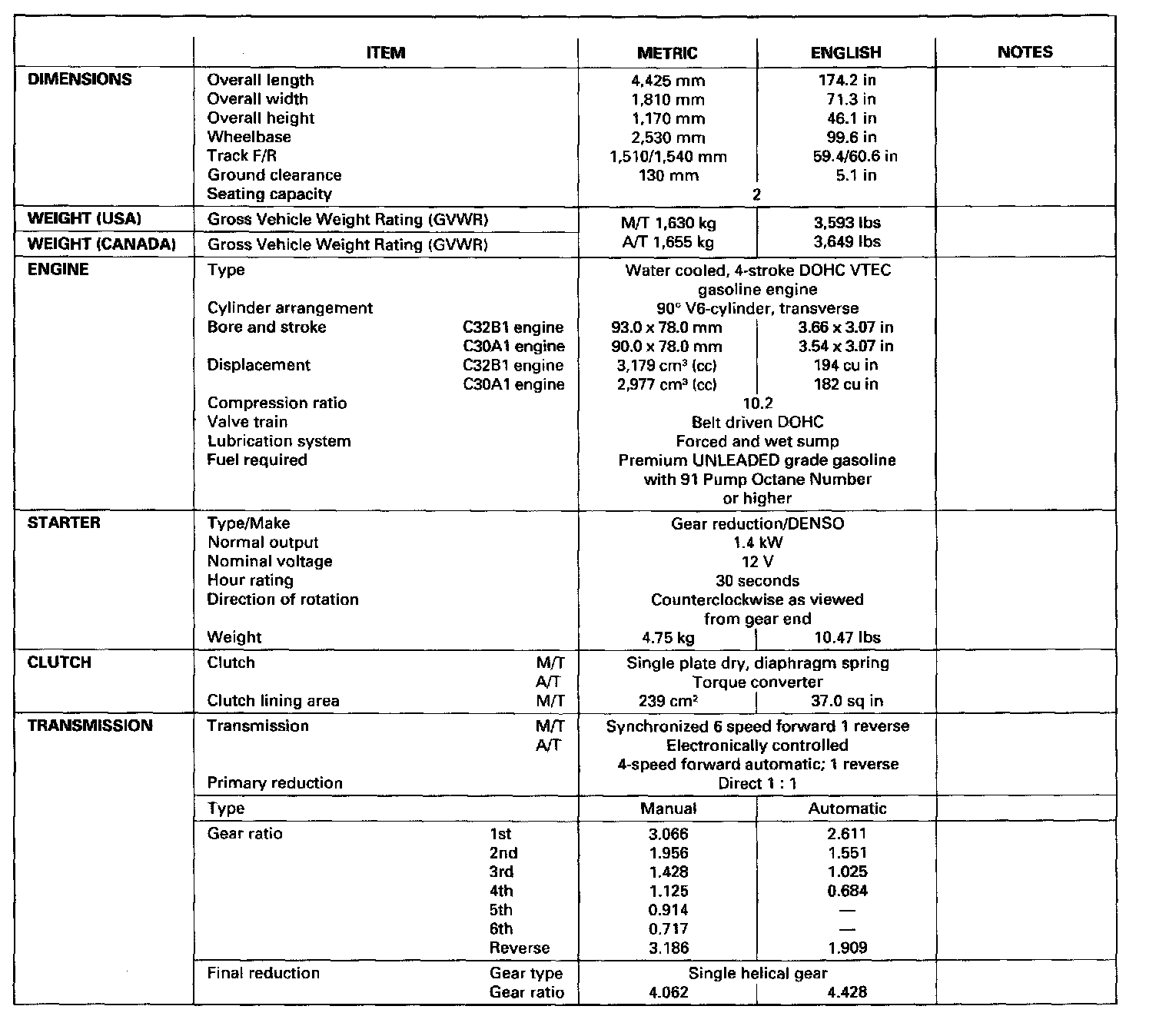

Design Specifications - Part 2:

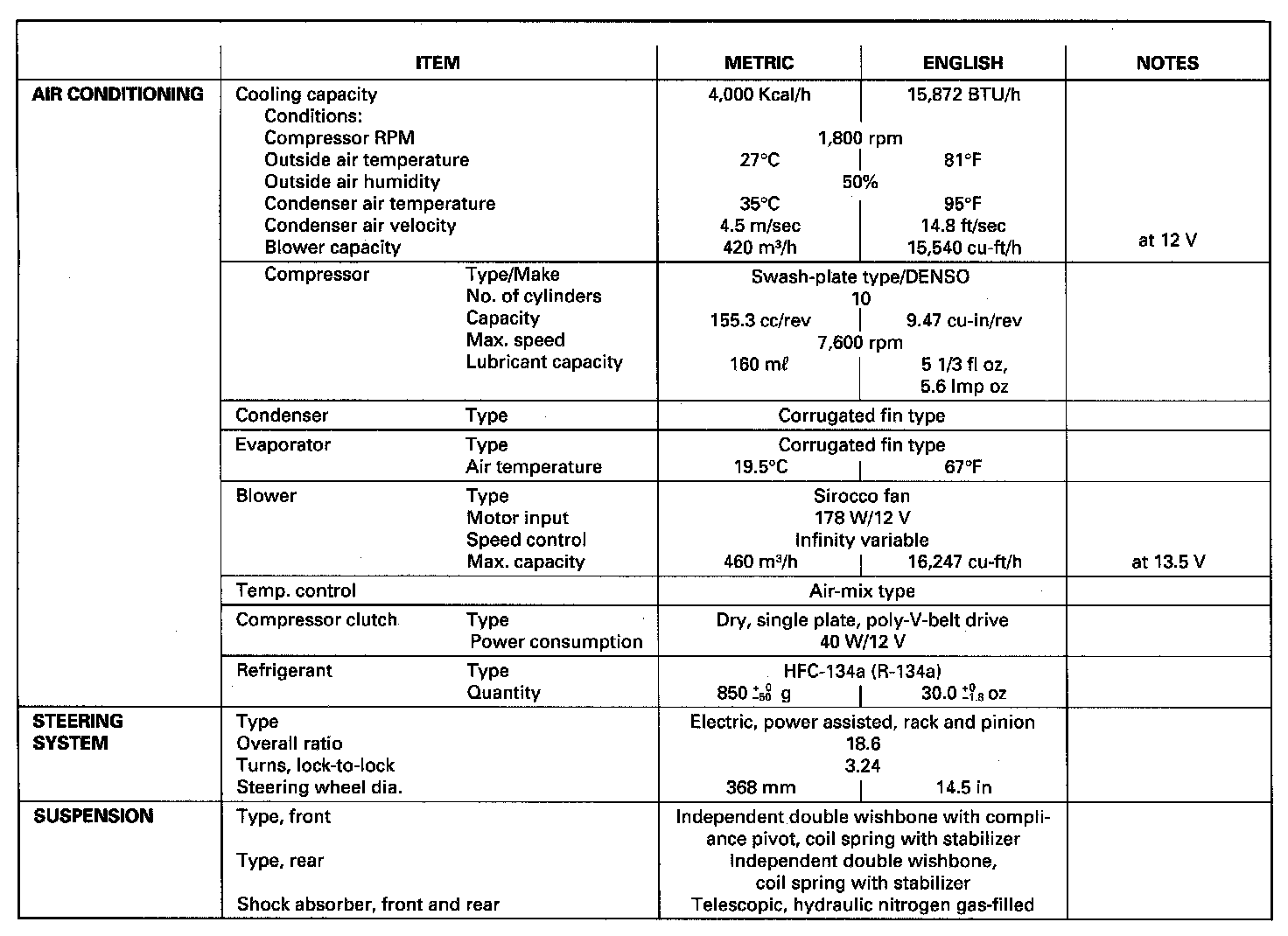

Design Specification - Part 3:
