Home >> Acura >> 2002 >> 3.2TL TYPE S V6-3.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

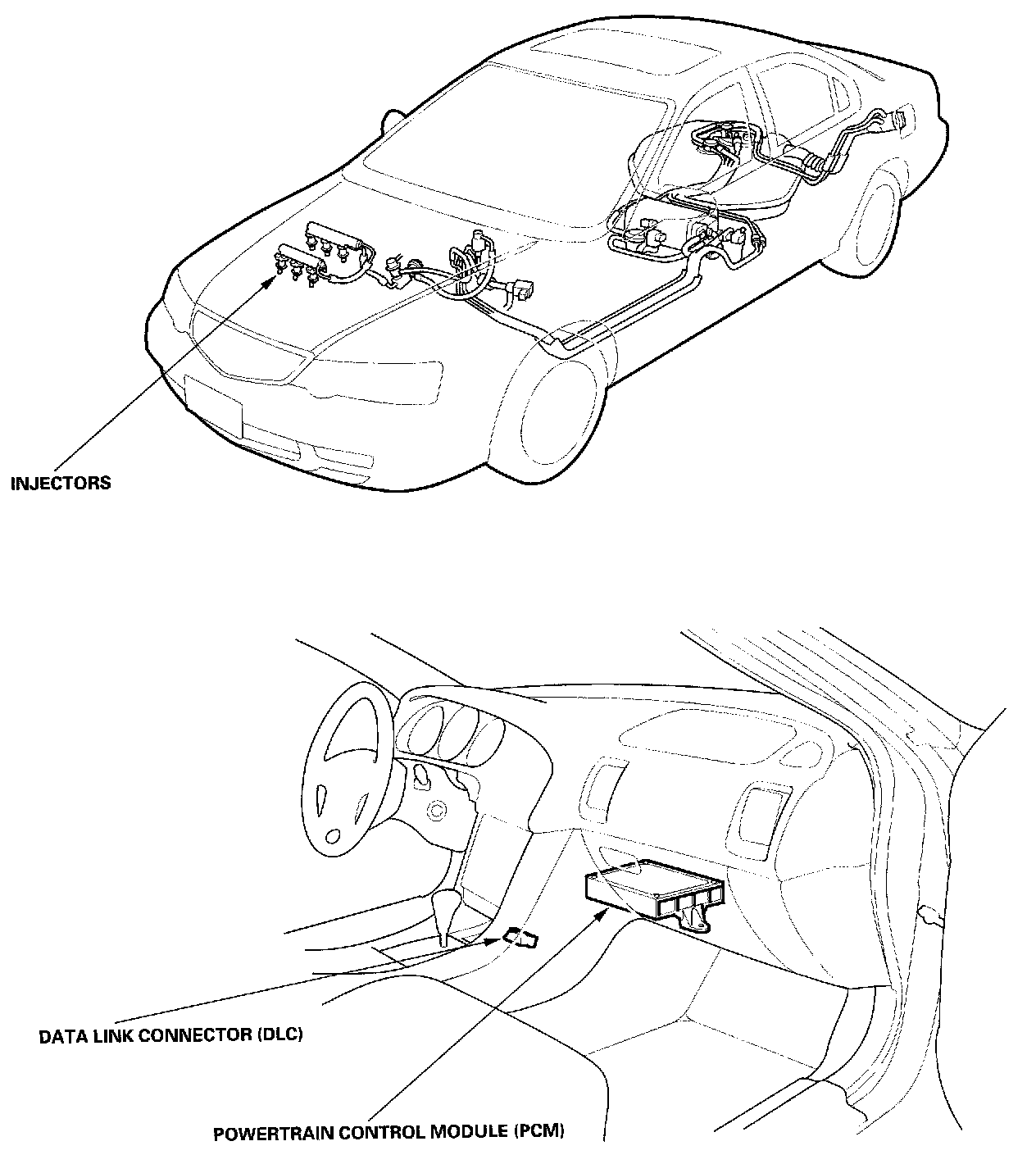

PGM-FI System Component Location Index Part 1:

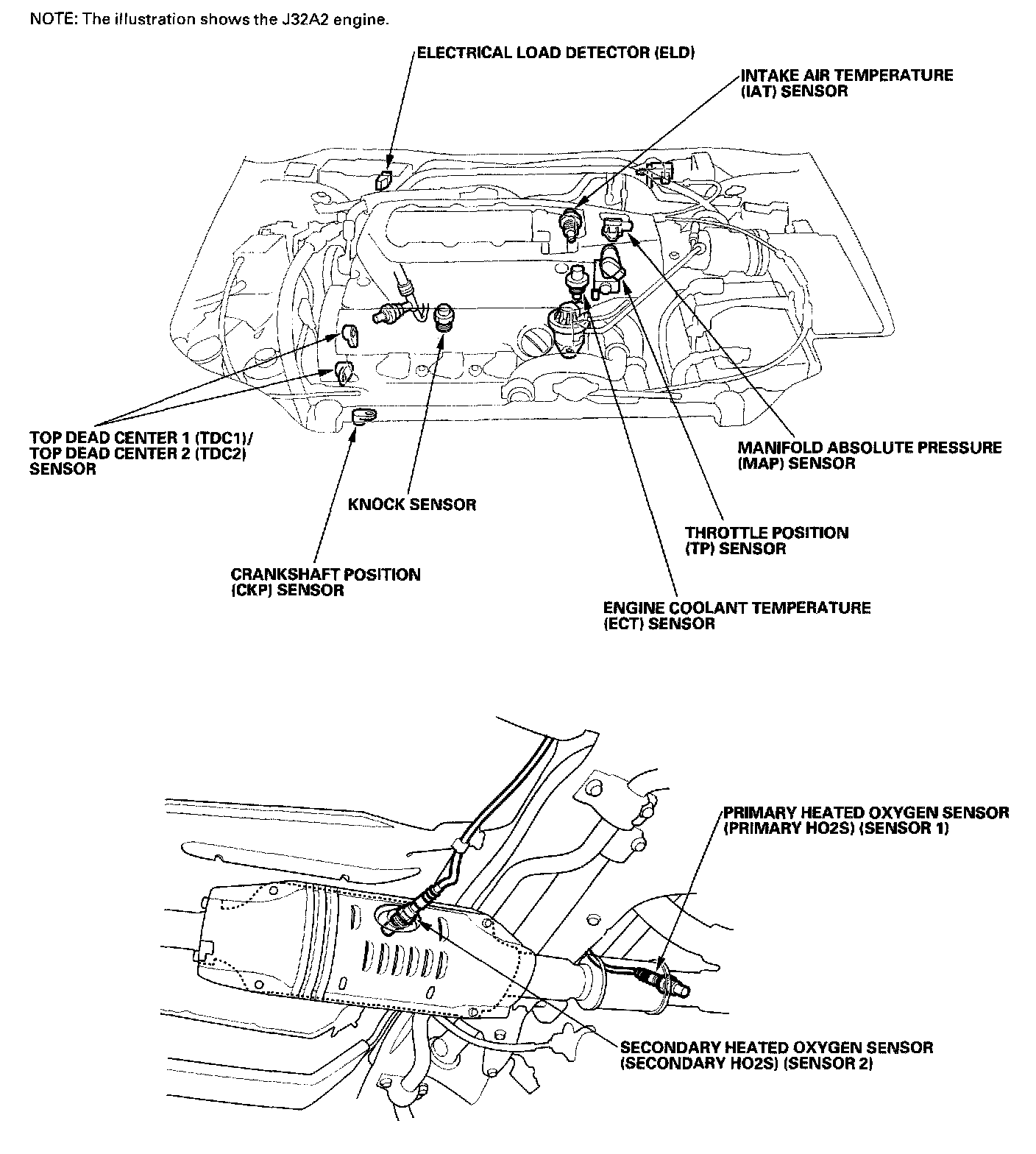

PGM-FI System Component Location Index Part 2:
