Home >> Acura >> 2002 >> 3.2TL TYPE S V6-3.2L SOHC >> Repair and Diagnosis >> Locations >> Component Locations >> Relay and Control Unit Locations >> Engine Compartment

Engine Compartment

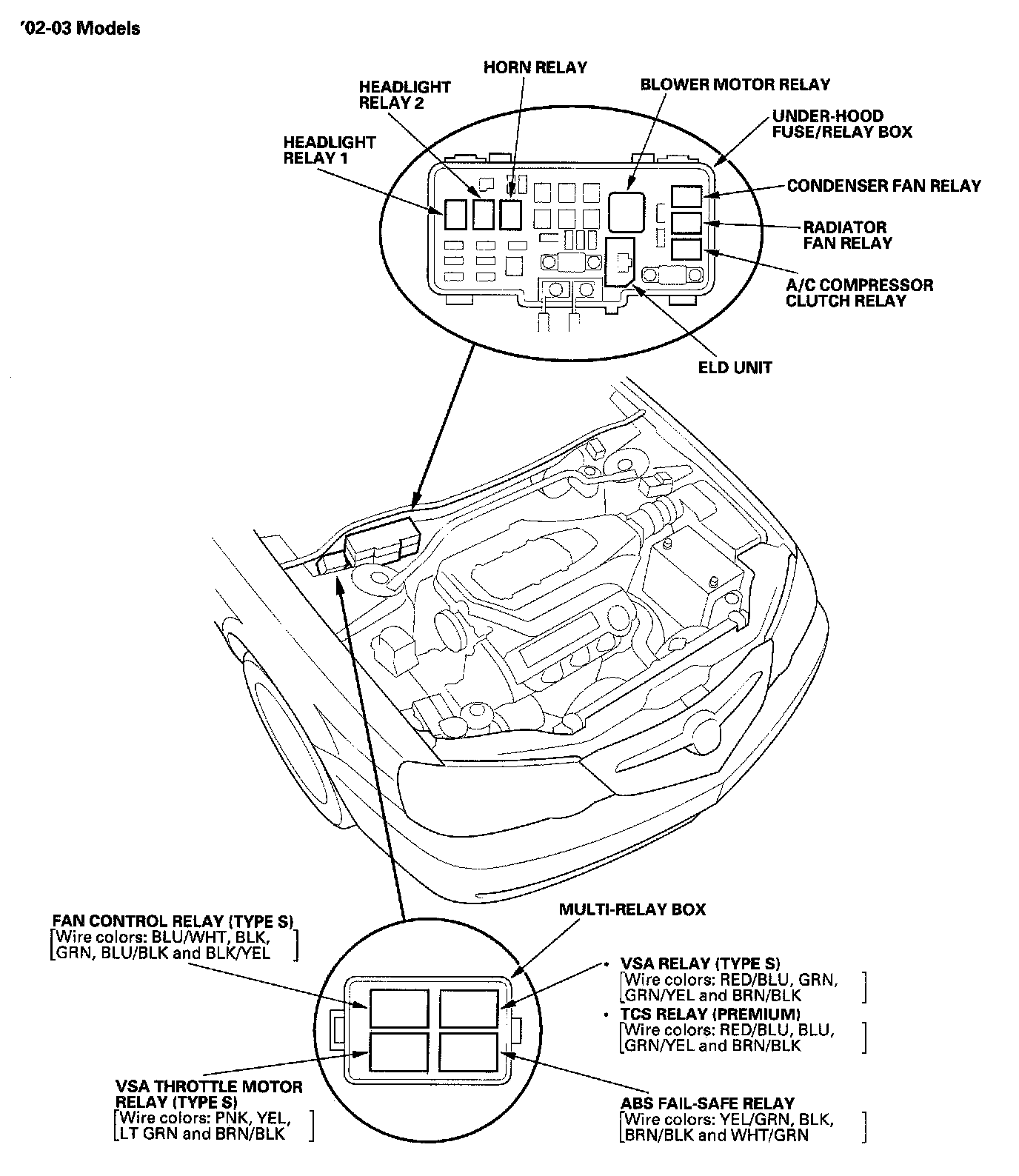

Relay And Control Unit Locations - Engine Compartment:

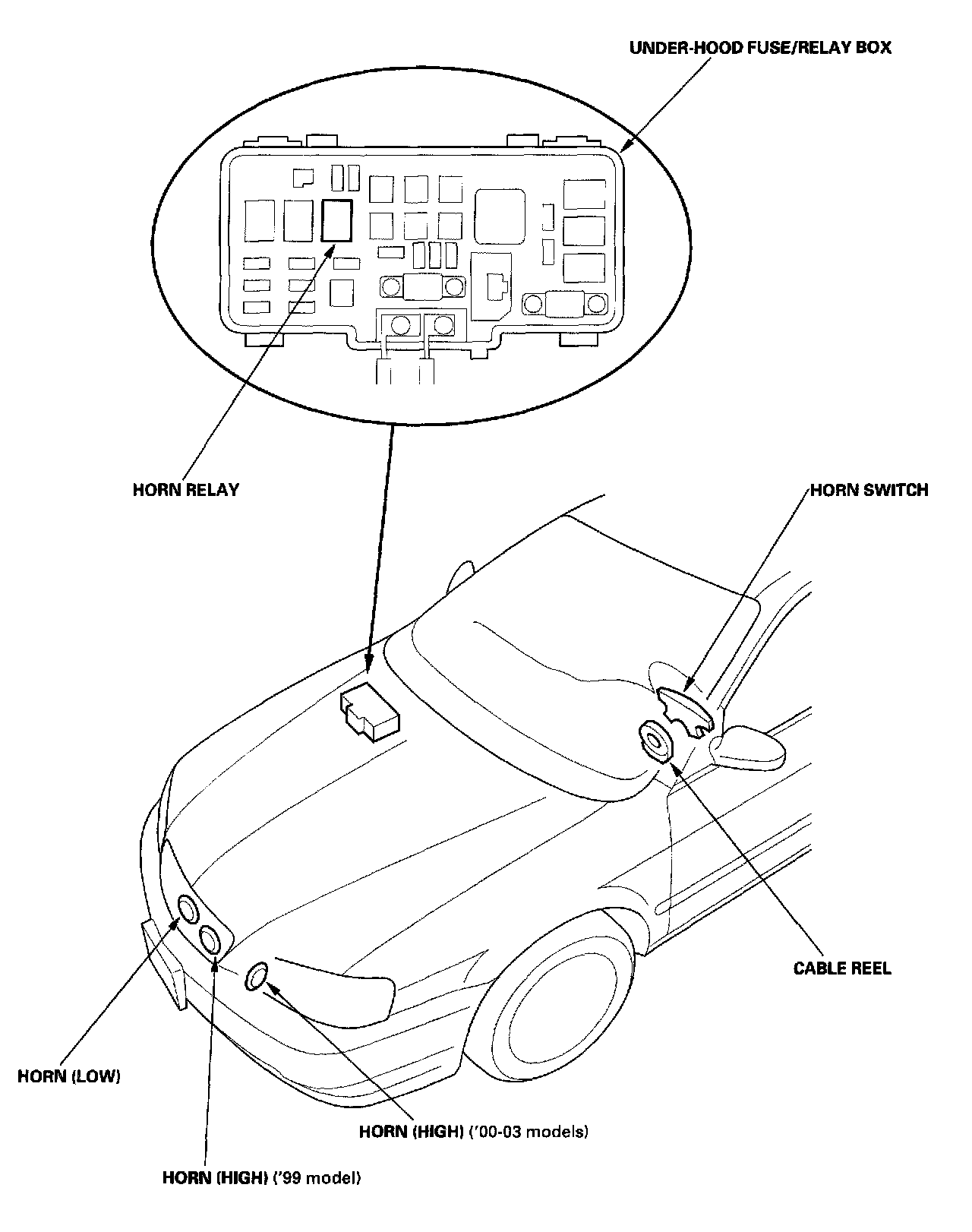

Horn - Component Location Index:
