Intake Manifold

Intake Manifold Removal and Installation

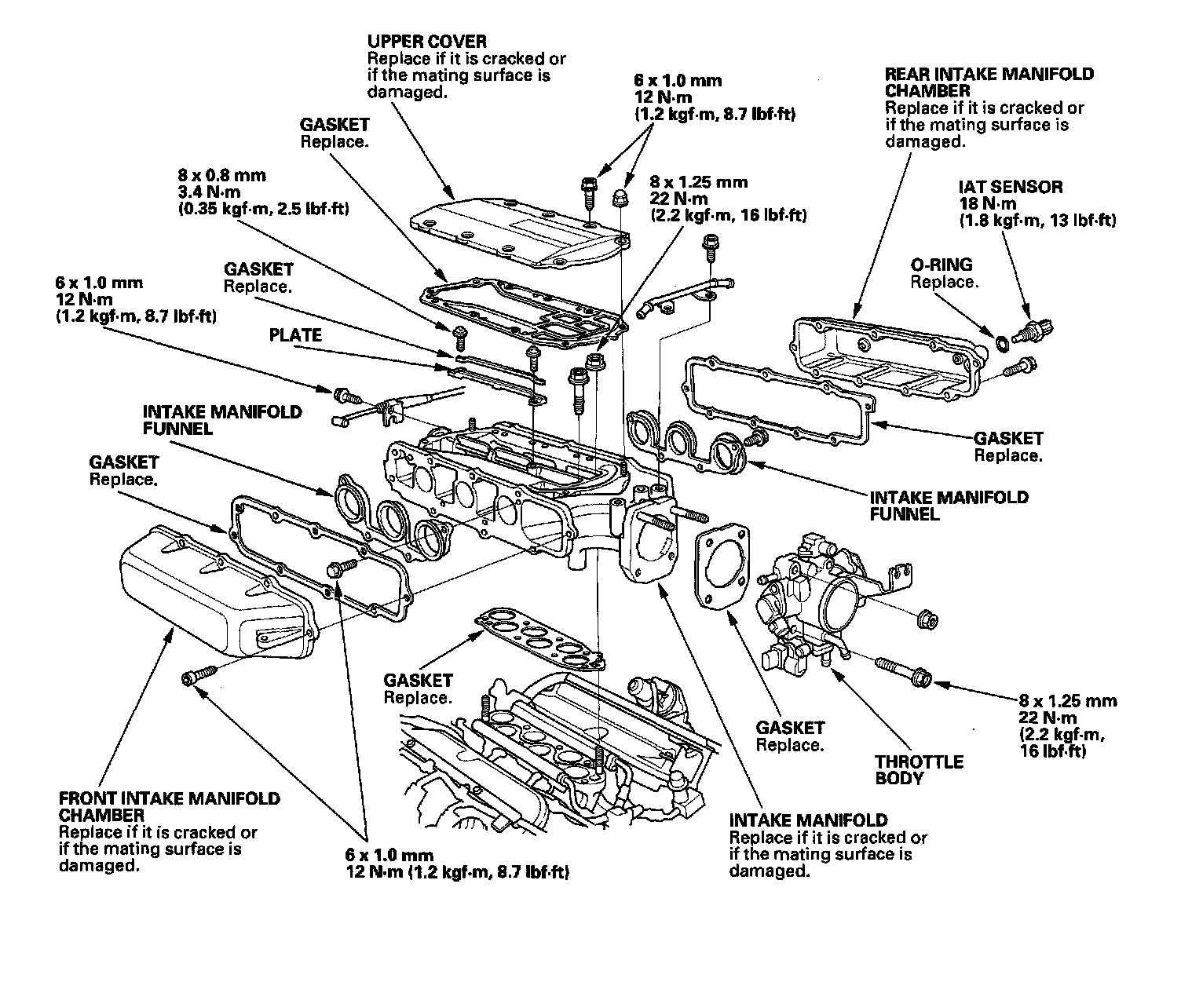

Exploded View-J32A1 engine ('00-03 models)





Exploded View-J32A2 engine:
