FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Acura
>>
2002
>>
3.2TL TYPE S V6-3.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Traction Control Module
Traction Control Module

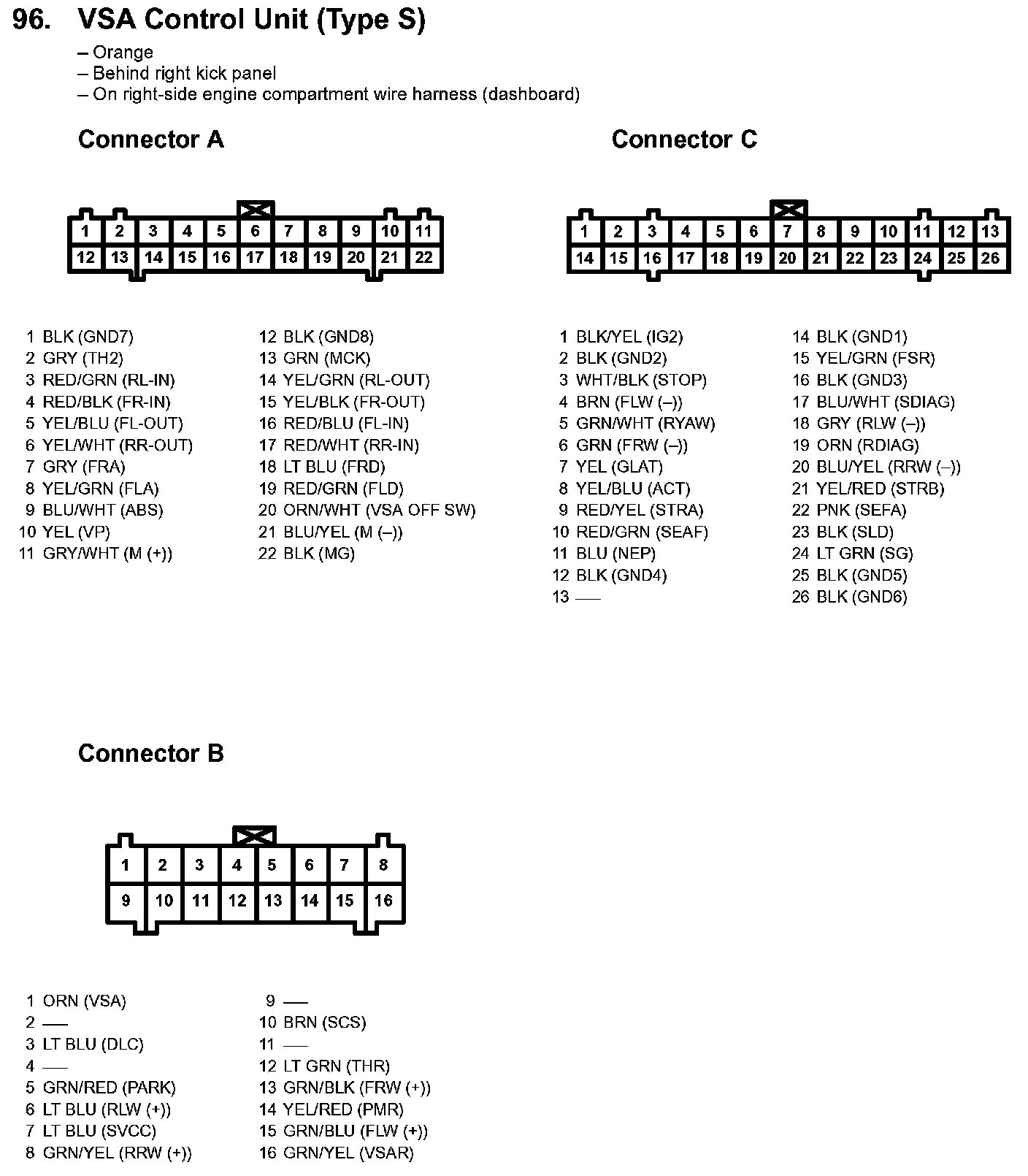

96. VSA Control Unit (Type S):

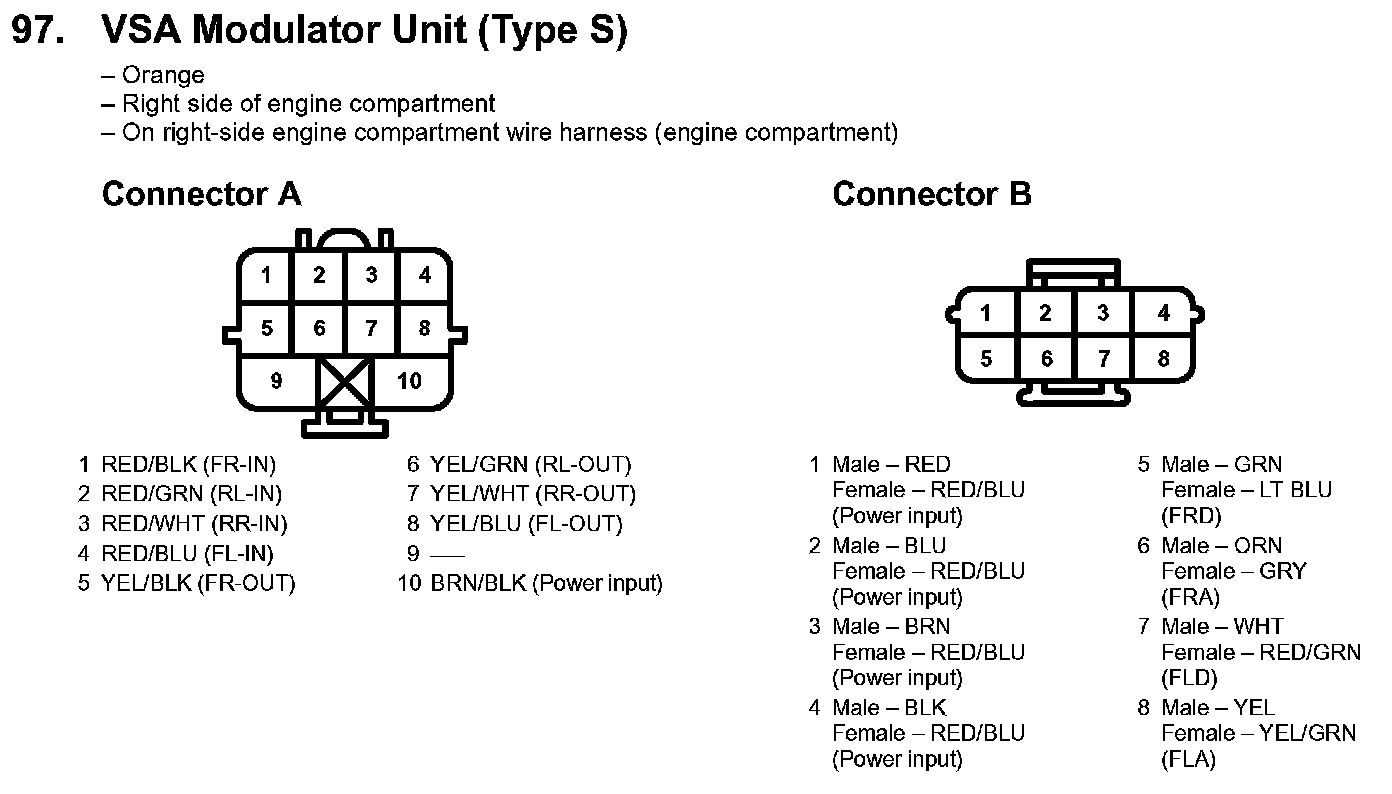

97. VSA Modulator Unit (Type S):
