Home >> Acura >> 2002 >> 3.2TL TYPE S V6-3.2L SOHC >> Repair and Diagnosis >> Body and Frame >> Frame >> Subframe >> Service and Repair

Subframe: Service and Repair

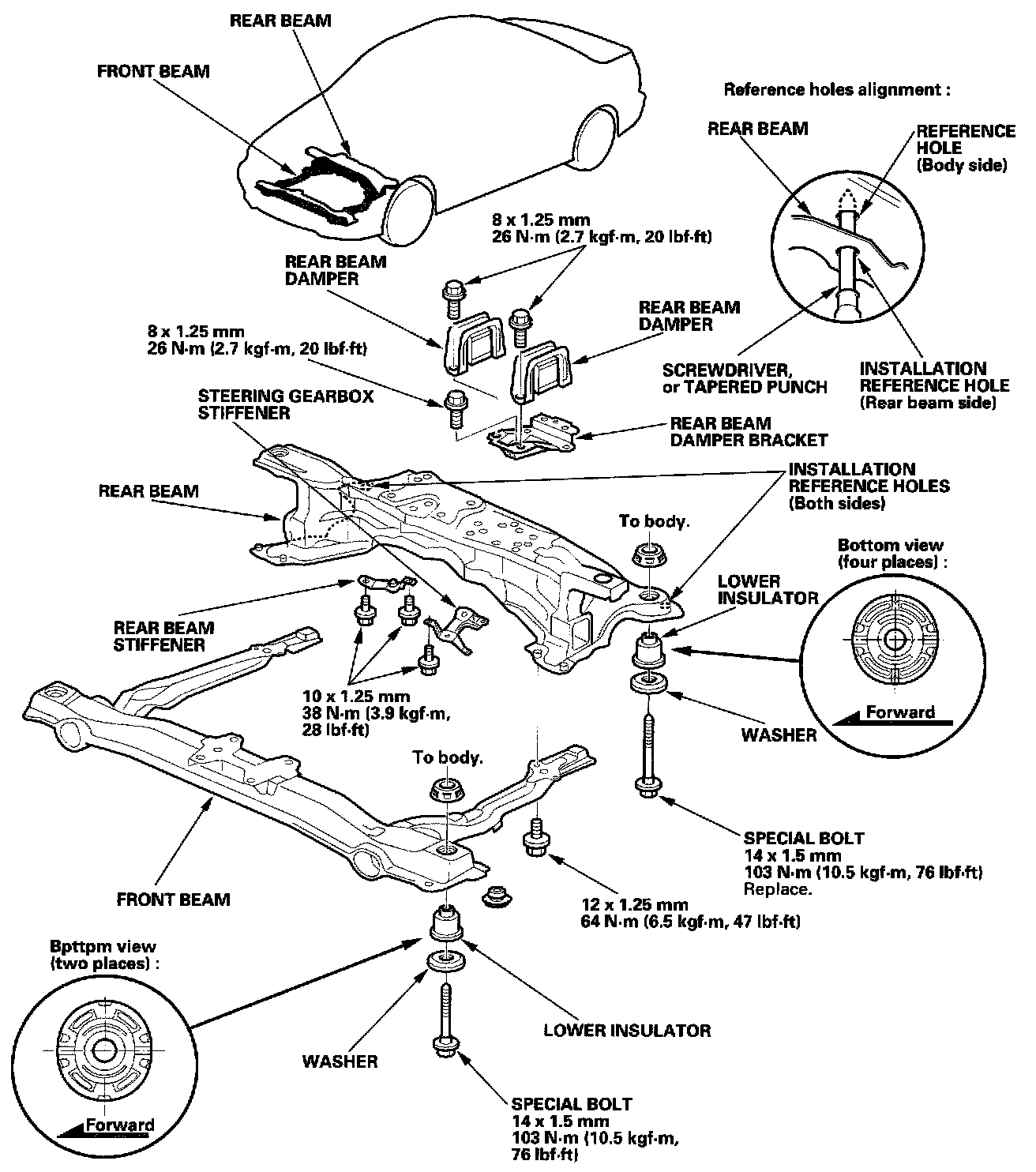

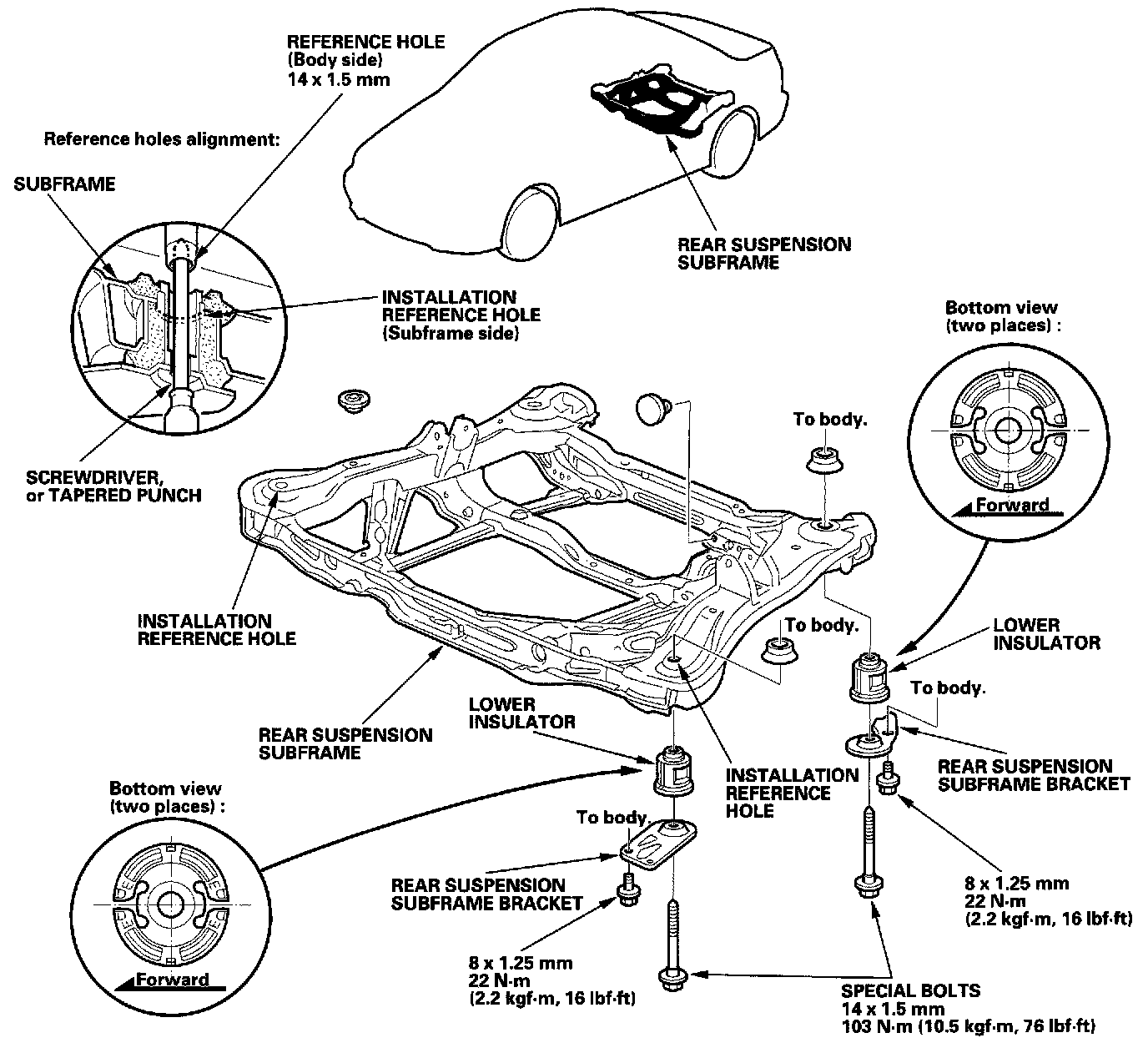

Subframe Replacement







After loosening the subframe mounting bolts, be sure to replace them with new ones.
