Component Locations

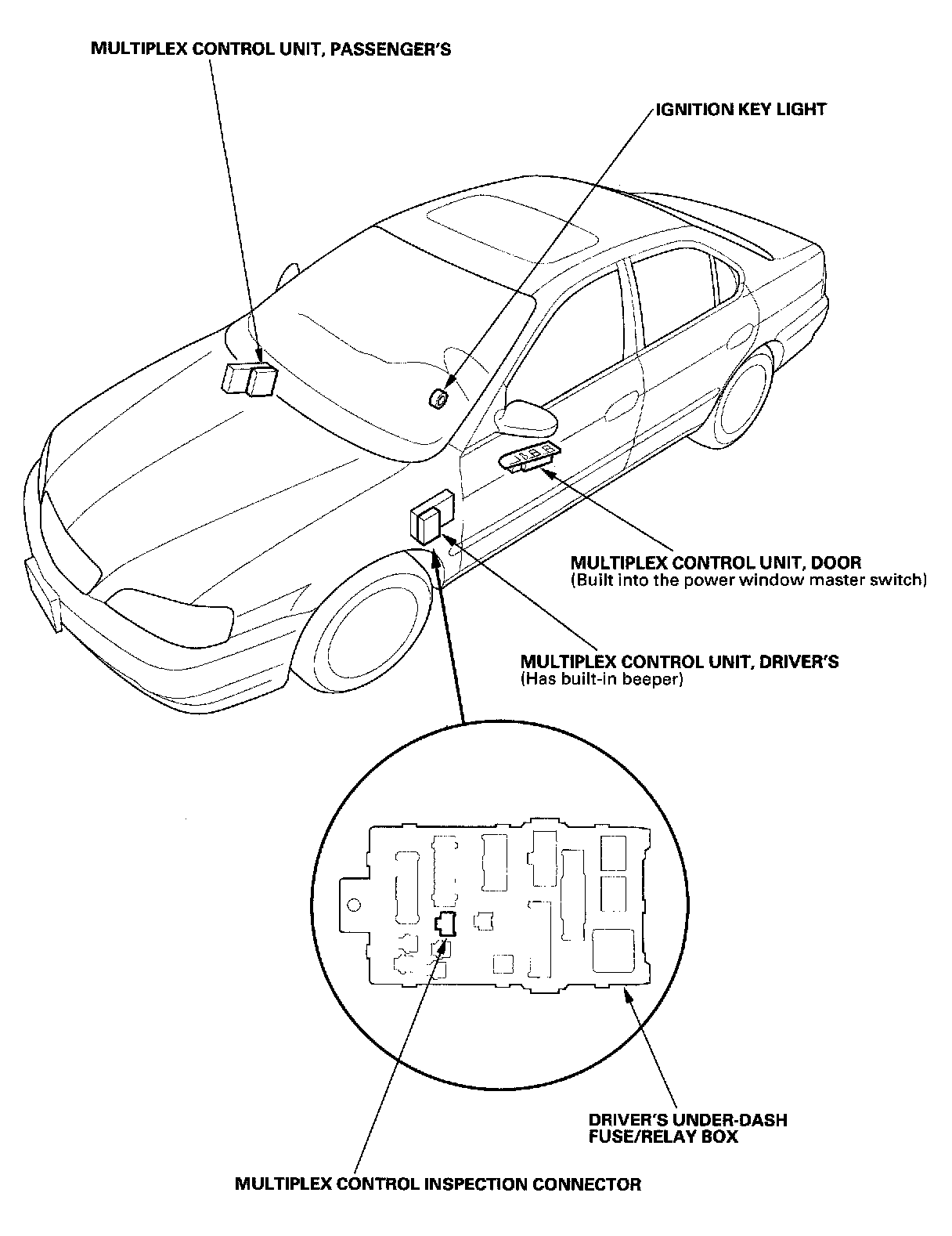

Multiplex Controls System:



Power Windows:

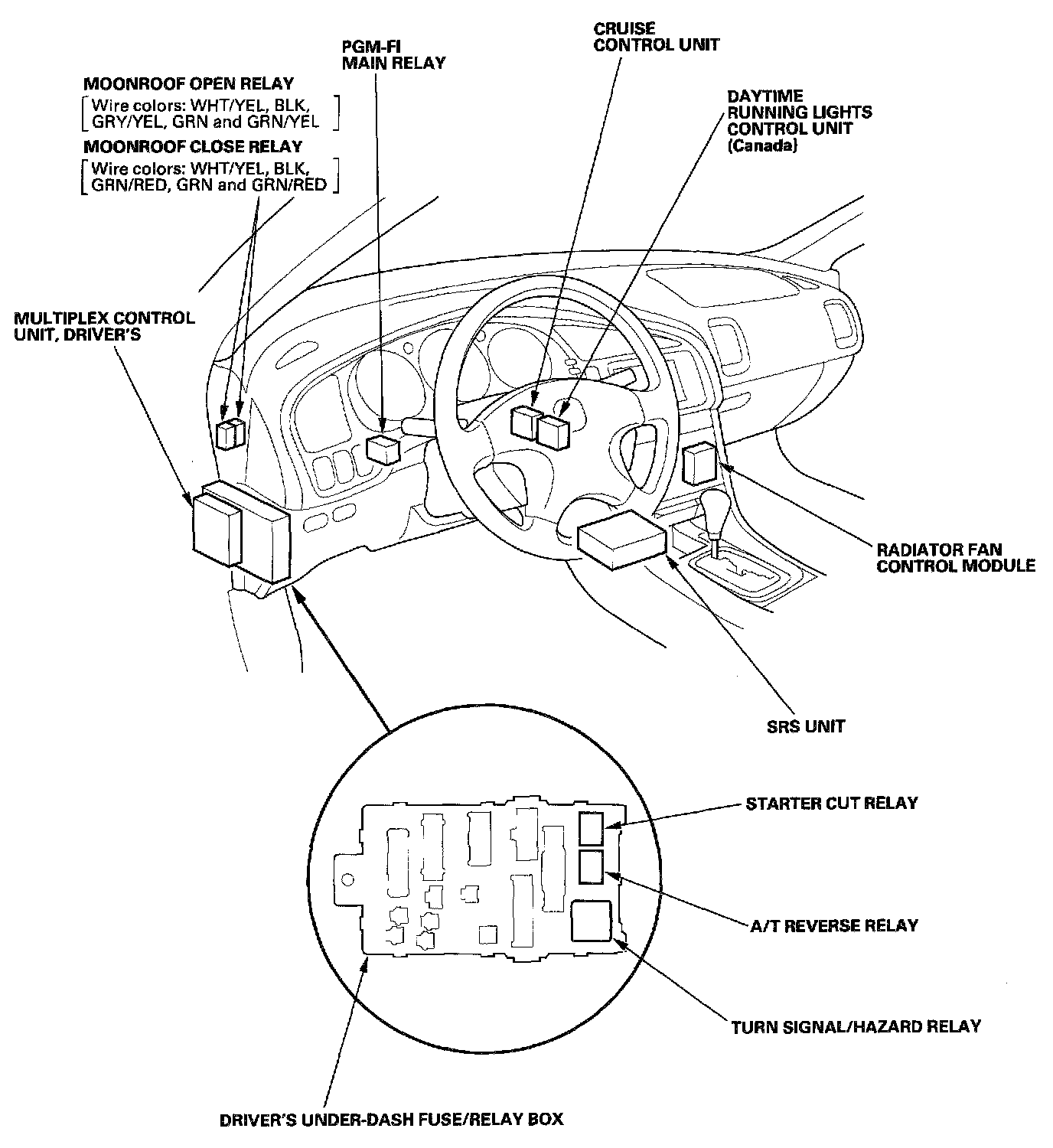

Instrument Panel View (Left Side):



Instrument Panel View (Right Side):

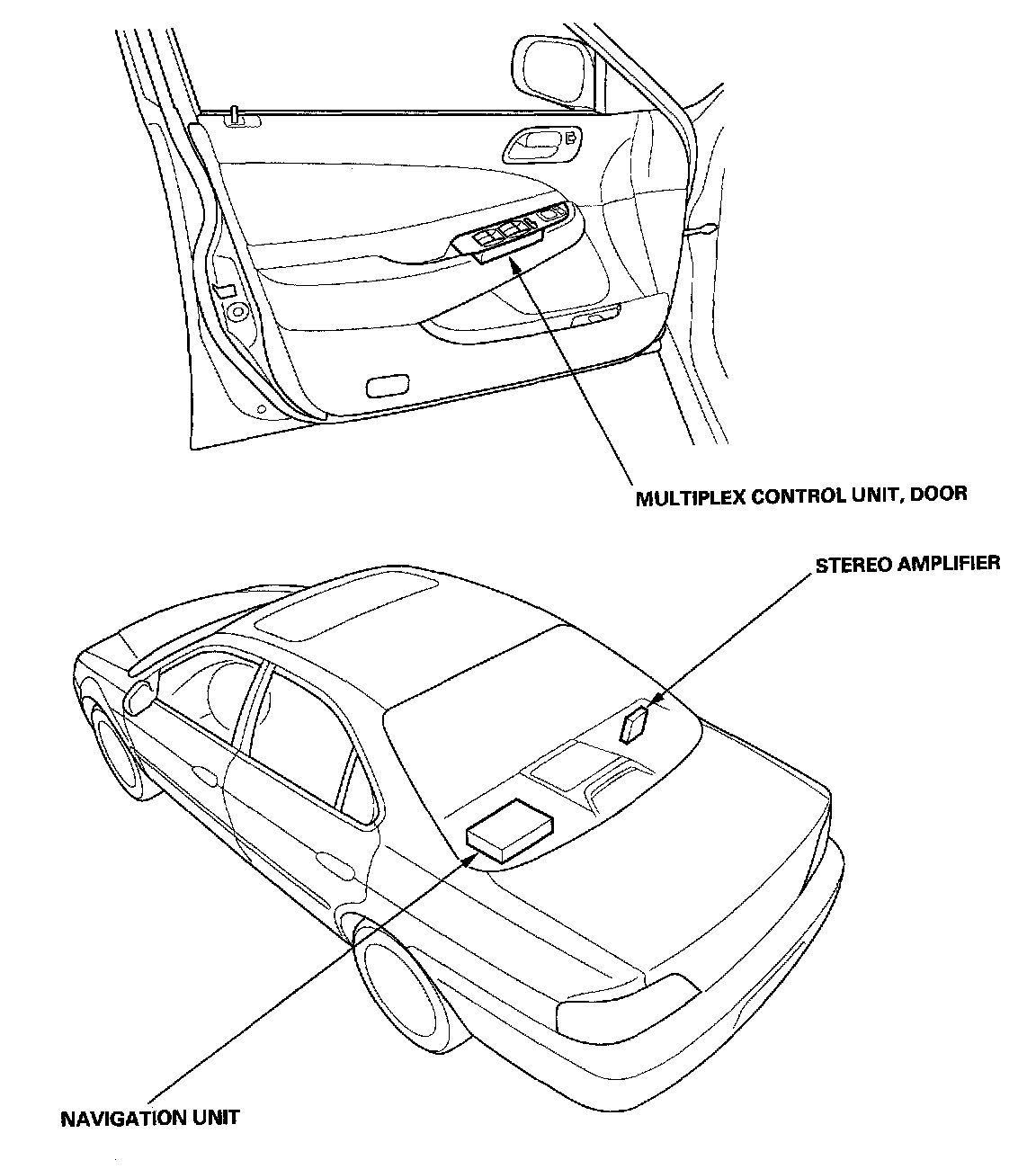

Door And Rear Bulkhead:
