Home
>>
Acura
>>
2000
>>
TL V6-3206cc 3.2L SOHC MFI
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Relay and Control Unit Locations
>>
Engine Compartment
Engine Compartment

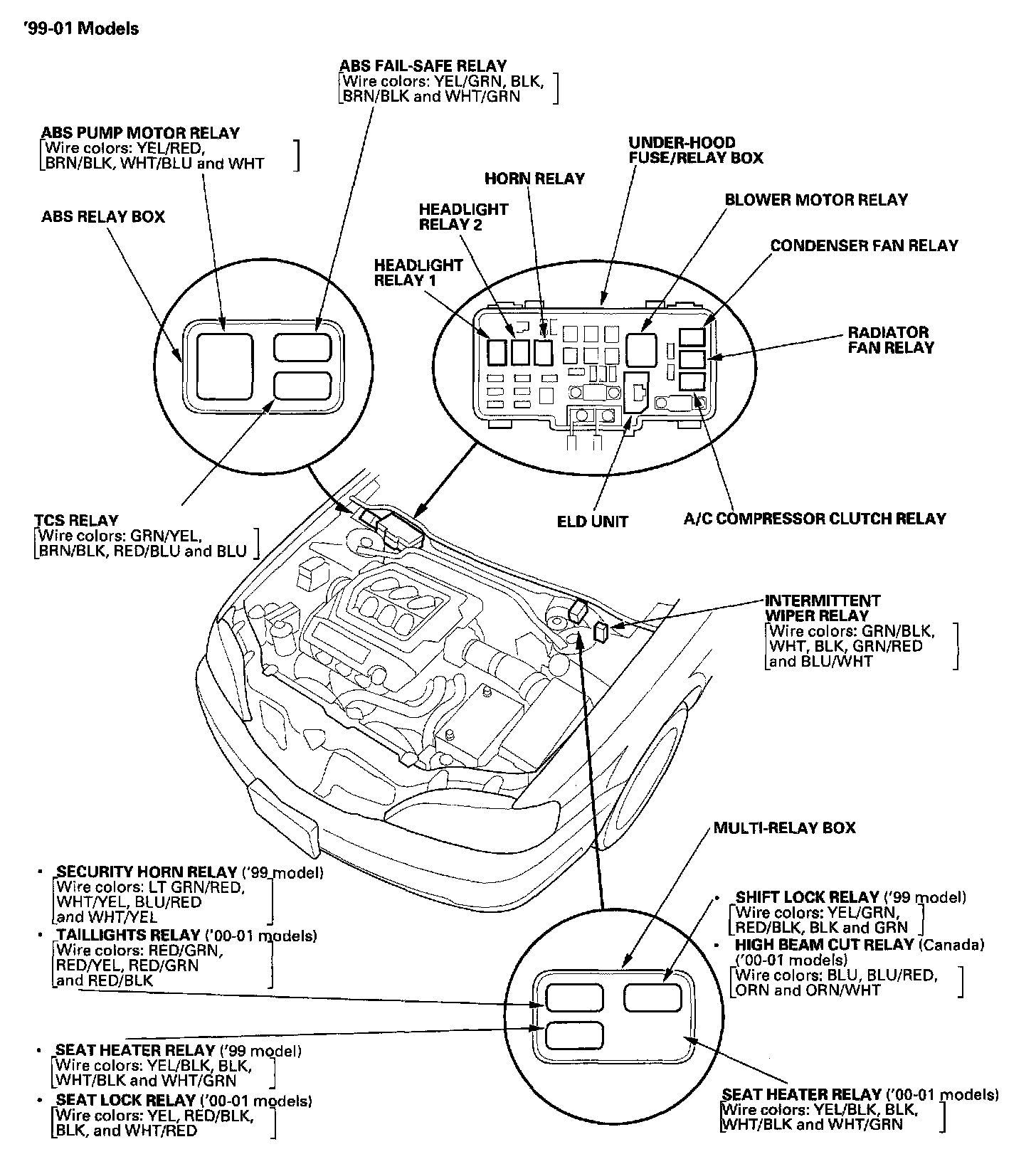

Relay And Control Unit Locations - Engine Compartment:

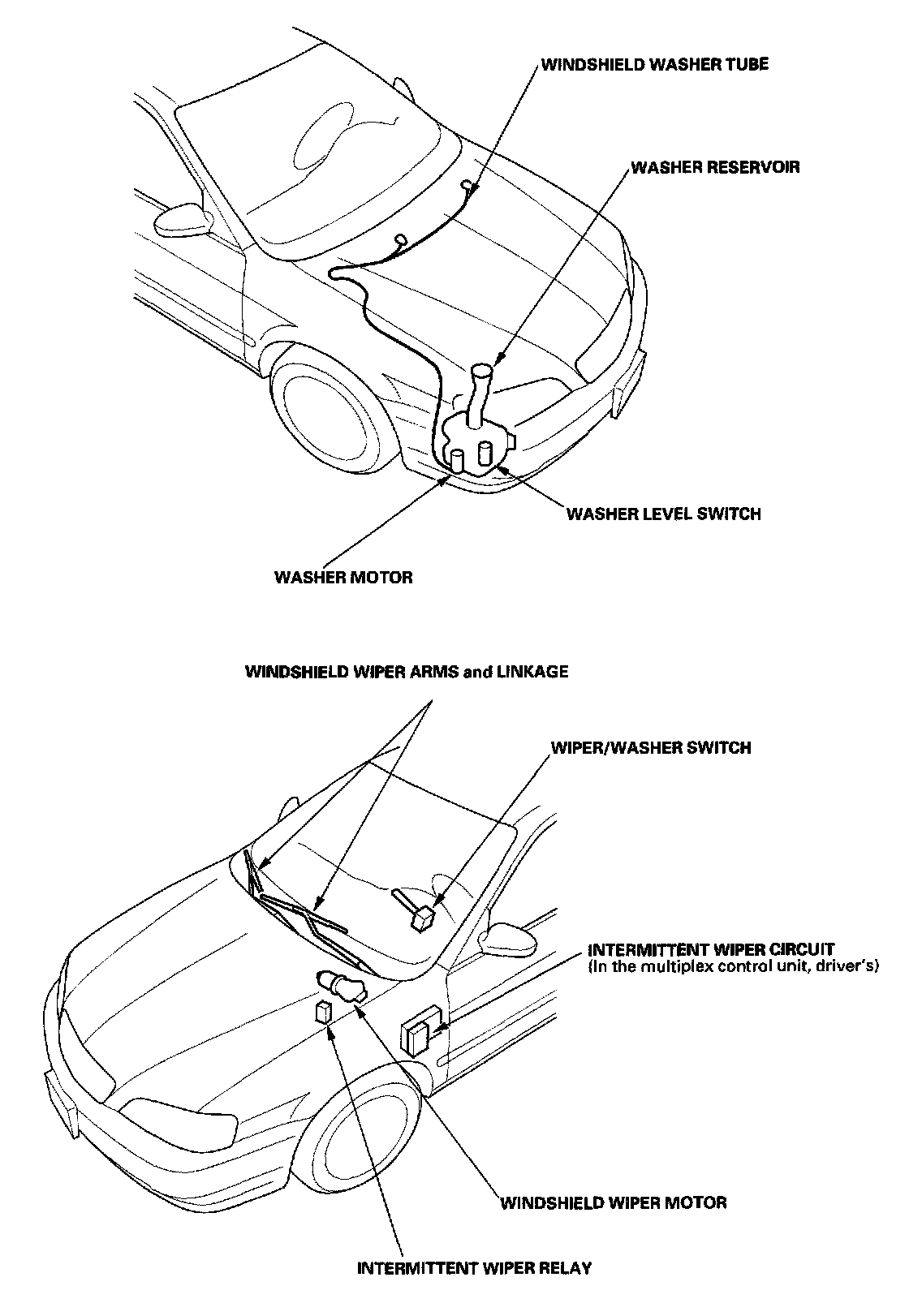

Wiper/Washer - Component Location Index:

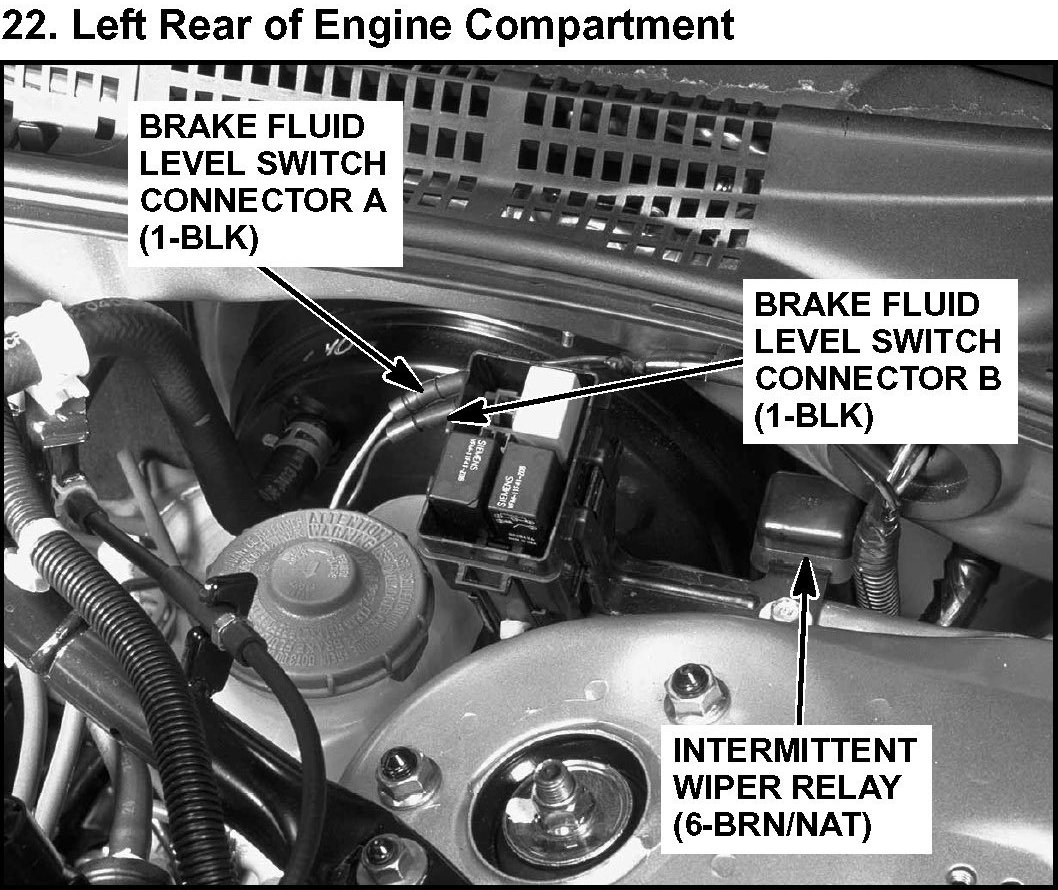

22. Left Rear Of Engine Compartment:
