Home >> Acura >> 2000 >> TL V6-3206cc 3.2L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Fuel Return Line

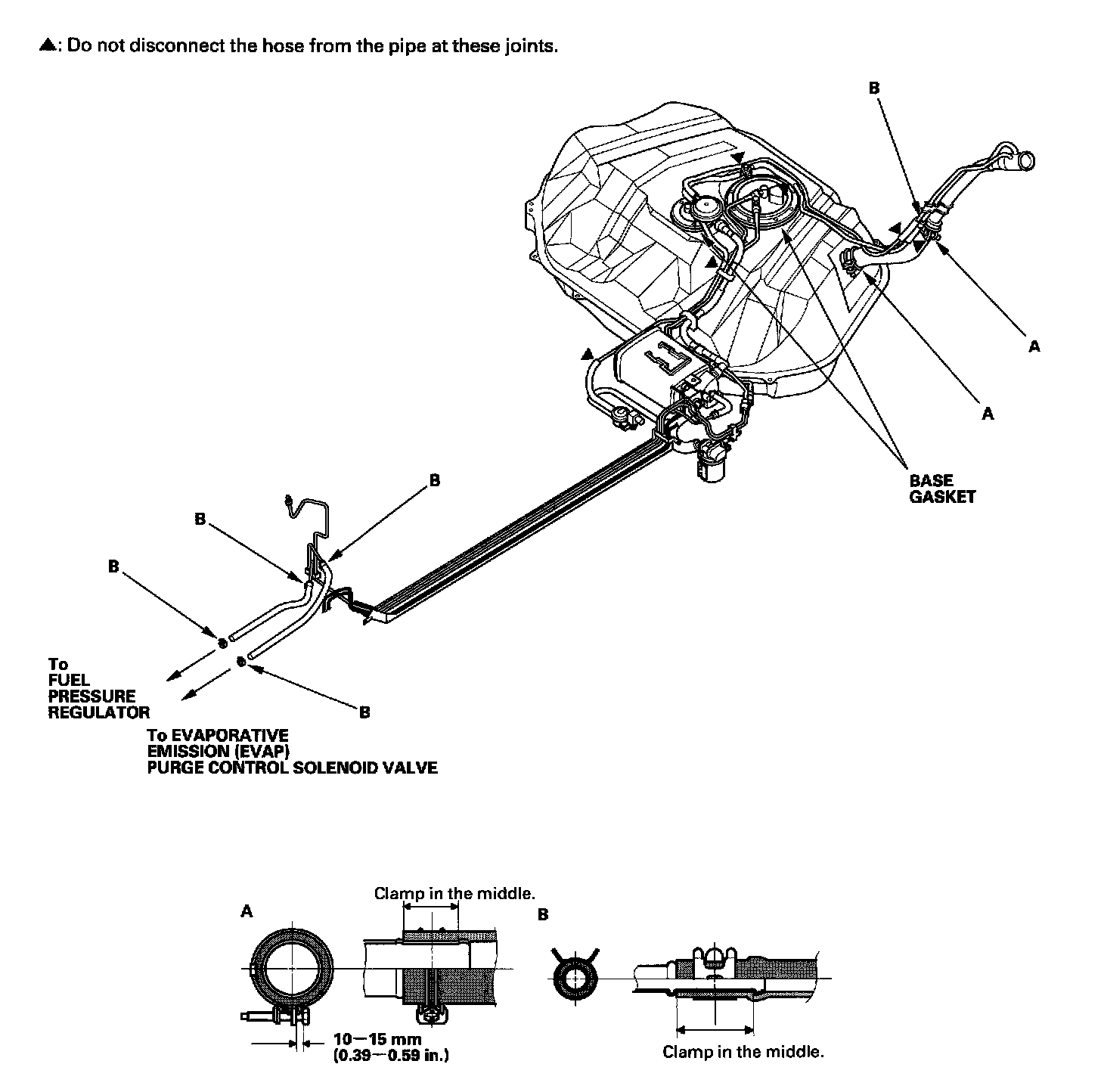

Fuel Return Line






NOTE: Check all clamps and retighten if necessary.
