FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Acura
>>
2000
>>
TL V6-3206cc 3.2L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
General Module
>>

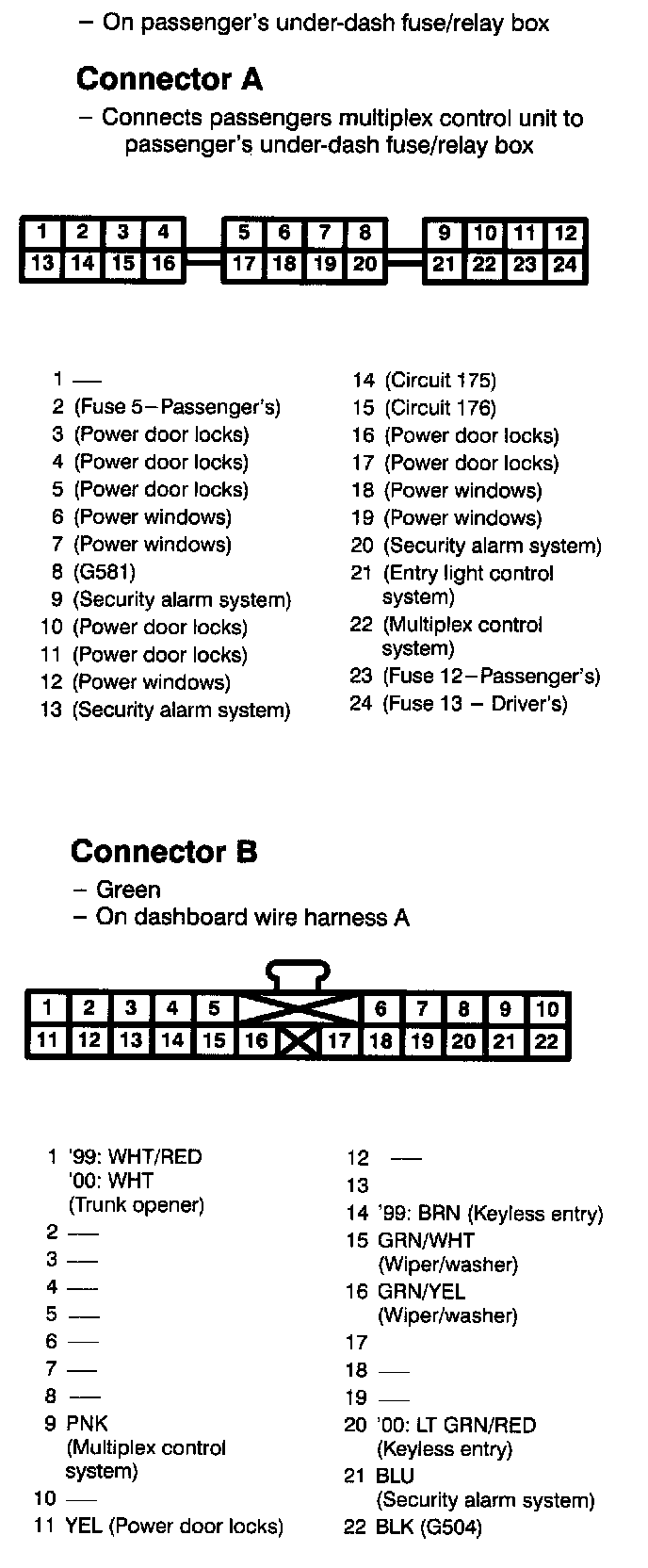

Multiplex Control Unit, Passenger's
Multiplex Control Unit, Passenger's
