Home >> Acura >> 2000 >> NSX V6-3.0L DOHC (VTEC) >> Repair and Diagnosis >> Wiper and Washer Systems >> Locations

Wiper and Washer Systems: Locations

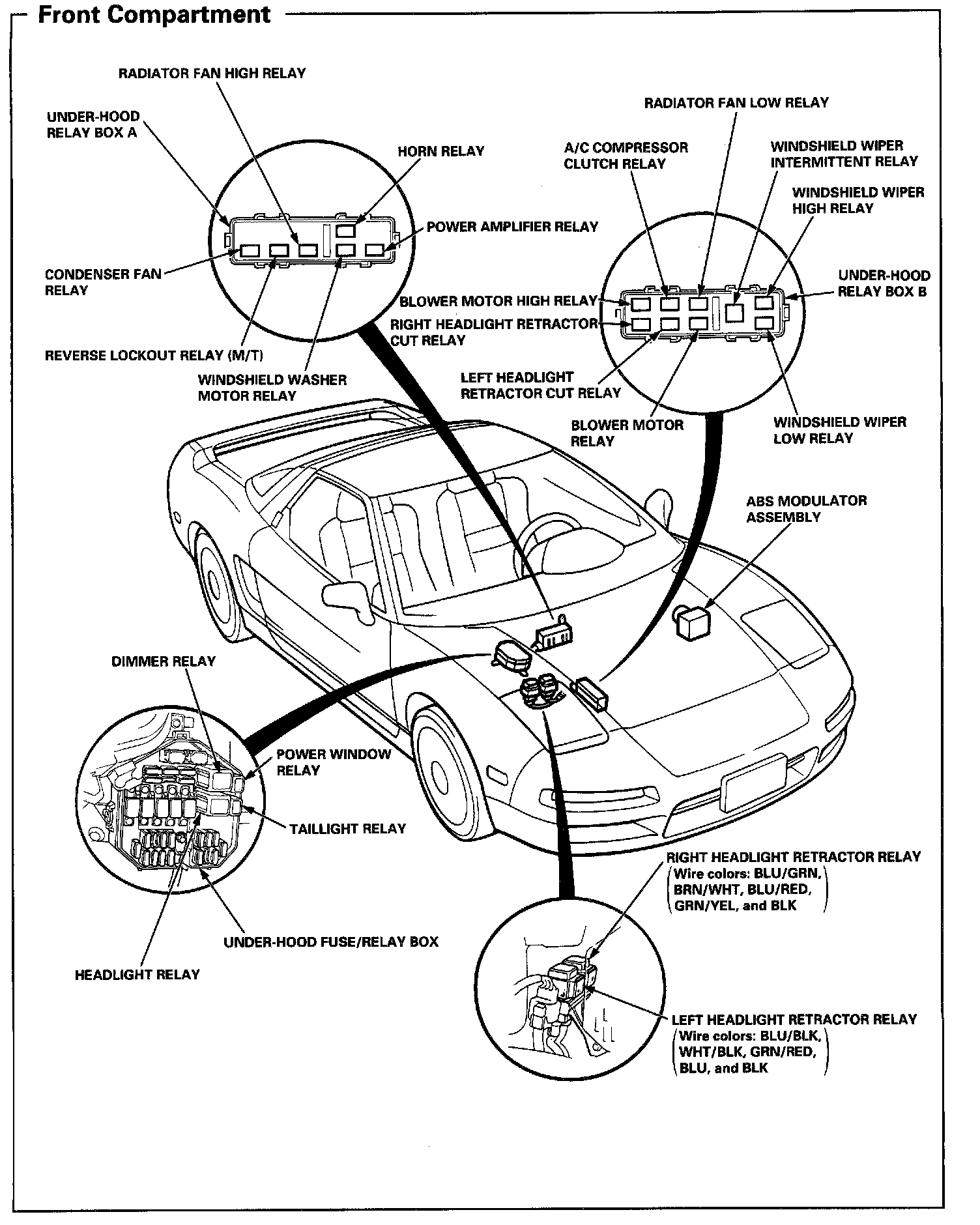

20. Under-hood Relay Box A (Cover Removed):
