Child Seat Tether Attachment: Service and Repair

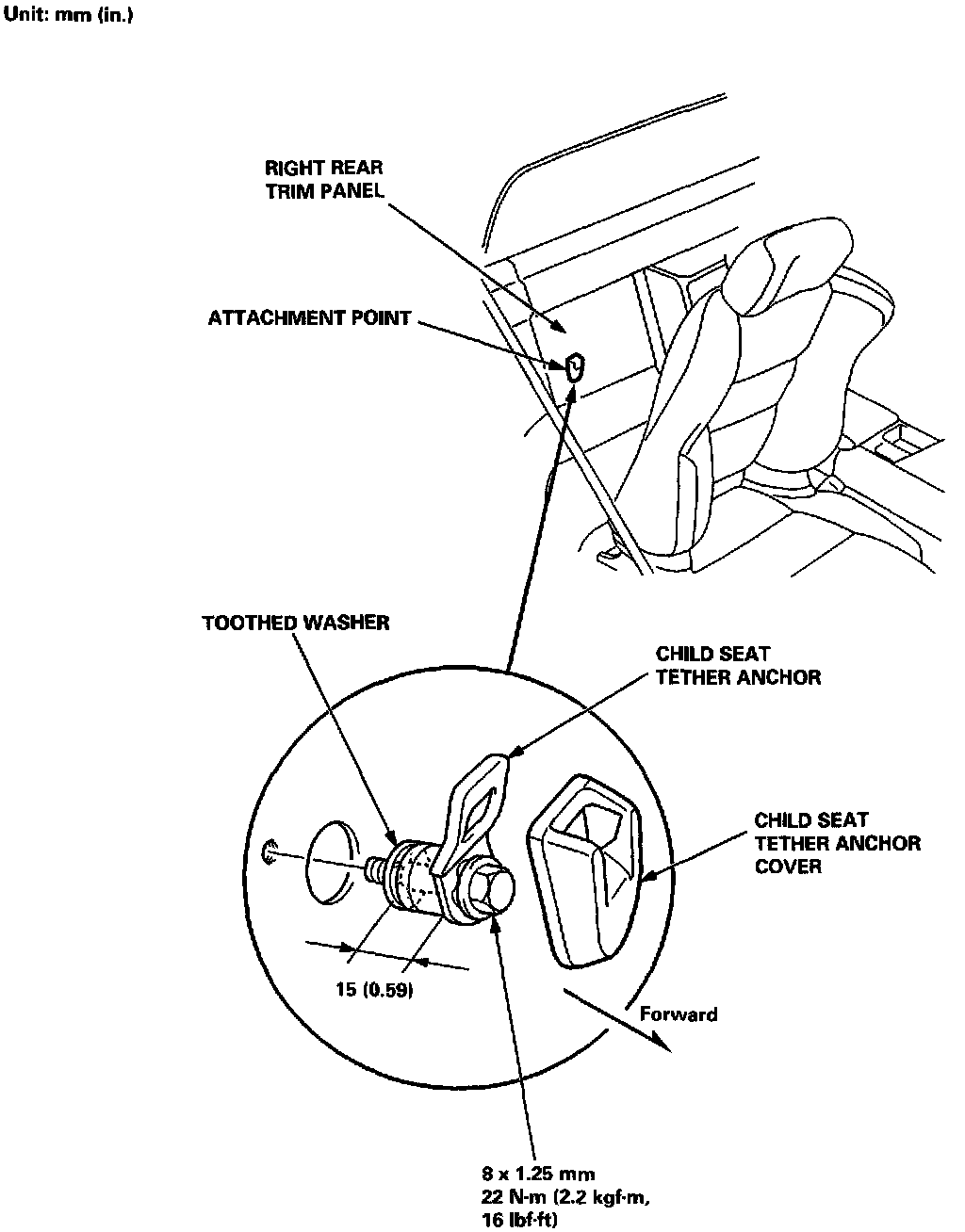

Child Seat Tether Anchor Removal/Installation

An attachment point is provided for a seat mounted child restraint system that uses a top tether. The attachment point is located on the right rear trim panel behind the passenger's seat-back. The child seat tether anchor is installed on the right rear trim panel. The child seat tether anchor is covered with the child seat tether anchor cover.






NOTE:
- Do not remove the toothed washer from the child seat tether anchor. Use the child seat tether anchor with the toothed washer attached to it.
- When installing a child seat on the passenger's seat, follow the instructions of the manufacturer of the child seat.
