Refueling Control Valve: Service and Repair




1. Remove the fuel tank.

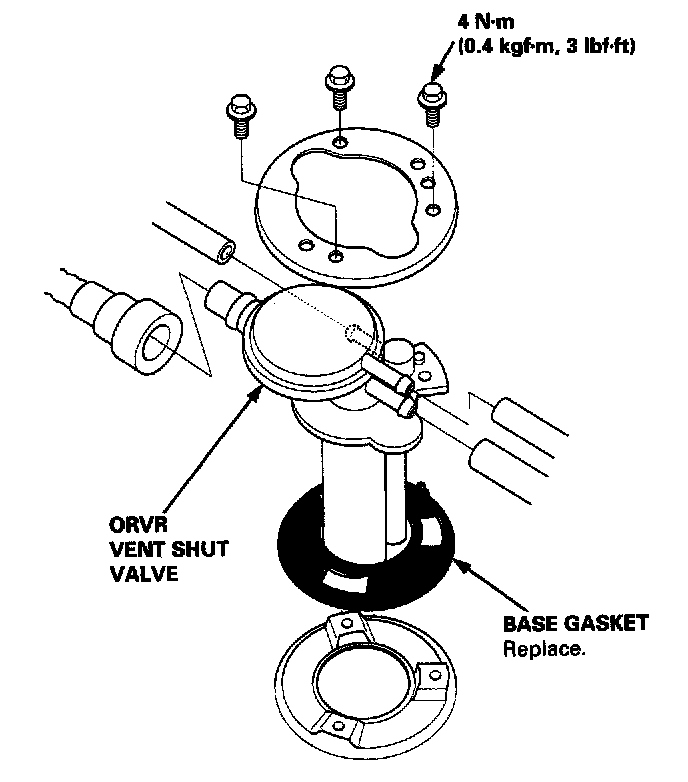

2. Remove the ORVR vent shut valve from the fuel tank.
3. Install parts in the reverse order of removal.
