Recirculation Control Motor

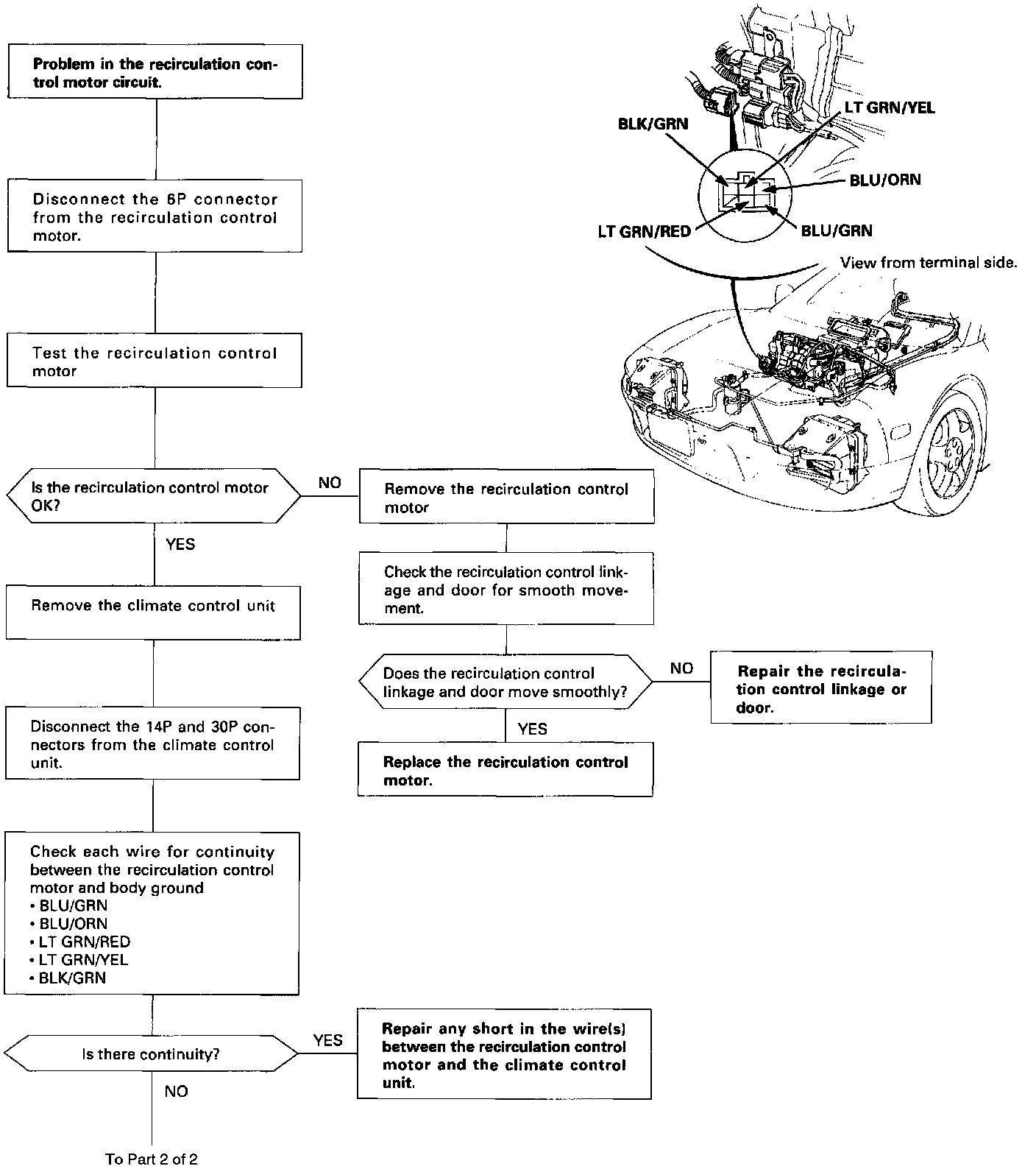

Flowchart-Recirculation Control Motor (Part 1 Of 2):

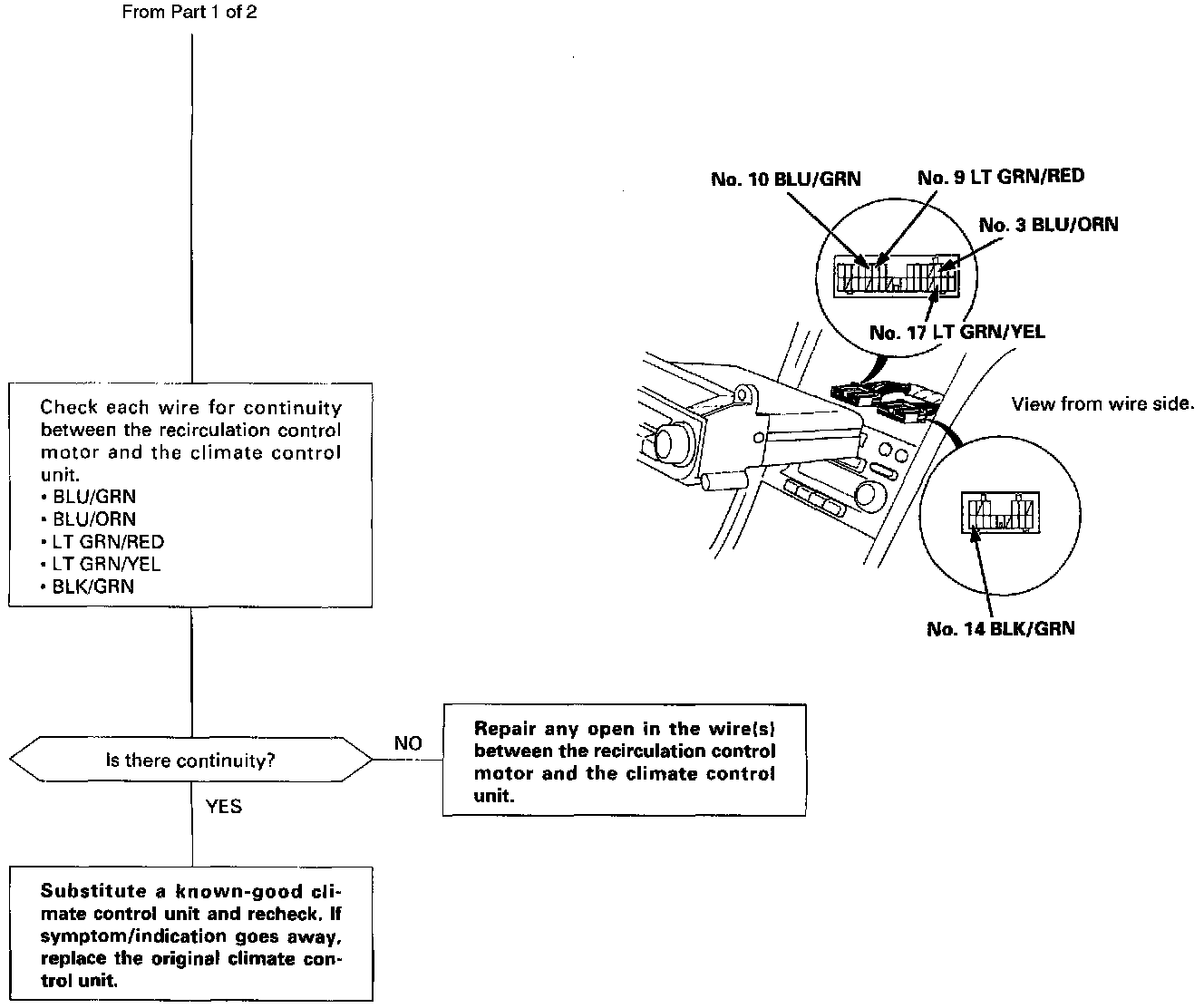

Flowchart-Recirculation Control Motor (Part 2 Of 2):

Self-diagnosis indicator light H comes on: Indicates a problem in the recirculation control motor circuit. Use a digital multimeter (KS-AHM32-003) to check it.

The recirculation control motor regulates the fresh/recirc door according to output from the climate control unit.

Recirculation Control Motor-Test:

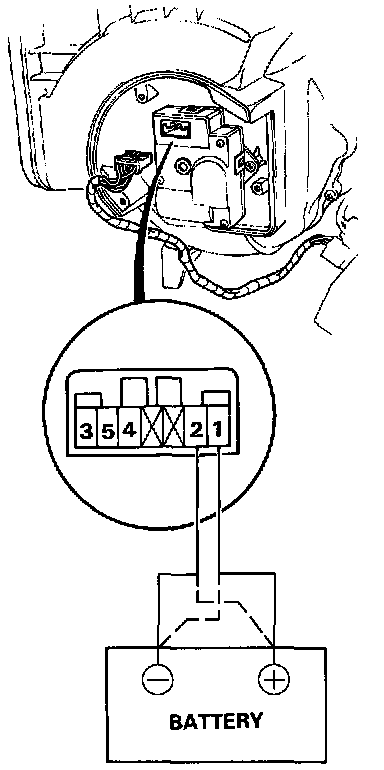

1. Connect battery power to the No. 1 terminal of the recirculation control motor, then connect ground to the No. 2 terminal; the recirculation control motor should run, and stop at REC.
If it doesn't, reverse the connections; the recirculation control motor should run, and stop at FRE.

NOTE: If the recirculation control motor does not run, remove it, and check the recirculation control linkage and door for smooth movement. If the recirculation control linkage and door move smoothly, replace the recirculation control motor.

Recirculation Control Motor-Test:

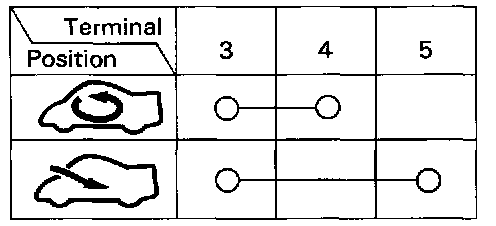

2. Check for continuity between the terminals of the recirculation control motor according to the table.
