Recirculation Control Motor

1. Remove the blower unit.

Recirculation Control Motor-Replacement:

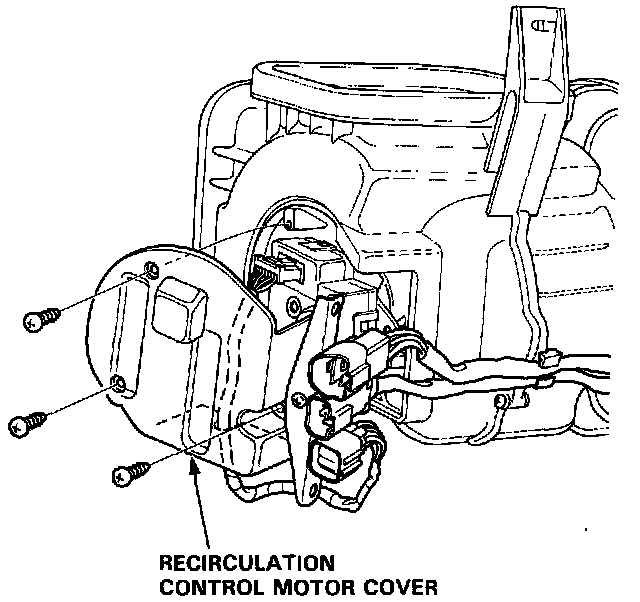

2. Remove the three screws and the recirculation control motor cover from the blower unit.

Recirculation Control Motor-Replacement:

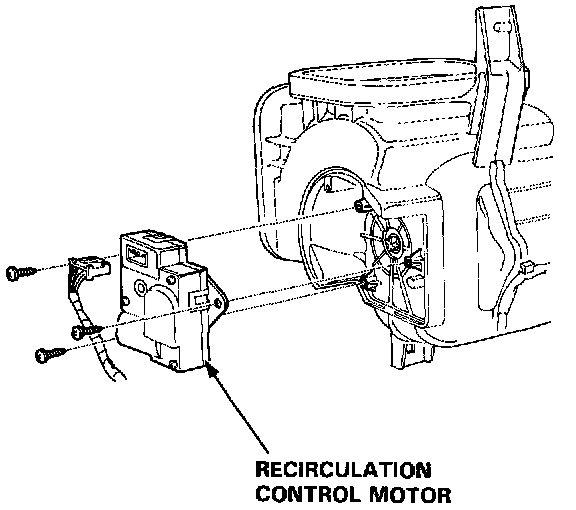

3. Remove the three screws and the recirculation control motor.
4. Install the recirculation control motor in the reverse order of removal. Then apply battery voltage, and watch the door movement.
- Make sure that the recirculation door moves smoothly without binding.
- Make sure the motor doesn't pull the door too far.
