Front/Rear Speaker Replacement

Front speaker:
1. Remove the door panel.

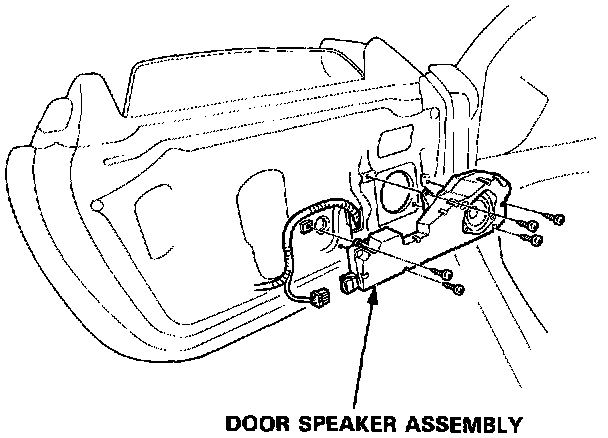

Front Speaker Replacement:




2. Remove the door speaker assembly from the door panel by removing the five screws.

Rear speaker:
1. Remove the speaker grille.

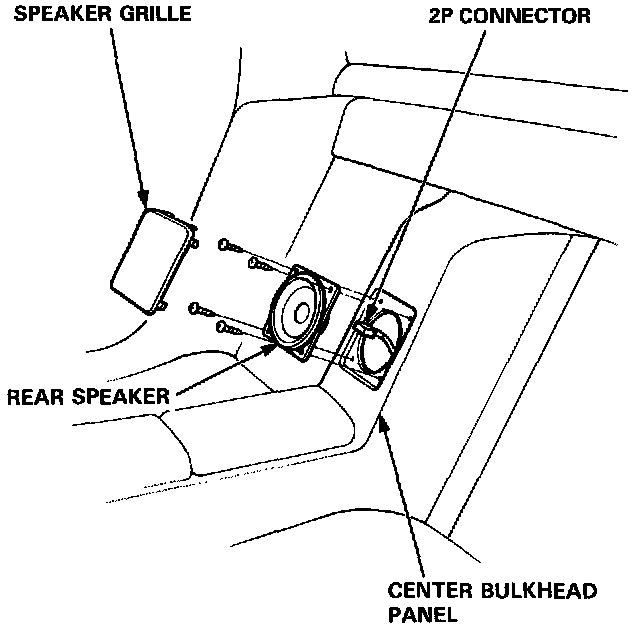

Rear Speaker Replacement:




2. Remove the four screws, then disconnect the 2P connector from the speaker.
