Foot Well Bass Speaker Replacement

1. Pull back the carpet on the passenger's side.

Foot Well Bass Speaker Replacement:

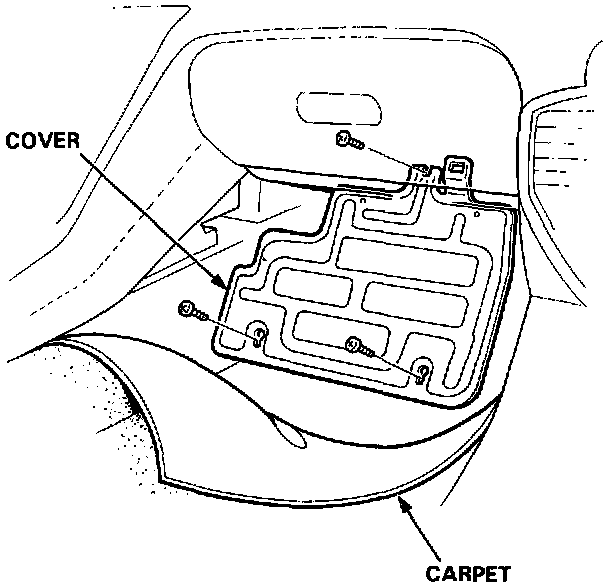

2. Remove the foot well bass speaker cover.

Foot Well Bass Speaker Replacement:

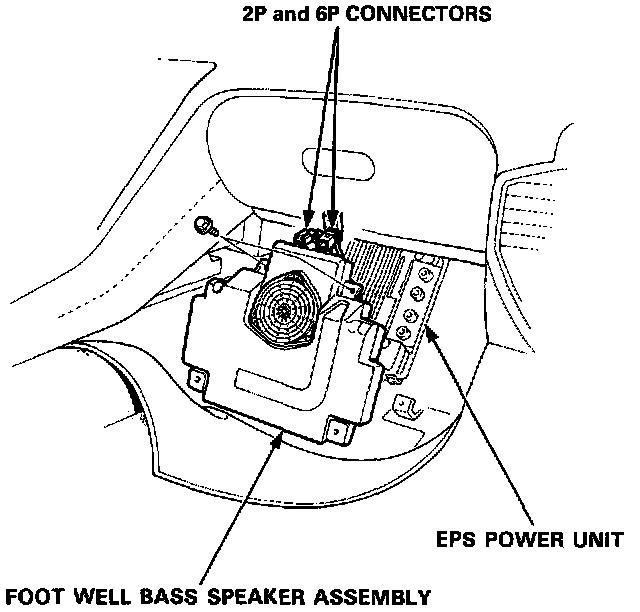

3. Disconnect the 2P and 6P connectors, then remove the two bolts, and remove the foot well bass speaker assembly.
