Home >> Acura >> 2000 >> Integra GS-R Sedan L4-1797cc 1.8L DOHC (VTEC) MFI >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Testing and Inspection >> Alternator and Regulator Circuit Test

Alternator and Regulator Circuit Test

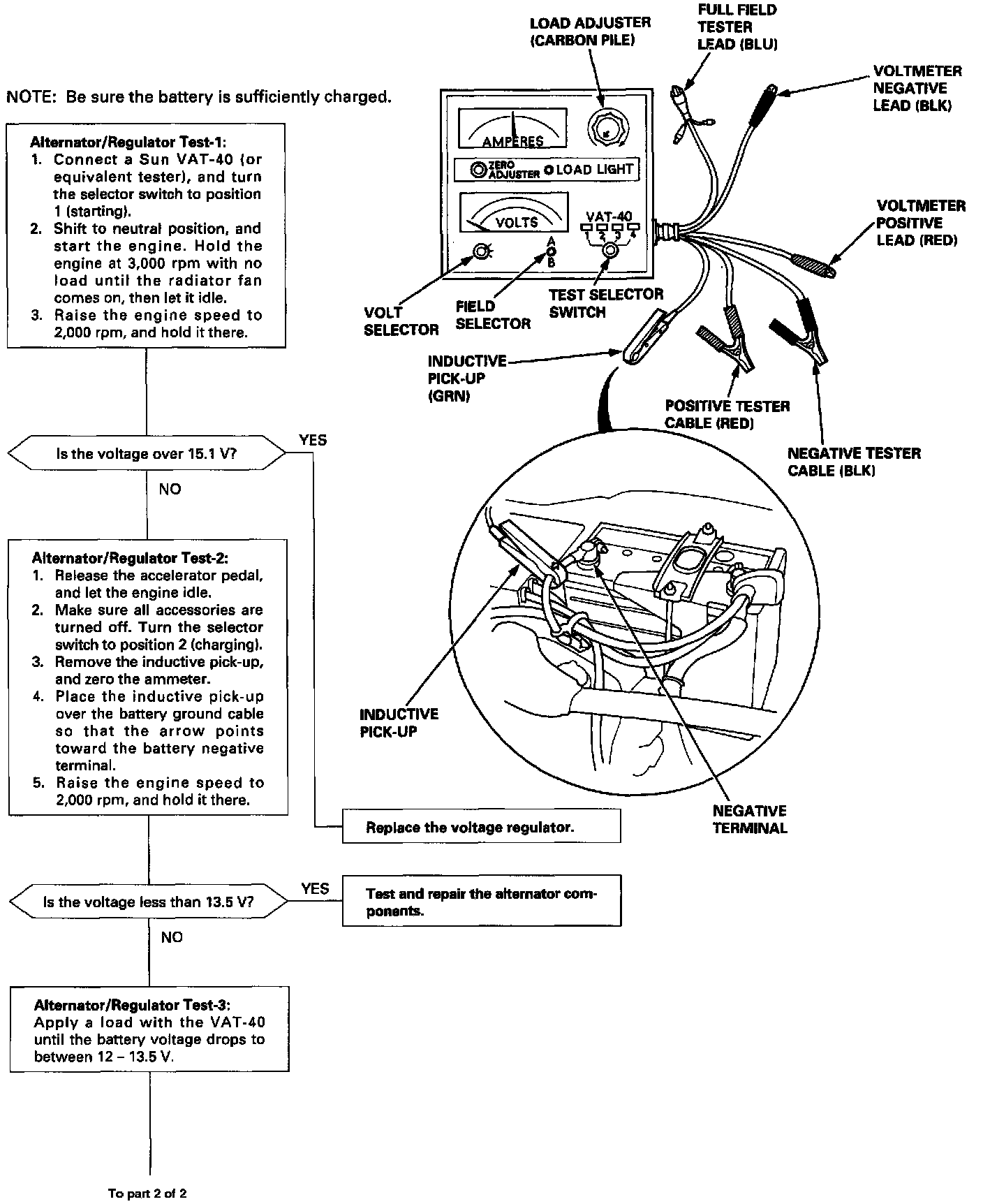

Alternator / Regulator Test (1 Of 2):

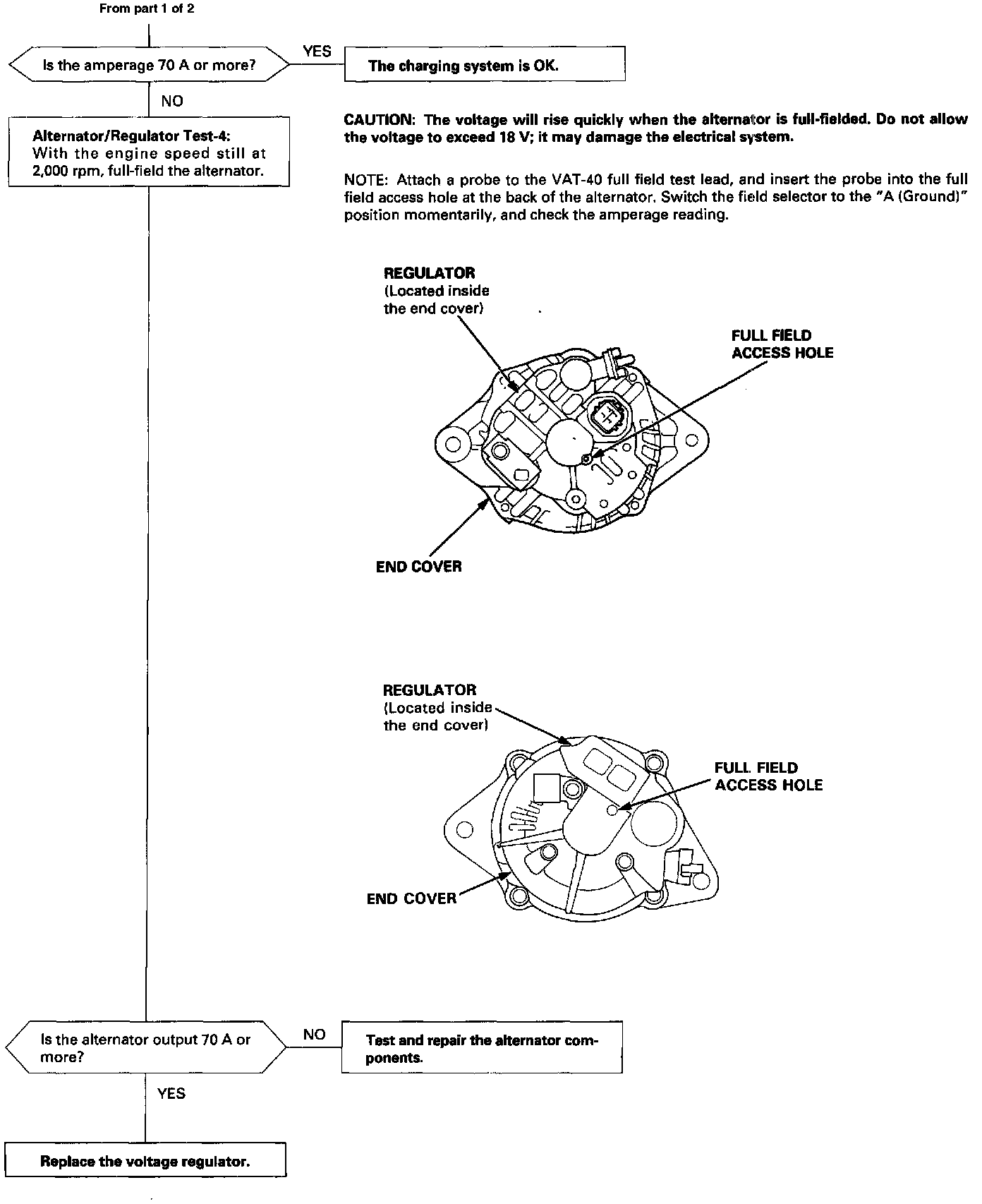

Alternator / Regulator Test (2 Of 2):
